Lowest0.94:1
Highest4.55:1
Total range485%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×28; rear size isn’t listed.
Velopedia Bicycle Archive

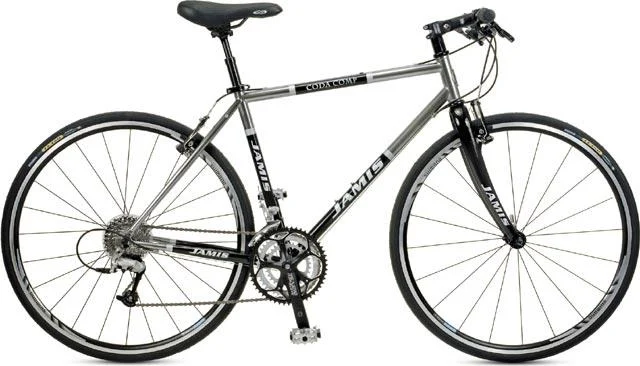

2009 Jamis Coda Comp
Original specifications: Shimano Deore LX · 9-speed rear derailleur · 700c wheels · 24.3 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #18268- Model year
- 2009
- Category
- Road
- Original MSRP
- $950.00
- Sizes
- 16", 17.5", 19.5", 21.5", 23"
- Colors
- Steel/Nickel
- Weight
- 24.3 lb
- In this record
- 24 specifications · archived image · original MSRP
Model history 8 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Steel/Nickel
- Frame
- Reynolds 520 Butted Chromoly
- Original equipment
- Road Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 520 Butted Chromoly · Road Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 520 Butted Chromoly |
| Fork Material | Carbon fiber/carbon steerer, aero crown |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano SL-R440 |
| Front Derailleur | Shimano R453 |
| Rear Derailleur | Shimano LX |
| Crankset | FSA Vero Triple, 30/39/50 teeth |
| Bottom Bracket | FSA Powerdrive |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC Z9000 |
| Pedals | Alloy Platform |
Brakes
| Brakes | Avid Single Digit 3 brakes, Avid FR-5 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey LB |
|---|---|
| Handlebar | Ritchey Comp flat |
| Handlebar Extensions | Not included |
| Stem | NVO adjustable |
| Saddle | Selle San Marco Elba |
| Seatpost | Suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Formula Shawla 220 |
|---|---|
| Rims | Formula Shawla 220, 24-hole/28-hole |
| Front Tire | 700 x 28c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
SRAM PG-950
Retailer offers
SRAM PG-950 Cassette 9 Speed, 11-32T
Model match
SRAM PG-950 on eBaySponsored links
700 x 28c Vittoria Zaffiro
Retailer offers
Vittoria Zaffiro Pro V Clincher Tire Black, 700x28
700x28c
Model match
Other replacement options (4)
Vittoria Zaffiro Pro V Clincher Tire Tan/Black/Black, 700x28
700x28c
Model match
Vittoria Zaffiro V Wire Bead Tire Black, 700x28
700x28c
Model match
Vittoria Zaffiro EVO V G2.0 Tire Black, 700x28
700x28c
Model match
Specialized SW Mondo 2Bliss Tire Black, 700x28
700x28c
Replacement option
Vittoria Zaffiro on eBaySponsored links
Suspension
27.2mm diameter
Retailer offers
Cane Creek Thudbuster ST Seatpost Black, 27.2mm
Replacement option
More parts (8)Fewer parts
FSA Powerdrive
FSA Vero Triple
30/39/50 teeth
Shimano LX
Ritchey Comp flat
1 1/8" Ritchey LB
Formula Shawla 220
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 28c Vittoria Zaffiro
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- FSA Powerdrive
Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: · Carbon fiber/carbon steerer, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Road Mix · Shifters: Shimano SL-R440 · Front derailleur: Shimano R453 · Rear derailleur: Shimano LX · Crankset: FSA Vero Triple, 30/39/50 teeth · Bottom bracket: FSA Powerdrive · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC Z9000
Brakes
Inspect the brakes →Archived: Brakes: Avid Single Digit 3 brakes, Avid FR-5 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Formula Shawla 220, 24-hole/28-hole · Hubs: Formula Shawla 220 · Front tire: 700 x 28c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" Ritchey LB · Handlebar: Ritchey Comp flat · Stem: NVO adjustable · Seatpost: Suspension, 27.2mm diameter · Saddle: Selle San Marco Elba · Pedals: Alloy Platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
