Velopedia Bicycle Archive

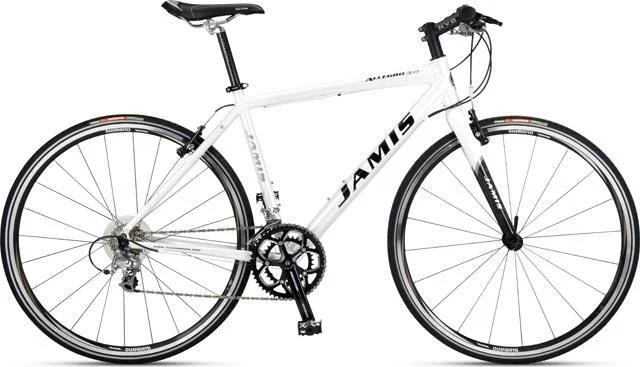

2009 Jamis Allegro 3.0

Original specifications: Shimano 105 · 10-speed rear derailleur · 700c wheels · 22.1 lb published weight.

Share owner experience

At a glance

Archive #18290

Model year: 2009
Category: Road
Original MSRP: $1,100.00
Sizes: 14.5", 16", 17.5", 19.5", 21.5", 23"
Colors: Machine Silver
Weight: 22.1 lb
In this record: 24 specifications · archived image · original MSRP

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors: Machine Silver
Frame: 6061 Triple Butted Aluminum
Original equipment: Road Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061 Triple Butted Aluminum · Road Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

6 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

14.5"16"17.5"19.5"21.5"23"

Published colors

Machine Silver

View 6 archived size/color combinations

Size	Color
14.5"	Machine Silver
16"	Machine Silver
17.5"	Machine Silver
19.5"	Machine Silver
21.5"	Machine Silver
23"	Machine Silver

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	6061 Triple Butted Aluminum
Fork Material	Carbon fiber/carbon fiber steerer, aero crown

Drivetrain

Component Group	Road Mix
Shifters	Shimano SL-R770
Front Derailleur	Shimano R770
Rear Derailleur	Shimano 105
Crankset	FSA Vero Compact, 34/50 teeth
Bottom Bracket	FSA Powerdrive
Cassette	Shimano CS-5600
Rear Cogs	10-speed, 11 - 25 teeth
Chain	SRAM PC-1070
Pedals	Alloy Platform

Brakes

Brakes	Tektro RX-1.0 mini V brakes, Tektro RX-1.0 levers

Cockpit & Contact Points

Headset	1 1/8" integrated
Handlebar	Jamis alloy flat bar
Handlebar Extensions	Not included
Stem	NVO adjustable
Saddle	Selle San Marco Ischia
Seatpost	Jamis Carbon Fiber Micro adjust, 27.2mm diameter

Wheels & Tires

Hubs	Shimano R500
Rims	Shimano R500, 20-hole/24-hole
Front Tire	700 x 28c Vittoria Randonneur
Wheel Size	700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

All published sizes50/34T · 11–25T · 10-speed

Lowest1.36:1 Highest4.55:1 Total range334%

Estimated speed At 90 RPM Lowest gear9.7 mph Highest gear32.5 mph

Uses front tire 700C×28; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

700 x 28c Vittoria Randonneur

Search Amazon Search eBay

Retailer offers

Vittoria Zaffiro Pro V Clincher Tire Black, 700x28

700x28c

Replacement option

Competitive Cyclist ↗$31.21

Other replacement options (1)

Specialized SW Mondo 2Bliss Tire Black, 700x28

700x28c

Replacement option

Backcountry ↗$67.45

Seatpost · Original

Jamis Carbon Fiber Micro adjust

27.2mm diameter

Search Amazon Search eBay

Retailer offers

Race Face Ride XC Seatpost Black, 27.2x375mm

Replacement option

Competitive Cyclist ↗$38.99

Backcountry ↗$38.99

Chain · Original

SRAM PC-1070

Search Amazon Search eBay

More parts (7)Fewer parts

Cassette · Original

Shimano CS-5600

Search Amazon Search eBay

Brake pads · Original

Tektro RX-1.0 mini V brakes

Tektro RX-1.0 levers

Search Amazon Search eBay

Bottom bracket · Original

FSA Powerdrive

Search Amazon Search eBay

Crankset · Original

FSA Vero Compact

34/50 teeth

Search eBay

Rear derailleur · Original

Shimano 105 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Search eBay

Shifters · Original

Shimano SL-R770

Search eBay

Hubs · Original

Shimano R500

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 700 x 28c Vittoria Randonneur
Drivetrain: 10-speed
Seatpost diameter: 27.2 mm
Bottom bracket / shell: FSA Powerdrive

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · Carbon fiber/carbon fiber steerer, aero crown

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Drivetrain

Check drivetrain wear →

Archived: Group: Road Mix · Shifters: Shimano SL-R770 · Front derailleur: Shimano R770 · Rear derailleur: Shimano 105 · Crankset: FSA Vero Compact, 34/50 teeth · Bottom bracket: FSA Powerdrive · Cassette: Shimano CS-5600 · Rear cogs: 10-speed, 11 - 25 teeth · Chain: SRAM PC-1070

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro RX-1.0 mini V brakes, Tektro RX-1.0 levers

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 700c wheels · Rims: Shimano R500, 20-hole/24-hole · Hubs: Shimano R500 · Front tire: 700 x 28c Vittoria Randonneur

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1 1/8" integrated · Handlebar: Jamis alloy flat bar · Stem: NVO adjustable · Seatpost: Jamis Carbon Fiber Micro adjust, 27.2mm diameter · Saddle: Selle San Marco Ischia · Pedals: Alloy Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
