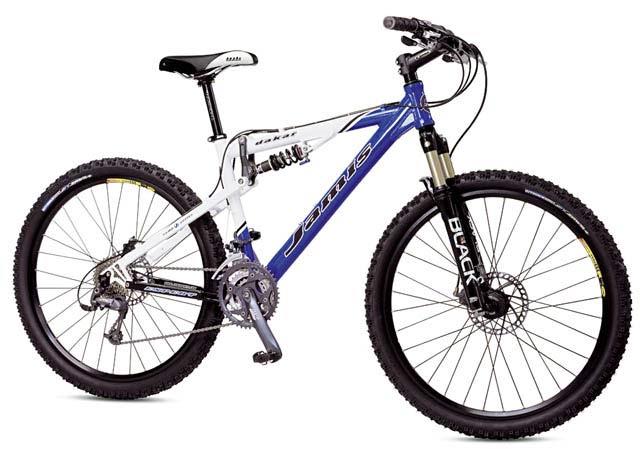

2002 Jamis Dakar Expert
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,799.95
- Sizes
- 13", 15", 17", 19", 21"
- Colors
- Blue/White
- Weight
- 28.7
- Archive ID
- 36899
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, double-butted w/replaceable derailleur hanger |
| Fork | Answer Manitou Black Super Air, 4.0" travel |
| Fork Material | Aluminum, single triple-clamp crown |
| Rear Shock | Fox Vanilla RL, 4.0" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT RapidFire SL |
| Front Derailleur | Shimano Deore LX, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano XTR |
| Crankset | Shimano Deore LX, 22/32/44 teeth |
| Bottom Bracket | Shimano BB-ES70, 113mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG72, 1/2 x 3/32" |
| Pedals | Time Alium |
Brakes
| Brakes | Hayes HFX Magnesium Hydraulic brakes, Hayes levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Cane Creek ZS-2 |
|---|---|
| Handlebar | Syntace VRO |
| Handlebar Extensions | Not included |
| Stem | Syntace VRO |
| Saddle | Koski Contour Team |
| Seatpost | Thomson Elite, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano Deore XT Disc |
|---|---|
| Rims | Mavic X223 Disc, 32-hole |
| Spokes | WTB stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.00" Hutchinson Scorpion |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
