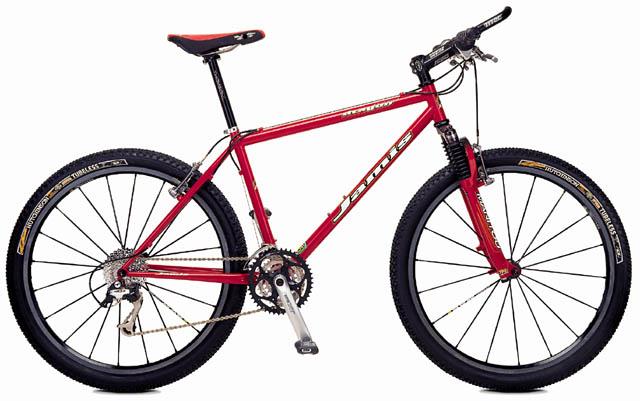

2000 Jamis Dragon
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,400.00
- Sizes
- 11", 13", 15", 17", 19", 21"
- Colors
- Flame Red
- Weight
- 23.5
- Archive ID
- 90111
Current market
Checking current listings…Frameset
| Frame Construction | Brazed/welded |
|---|---|
| Frame Material | Reynolds 853 |
| Fork | Answer Manitou MARS CL, 3.15" travel |
| Fork Material | Carbon fiber/magnesium, triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | SRAM 9.0 SL Half Pipe |
| Front Derailleur | Shimano Deore XT top-swing, top-pull/clamp-on 28.6mm |
| Rear Derailleur | SRAM 9.0 SL Short Cage |
| Crankset | Shimano Deore LX, 22/32/44 teeth |
| Bottom Bracket | Shimano BB-ES70, 113mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG92, 1/2 x 3/32" |
| Pedals | Time ATAC |
Brakes
| Brakes | Avid SD-Mag brakes, Avid SD-Mag levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cane Creek C2 |
|---|---|
| Handlebar | Titec Enduro |
| Handlebar Extensions | Titec Shorty |
| Stem | Profile Stiffy |
| Saddle | SDG Ventura Comp, chromoly rails |
| Seatpost | Thomson Elite, 27.2mm diameter |
Wheels & Tires
| Hubs | Mavic Crossmax UST |
|---|---|
| Rims | Mavic Crossmax UST, 18-hole/20-hole |
| Spokes | Mavic stainless steel, 2.0mm double-butted |
| Spoke Nipples | Alloy nipples |
| Front Tire | 26 x 1.85" Hutchinson Python Tubeless |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
