Velopedia Bicycle Archive

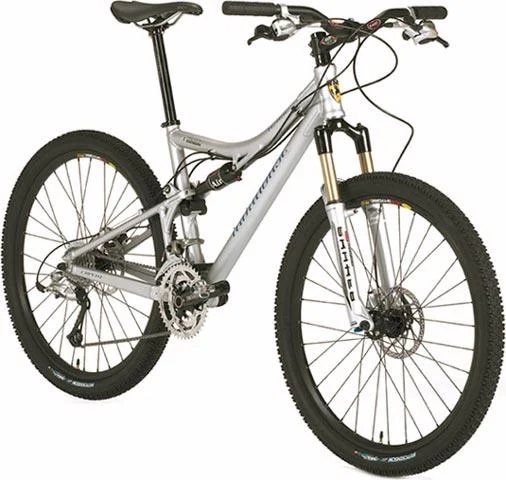

2007 Iron Horse Azure Expert

Original specifications: Shimano Deore XT drivetrain · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #94853
Model year
2007
Category
Mountain
Sizes
15", 17", 19", 21"
In this record
27 specifications · archived image
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2007 archived details

Frame
Aluminum
Original equipment
Shimano Deore XT

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum · Shimano Deore XT · 26" wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

15"17"19"21"
View 4 archived size/color combinations
SizeColor
15"—
17"—
19"—
21"—

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialAluminum
ForkFox 32FR , 100mm travel
Fork MaterialAluminum/magnesium, single crown
Rear ShockFox Float R Air, 3.5" travel

Drivetrain

Component GroupShimano Deore XT
ShiftersShimano Deore XT RapidFire
Front DerailleurShimano Deore XT
Rear DerailleurShimano Deore XT
CranksetRace Face Evolve XC X-Type, 22/32/44 teeth
Bottom BracketRace Face Evolve X-Type
BB Shell Width73mm English
Rear Cogs9-speed, 11 - 34 teeth
ChainSRAM PC-971 with Power Link
PedalsCrank Brothers Candy C

Brakes

BrakesAvid Juicy 7 W/ 6" Rotor brakes, Avid Juicy 7 levers

Cockpit & Contact Points

Headset1 1/8" integrated FSA Orbit Z, Zero Stack
HandlebarRitchey Pro Rizer
Handlebar ExtensionsNot included
StemRitchey Pro V2
SaddleSelle Italia SLR XC w/ Vanox Rails
SeatpostThomson Elite, 27.2mm diameter

Wheels & Tires

HubsDT Swiss 340 Disc
RimsDT Swiss XM 4.1D, 32-hole
SpokesDT Swiss Competition stainless steel, 14/15/14ga. (2.0/1.8/2.0mm)
Front Tire26 x 2.10" Maxxis Crossmark 120TPI
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–34T · 9-speed
Lowest0.65:1 Highest4.00:1 Total range618%
Estimated speed At 90 RPM Lowest gear4.5 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Seatpost · Original
Thomson Elite

27.2mm diameter

Retailer offers
Chain · Original
SRAM PC-971 with Power Link
Front tire · Original
26 x 2.10" Maxxis Crossmark 120TPI
More parts (10)Fewer parts
Bottom bracket · Original
Race Face Evolve X-Type
Saddle · Original
Selle Italia SLR XC w/ Vanox Rails
Crankset · Original
Race Face Evolve XC X-Type

22/32/44 teeth

Front derailleur · Original
Shimano Deore XT
Rear derailleur · Original
Shimano Deore XT
Shifters · Original
Shimano Deore XT RapidFire
Handlebar · Original
Ritchey Pro Rizer
Stem · Original
Ritchey Pro V2
Headset · Original
1 1/8" integrated FSA Orbit Z

Zero Stack

Rims · Original
DT Swiss XM 4.1D

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" Maxxis Crossmark 120TPI
Drivetrain
9-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Race Face Evolve X-Type · 73mm English
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Fox 32FR , 100mm travel · Aluminum/magnesium, single crown

Archived: Fork: Fox 32FR , 100mm travel · Rear shock: Fox Float R Air, 3.5" travel

Archived: Group: Shimano Deore XT · Shifters: Shimano Deore XT RapidFire · Front derailleur: Shimano Deore XT · Rear derailleur: Shimano Deore XT · Crankset: Race Face Evolve XC X-Type, 22/32/44 teeth · Bottom bracket: Race Face Evolve X-Type · Rear cogs: 9-speed, 11 - 34 teeth · Chain: SRAM PC-971 with Power Link

Archived: Brakes: Avid Juicy 7 W/ 6" Rotor brakes, Avid Juicy 7 levers

Archived: Wheel size: 26" wheels · Rims: DT Swiss XM 4.1D, 32-hole · Hubs: DT Swiss 340 Disc · Front tire: 26 x 2.10" Maxxis Crossmark 120TPI

Controls and contact points

Archived: Headset: 1 1/8" integrated FSA Orbit Z, Zero Stack · Handlebar: Ritchey Pro Rizer · Stem: Ritchey Pro V2 · Seatpost: Thomson Elite, 27.2mm diameter · Saddle: Selle Italia SLR XC w/ Vanox Rails · Pedals: Crank Brothers Candy C
