Uses front tire 26×2.35; rear size isn’t listed.
Velopedia Bicycle Archive

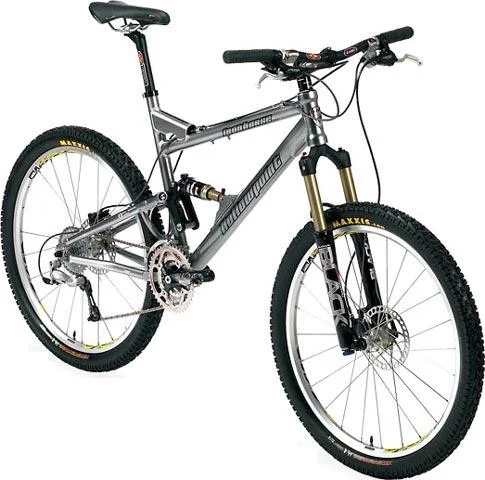

2004 Iron Horse Hollowpoint Expert
Original specifications: Shimano Deore XT · 9-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #31849- Model year
- 2004
- Category
- Mountain
- Original MSRP
- $2,599.99
- Sizes
- 15", 17", 19", 21"
- Colors
- Mirror Silver
- Geometry
- Legacy reference
- In this record
- 25 specifications · archived image · original MSRP · geometry
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2004 archived details
- Published colors
- Mirror Silver
- Frame
- 7005 aluminum, double butted
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum, double butted · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, double butted |
| Fork | Answer Manitou Black Platinum, 90-120mm adjustable |
| Rear Shock | Answer Manitou Swinger Air, 4.5" |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT |
| Front Derailleur | Shimano Deore XT |
| Rear Derailleur | Shimano Deore XT |
| Crankset | TruVativ Stylo Team, 22/32/44 teeth |
| Bottom Bracket | TruVativ SL ISIS |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano HG-73, 1/2 x 3/32" |
| Pedals | Shimano M540 |
Brakes
| Brakes | Hayes HFX-9 Hydraulic Disc brakes, Hayes HFX-9 XC levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Orbit Z |
|---|---|
| Handlebar | Easton EA50 |
| Stem | Easton EA50 |
| Saddle | Fi'zi:k Nisene, chrome-moly rails |
| Seatpost | Easton EA50, 27.0mm diameter |
Wheels & Tires
| Hubs | Mavic Crossland Argent |
|---|---|
| Rims | Mavic Crossland Argent |
| Spokes | Mavic stainless steel, 14ga. (2.0mm) straight pull |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.35" Maxxis Hansventure |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 3 measurements
| Measurement | Legacy reference |
|---|---|
| Head-tube angle | 71° |
| Seat-tube angle | 71.4° |
| Chainstay / rear center | 429.3 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
More parts (10)Fewer parts
chrome-moly rails
27.0mm diameter
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.35" Maxxis Hansventure
- Drivetrain
- 9-speed
- Seatpost diameter
- 27 mm
- Bottom bracket / shell
- TruVativ SL ISIS
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Answer Manitou Black Platinum, 90-120mm adjustable
Suspension
Evaluate the suspension →Archived: Fork: Answer Manitou Black Platinum, 90-120mm adjustable · Rear shock: Answer Manitou Swinger Air, 4.5"
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore XT · Front derailleur: Shimano Deore XT · Rear derailleur: Shimano Deore XT · Crankset: TruVativ Stylo Team, 22/32/44 teeth · Bottom bracket: TruVativ SL ISIS · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano HG-73, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Hayes HFX-9 Hydraulic Disc brakes, Hayes HFX-9 XC levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Mavic Crossland Argent · Hubs: Mavic Crossland Argent · Front tire: 26 x 2.35" Maxxis Hansventure
Controls and contact points
Archived: Headset: 1 1/8" FSA Orbit Z · Handlebar: Easton EA50 · Stem: Easton EA50 · Seatpost: Easton EA50, 27.0mm diameter · Saddle: Fi'zi:k Nisene, chrome-moly rails · Pedals: Shimano M540
