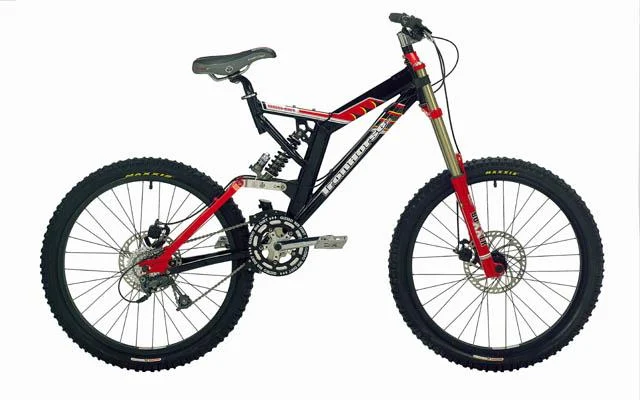

2001 Iron Horse SGS-DH

Original specifications: Shimano XTR · 9-speed · mechanical rear derailleur · 26" wheels · 41 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #90911
Model year
2001
Category
Mountain
Original MSRP
$3,600.00
Sizes
S, M, L
Colors
Black, Red
Weight
41 lb
Geometry
Legacy reference
In this record
28 specifications · archived image · original MSRP · geometry
Original build7005 aluminum w/replaceable derailleur hanger · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

3 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

BlackRed

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum w/replaceable derailleur hanger
ForkRock Shox Boxxer, 7.0" travel
Fork MaterialAluminum/magnesium, double triple-clamp crown
Rear ShockFox Vanilla RC, 7.0" travel

Drivetrain

Component GroupMountain Mix
ShiftersShimano Deore XT RapidFire SL
Rear DerailleurShimano XTR SGS
CranksetProfile 3-peice CRMO, 42 teeth
Bottom BracketProfile sealed bearing
BB Shell Width68mm English
Rear Cogs9-speed, 11 - 32 teeth
ChainShimano CN-HG72, 1/2 x 1/8"
PedalsShimano PD-MX30

Brakes

BrakesHayes hydraulic disc brakes, Hayes levers

Cockpit & Contact Points

Headset1 1/8" threadless WTB Momentum grease guard
HandlebarAzonic PDW
Handlebar ExtensionsNot included
StemAzonic Shorty
SaddleIron Horse
SeatpostAzonic Heavy Duty, 29.8mm diameter

Wheels & Tires

HubsRingle ABBAH SOS DH
RimsSun Rims Mammoth, 32-hole
SpokesDT stainless steel, 14g straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 2.50 Maxxis Mobster
Rear Tire26 x 2.50" Maxxis Mobster
Wheel Size26" wheels

Geometry

Legacy reference · 3 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 3 measurements
MeasurementLegacy reference
Top tube558.8 mm
Head-tube angle68°
Seat-tube angle68°

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 11–32T · 9-speed
Lowest1.31:1 Highest3.82:1 Total range291%
Estimated speed At 90 RPM Lowest gear9.5 mph Highest gear27.6 mph

Rear tire: 26×2.5.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano CN-HG72

1/2 x 1/8"

Front tire · Original
26 x 2.50 Maxxis Mobster
Rear tire · Original
26 x 2.50" Maxxis Mobster
More parts (5)Fewer parts
Pedals · Original
Shimano PD-MX30
Rear derailleur · Original
Shimano XTR SGS
Shifters · Original
Shimano Deore XT RapidFire SL
Seatpost · Original
Azonic Heavy Duty

29.8mm diameter

Headset · Original
1 1/8" threadless WTB Momentum grease guard

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 26 x 2.50 Maxxis Mobster, Rear: 26 x 2.50" Maxxis Mobster
Drivetrain
9-speed
Seatpost diameter
29.8 mm
Bottom bracket / shell
Profile sealed bearing · 68mm English
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Rock Shox Boxxer, 7.0" travel · Aluminum/magnesium, double triple-clamp crown

Archived: Fork: Rock Shox Boxxer, 7.0" travel · Rear shock: Fox Vanilla RC, 7.0" travel

Archived: Group: Mountain Mix · Shifters: Shimano Deore XT RapidFire SL · Rear derailleur: Shimano XTR SGS · Crankset: Profile 3-peice CRMO, 42 teeth · Bottom bracket: Profile sealed bearing · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano CN-HG72, 1/2 x 1/8"

Archived: Brakes: Hayes hydraulic disc brakes, Hayes levers

Archived: Wheel size: 26" wheels · Rims: Sun Rims Mammoth, 32-hole · Hubs: Ringle ABBAH SOS DH · Front tire: Front: 26 x 2.50 Maxxis Mobster, Rear: 26 x 2.50" Maxxis Mobster

Controls and contact points

Archived: Headset: 1 1/8" threadless WTB Momentum grease guard · Handlebar: Azonic PDW · Stem: Azonic Shorty · Seatpost: Azonic Heavy Duty, 29.8mm diameter · Saddle: Iron Horse · Pedals: Shimano PD-MX30
