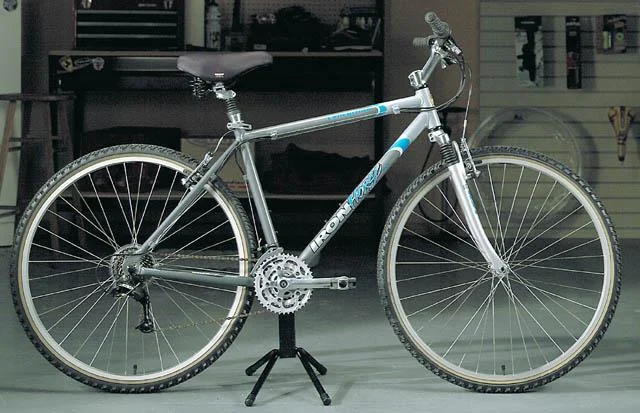

1999 Iron Horse Expedition

Original specifications: Mountain Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #86404
Model year
1999
Category
Hybrid
Original MSRP
$429.00
Sizes
17", 19", 21", 23"
Colors
Silver/XTR Grey Fade
In this record
27 specifications · archived image · original MSRP
Model history 1 other year

Browse other years

Compare side by side

Identification clues

1999 archived details

Published colors
Silver/XTR Grey Fade
Frame
6061-T6 aluminum w/replaceable derailleur hanger
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061-T6 aluminum w/replaceable derailleur hanger · Mountain Mix · 700c wheels

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

17"19"21"23"

Published colors

Silver/XTR Grey Fade

Frameset

Frame ConstructionTIG-welded
Frame Material6061-T6 aluminum w/replaceable derailleur hanger
ForkRST 801, 1.8" travel
Fork MaterialAluminum/chromoly, unicrown crown

Drivetrain

Component GroupMountain Mix
ShiftersSRAM ESP 5.0
Front DerailleurSRAM ESP 5.0, top-pull/clamp-on 31.8mm
Rear DerailleurSRAM ESP 5.0
CranksetSR XR32, 22/32/42 teeth
Bottom BracketChin Haur CH-46, 110mm spindle
BB Shell Width68mm English
Rear Cogs8-speed, 11 - 30 teeth
ChainKMC Z-72, 1/2 x 3/32"
PedalsVictor VP-607

Brakes

BrakesChang Star linear-pull brakes, Chang Star aluminum levers

Cockpit & Contact Points

Headset1 1/8" threadless Aheadset STS
HandlebarHL aluminum riser
Handlebar ExtensionsNot included
StemTahoma Sonne IV
SaddleIron Horse lycra webspring
SeatpostKalloy SP-252 suspension, 30.4mm diameter

Wheels & Tires

HubsFront: Joy Tech OS aluminum, Q/R, Rear: Shimano Alivio
RimsSun Rims Z-19, 36-hole
SpokesShuhn Lih stainless steel, 2.0mm straight gauge
Spoke NipplesBrass nipples
Front Tire700 x 38c Kenda K-841A
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/32/22T · 11–30T · 8-speed
Lowest0.73:1 Highest3.82:1 Total range521%
Estimated speed At 90 RPM Lowest gear5.4 mph Highest gear28.1 mph

Uses front tire 700C×38; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z-72

1/2 x 3/32"

Front tire · Original
700 x 38c Kenda K-841A
Brake pads · Original
Chang Star linear-pull brakes

Chang Star aluminum levers

More parts (1)Fewer parts
Seatpost · Original
Kalloy SP-252 suspension

30.4mm diameter

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 38c Kenda K-841A
Drivetrain
8-speed
Seatpost diameter
30.4 mm
Bottom bracket / shell
Chin Haur CH-46, 110mm spindle · 68mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: RST 801, 1.8" travel · Aluminum/chromoly, unicrown crown

Archived: Fork: RST 801, 1.8" travel

Archived: Group: Mountain Mix · Shifters: SRAM ESP 5.0 · Front derailleur: SRAM ESP 5.0, top-pull/clamp-on 31.8mm · Rear derailleur: SRAM ESP 5.0 · Crankset: SR XR32, 22/32/42 teeth · Bottom bracket: Chin Haur CH-46, 110mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: KMC Z-72, 1/2 x 3/32"

Archived: Brakes: Chang Star linear-pull brakes, Chang Star aluminum levers

Archived: Wheel size: 700c wheels · Rims: Sun Rims Z-19, 36-hole · Hubs: Front: Joy Tech OS aluminum, Q/R, Rear: Shimano Alivio · Front tire: 700 x 38c Kenda K-841A

Controls and contact points

Archived: Headset: 1 1/8" threadless Aheadset STS · Handlebar: HL aluminum riser · Stem: Tahoma Sonne IV · Seatpost: Kalloy SP-252 suspension, 30.4mm diameter · Saddle: Iron Horse lycra webspring · Pedals: Victor VP-607
