2011 Haro Porter Comp

Original specifications: SRAM X5 · 9-speed · mechanical rear derailleur.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22258
Model year
2011
Category
Mountain
Sizes
Short, long
Colors
Gloss Black
In this record
24 specifications · 6 archived images
Original build6061 aluminum · Mountain Mix

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

shortlong

Published colors

Gloss Black
View 2 archived size/color combinations
SizeColor
shortGloss Black
longGloss Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame Material6061 aluminum
ForkMarzocchi Dirt Jumper 2, 100mm travel
Fork MaterialSingle

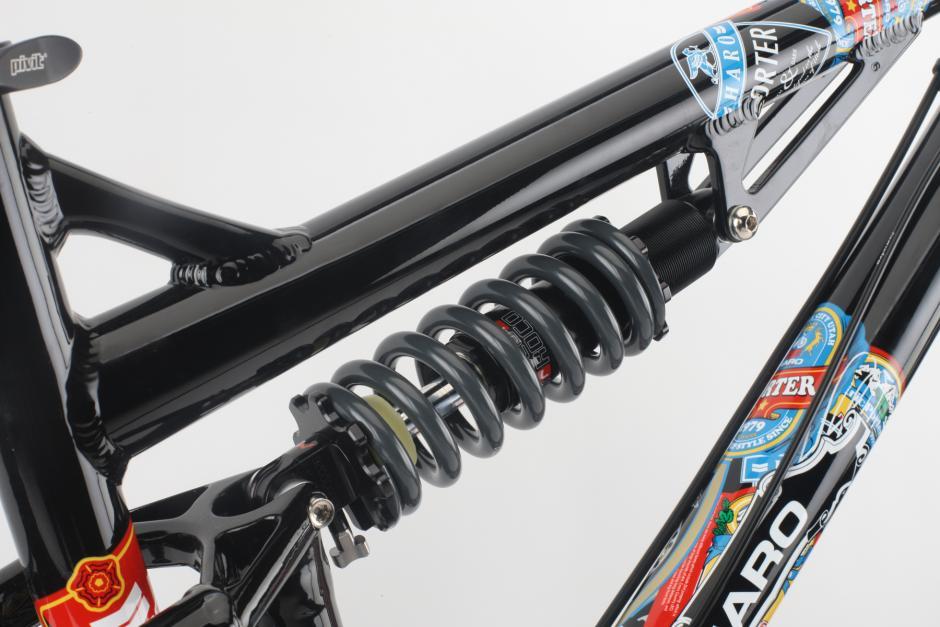

Rear ShockMarzocchi Coil R, 120mm travel

Drivetrain

Component GroupMountain Mix
Rear DerailleurSRAM X.5
CranksetTruvativ Ruktion 1.0, 34T teeth
CassetteSRAM PG-950
Rear Cogs9-speed, 11 - 34 teeth
ChainKMC Z72
PedalsPivit Platform w/Replaceable Pins

Brakes

BrakesPromax Homet brakes, Promax Homet levers

Cockpit & Contact Points

HeadsetRitchey LB+
HandlebarPivit Alloy Riser
Handlebar ExtensionsNot included
StemPivit Alloy
SaddleSDG Patriot I-Beam
SeatpostSDG I-Beam, 30.9mm diameter

Wheels & Tires

HubsPivit Disc Alloy
RimsWeinmann ZAC-19, 36-hole
SpokesStainless, 14ga. (2.0mm) butted
Front TireKenda Nevegal 2.35
Rear TireKenda Small Block 8

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Published build34T · 11–34T · 9-speed
Lowest1.00:1 Highest3.09:1 Total range309%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z72
Cassette · Original
SRAM PG-950
Saddle · Original
SDG Patriot I-Beam
More parts (3)Fewer parts
Rear derailleur · Original
SRAM X.5
Seatpost · Original
SDG I-Beam

30.9mm diameter

Headset · Original
Ritchey LB+

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: Kenda Nevegal 2.35, Rear: Kenda Small Block 8
Drivetrain
9-speed
Seatpost diameter
30.9 mm
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Marzocchi Dirt Jumper 2, 100mm travel · Single

Archived: Fork: Marzocchi Dirt Jumper 2, 100mm travel · Rear shock: Marzocchi Coil R, 120mm travel

Archived: Group: Mountain Mix · Rear derailleur: SRAM X.5 · Crankset: Truvativ Ruktion 1.0, 34T teeth · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 11 - 34 teeth · Chain: KMC Z72

Archived: Brakes: Promax Homet brakes, Promax Homet levers

Archived: Rims: Weinmann ZAC-19, 36-hole · Hubs: Pivit Disc Alloy · Front tire: Front: Kenda Nevegal 2.35, Rear: Kenda Small Block 8

Controls and contact points

Archived: Headset: Ritchey LB+ · Handlebar: Pivit Alloy Riser · Stem: Pivit Alloy · Seatpost: SDG I-Beam, 30.9mm diameter · Saddle: SDG Patriot I-Beam · Pedals: Pivit Platform w/Replaceable Pins
