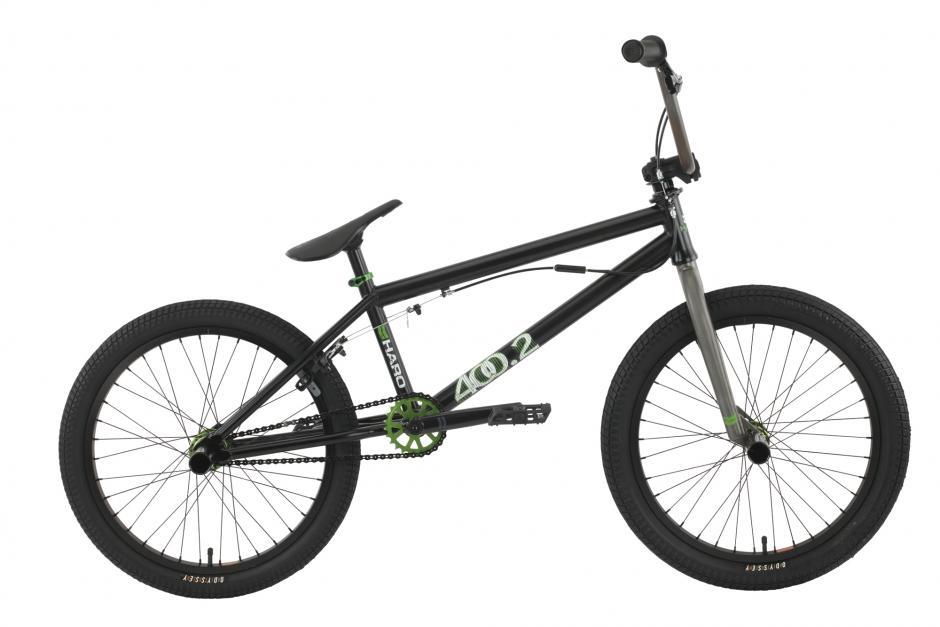

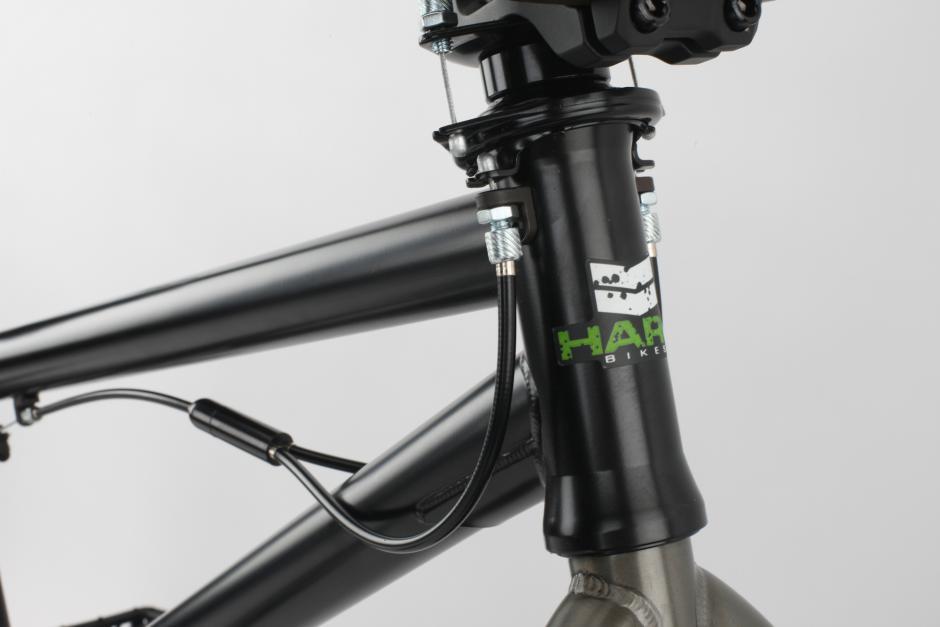

2011 Haro 400.2

Original specifications: BMX Mix drivetrain · 20" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22285
Model year
2011
Category
BMX
Sizes
1-size
In this record
19 specifications · 10 archived images
Original buildCroMo · BMX Mix · 20" wheels

Historical catalog variants

Archived sizes and colors

1 item record

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

1-size
View 1 archived size/color combination
SizeColor
1-size—

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialCroMo
ForkHaro Tapered
Fork MaterialCromo, unicrown crown

Drivetrain

Component GroupBMX Mix

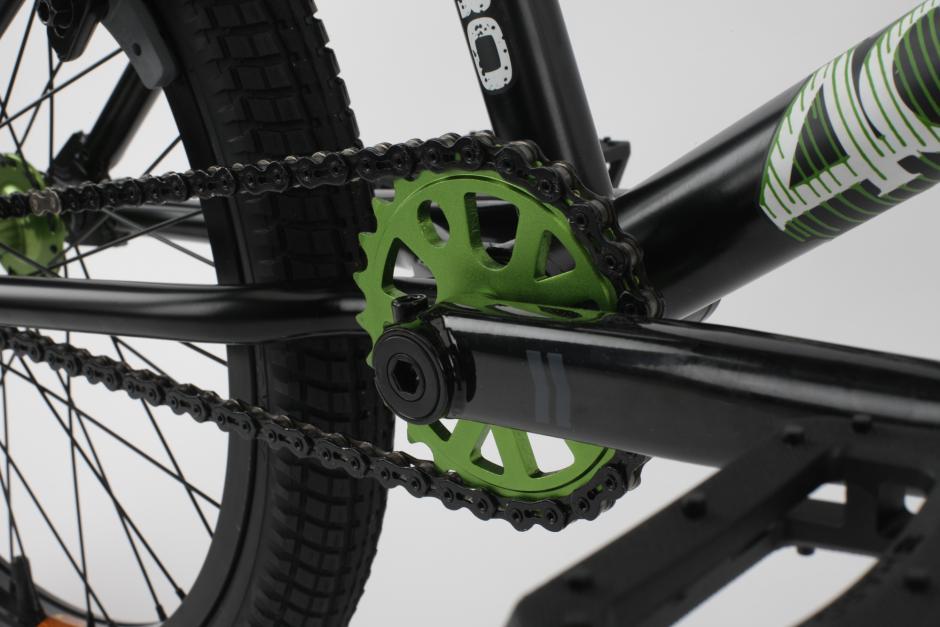

Crankset3 piece tubular CroMo 175mm, 25t teeth
Bottom BracketMid BB
CassetteOne piece driver
Rear Cogs1-speed, 9 teeth

Cockpit & Contact Points

Headset1 1/8" threadless

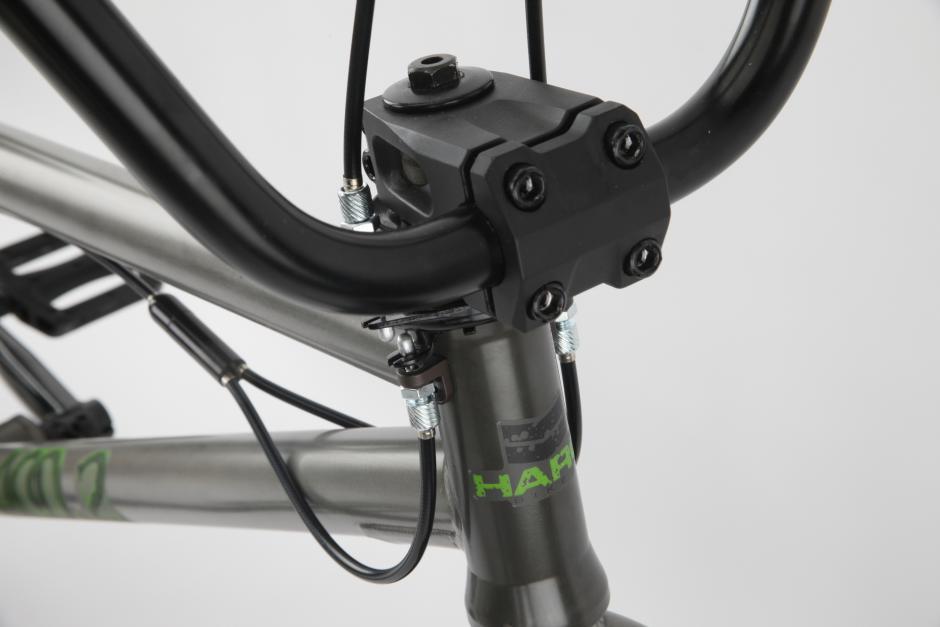

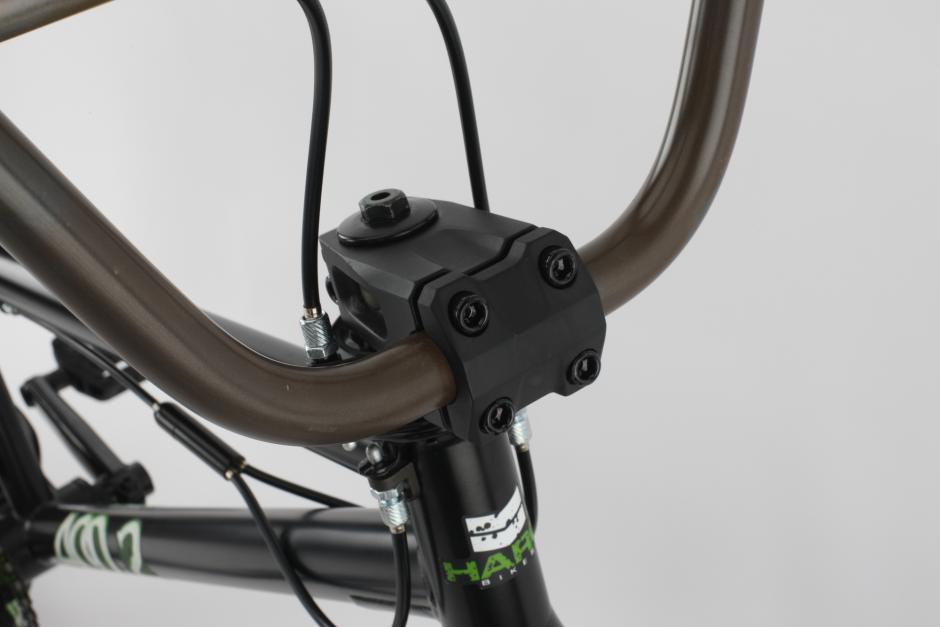

HandlebarFull CroMo 8" rise
Handlebar ExtensionsNot included

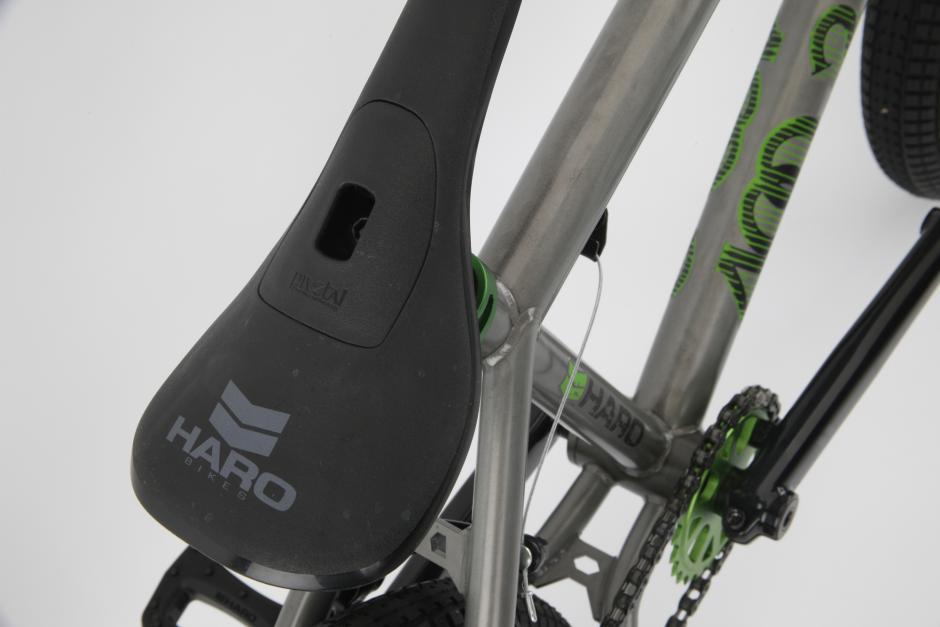

SaddleHaro plastic
SeatpostPivotal

Wheels & Tires

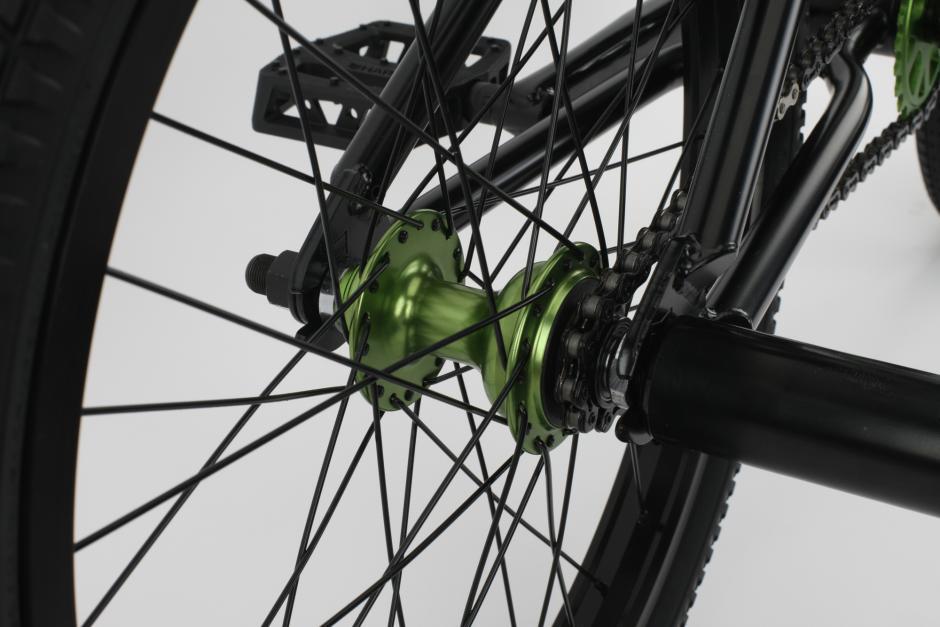

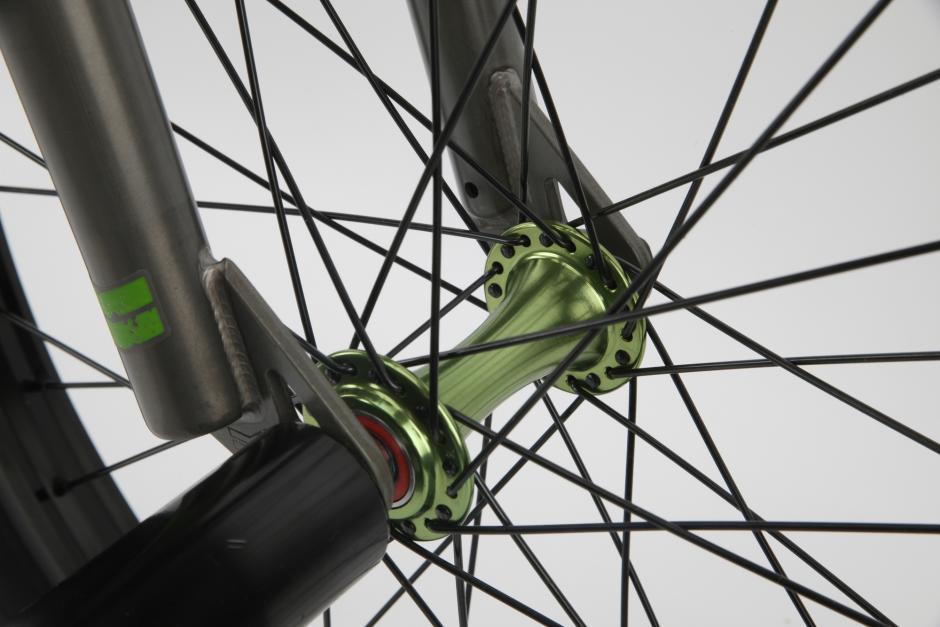

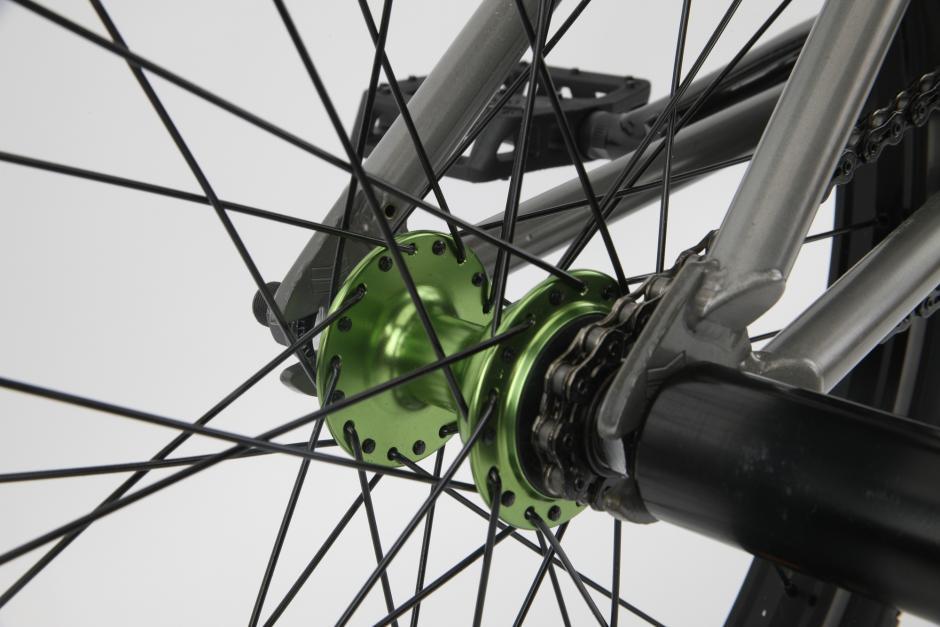

HubsAlloy
RimsAlienation PBR, 36-hole
Front Tire20 x 2.125" odyssey Aitken
Rear Tire20 x 1.95" odyssey Aitken
Wheel Size20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build25T · 9T · 1-speed
Ratio2.78:1
Estimated speed At 90 RPM Gear14.8 mph

Rear tire: 20×1.95.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 20 x 2.125" odyssey Aitken, Rear: 20 x 1.95" odyssey Aitken
Drivetrain
1-speed
Bottom bracket / shell
Mid BB
Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Haro Tapered · Cromo, unicrown crown

Archived: Group: BMX Mix · Crankset: 3 piece tubular CroMo 175mm, 25t teeth · Bottom bracket: Mid BB · Cassette: One piece driver · Rear cogs: 1-speed, 9 teeth

Archived: Wheel size: 20" wheels · Rims: Alienation PBR, 36-hole · Hubs: Alloy · Front tire: Front: 20 x 2.125" odyssey Aitken, Rear: 20 x 1.95" odyssey Aitken

Controls and contact points

Archived: Headset: 1 1/8" threadless · Handlebar: Full CroMo 8" rise · Seatpost: Pivotal · Saddle: Haro plastic
