Velopedia Bicycle Archive

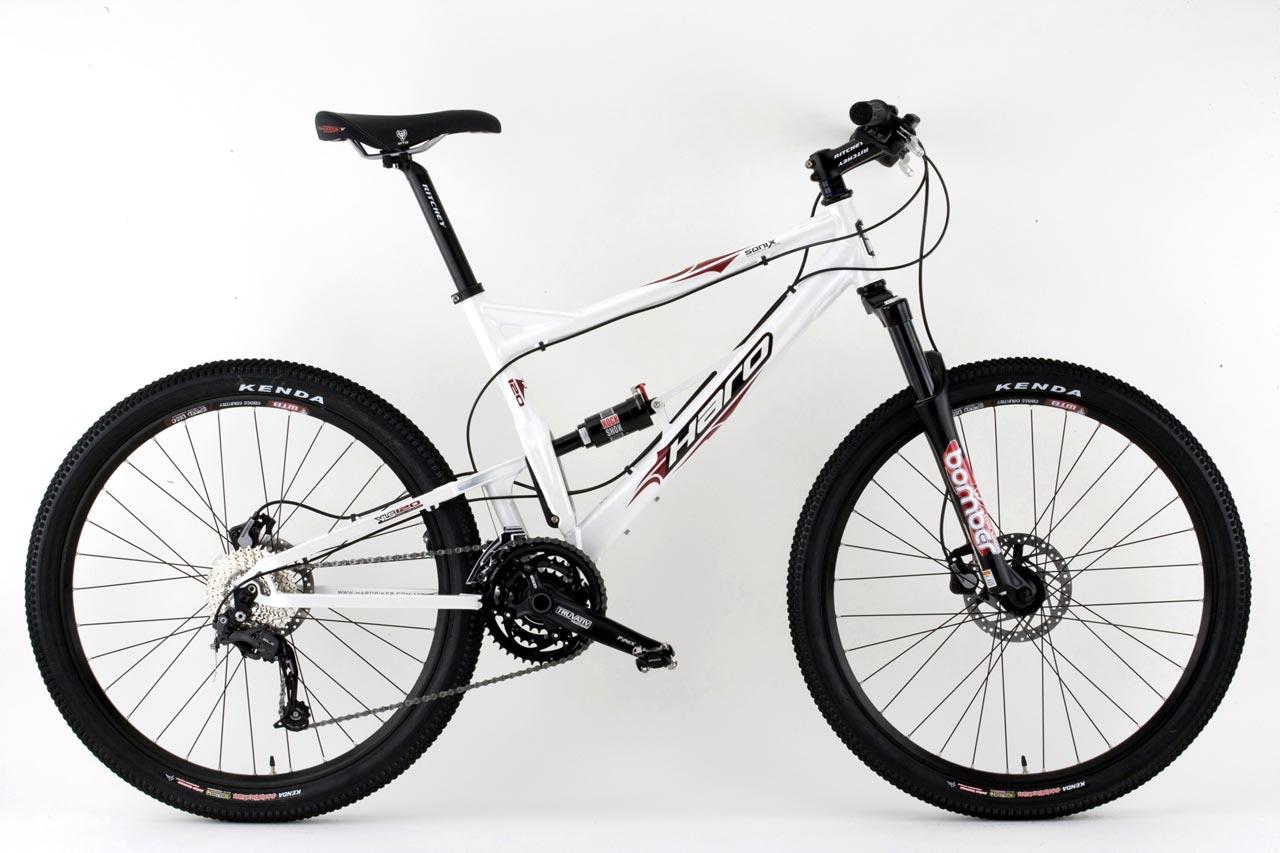

2009 Haro Sonix
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,630.00
- Sizes
- 14", 16", 18", 20"
- Colors
- Faux Pearl
- Archive ID
- 18134
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | Marzocchi 33R, 100mm travel |
| Fork Material | Single |
| Rear Shock | RockShox Bar 2.1, 120mm travel |
Drivetrain
| Component Group | Shimano Deore |
|---|---|
| Shifters | Shimano Deore Rapidfire |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano SLX Shadow |
| Crankset | TruVativ Firex 3.0 GXP, 22/32/44 teeth |
| Bottom Bracket | TruVativ GXP |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG53-9 |
| Pedals | Shimano PD-M505 |
Brakes
| Brakes | Shimano M486 w/160mm Rotor brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey LB Plus |
|---|---|
| Handlebar | Ritchey Rizer |
| Handlebar Extensions | Not included |
| Stem | Ritchey |
| Saddle | WTB Rocket V Comp |
| Seatpost | Ritchey, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Pivit Disc, Rear: Shimano M475 disc |
|---|---|
| Rims | WTB SpeedDisc XC |
| Spokes | Stainless |
| Front Tire | 26 x 2.10" Kenda Small Block Eight |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
