Velopedia Bicycle Archive

2008 Haro Flightline 20

Original specifications: Juvenile Mix drivetrain · 20" wheels.

Share owner experience

Planning to sell? Draft your listing

No archive photo is available for this record.

At a glance

Archive #12989
Model year
2008
Category
Kids
Original MSRP
$250.00
Sizes
10"
Colors
Gloss Black, Hotrod Blue, Pink
In this record
25 specifications · original MSRP

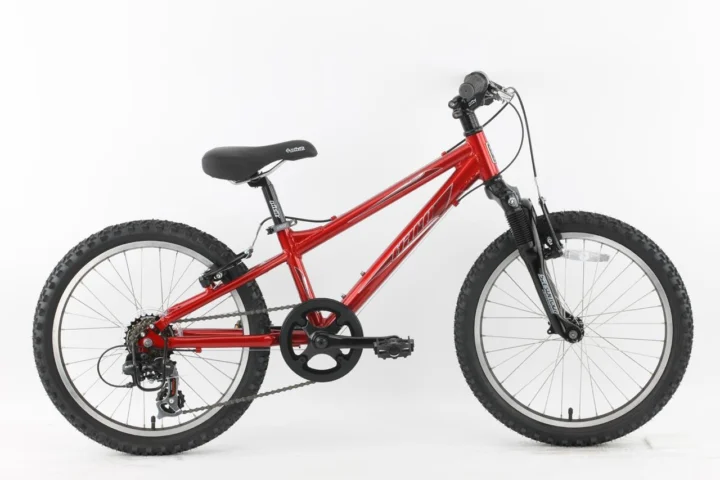

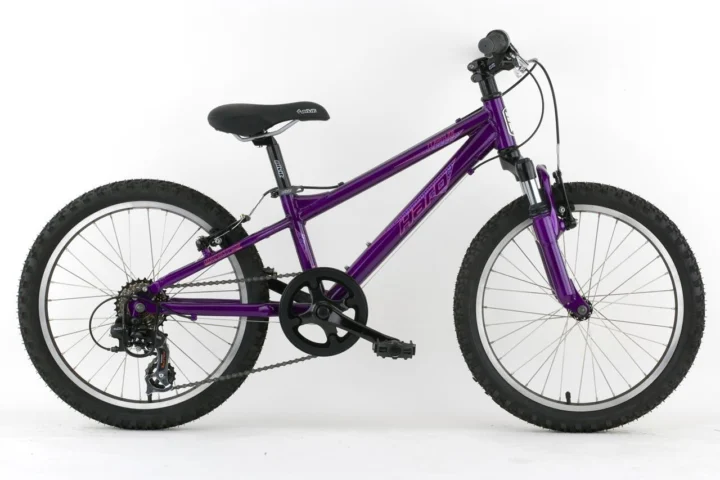

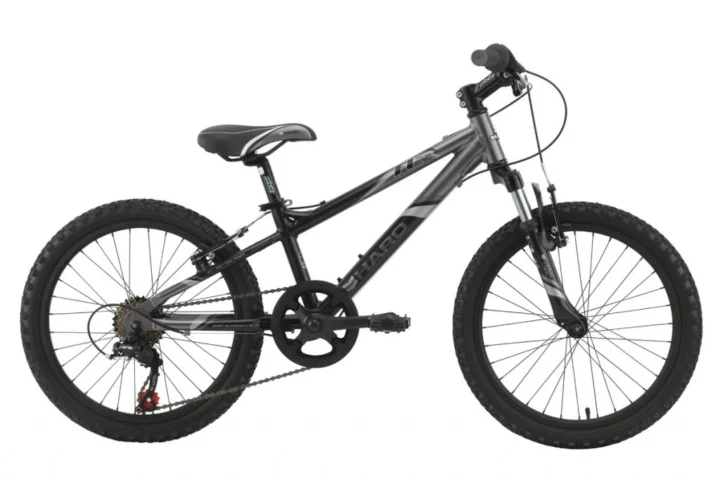

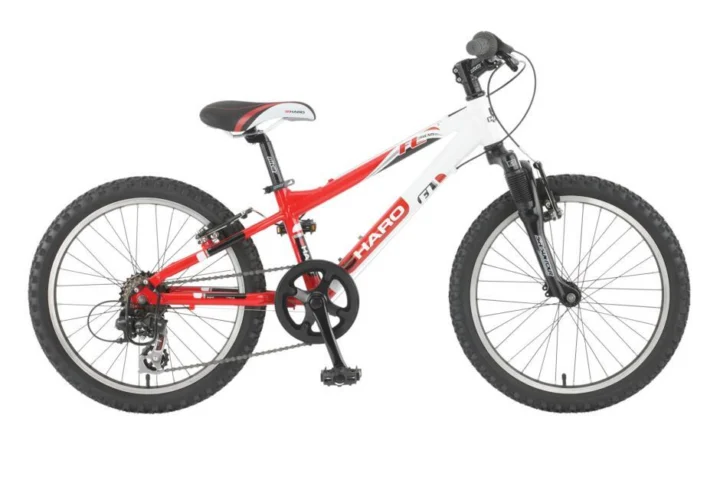

Model history 5 other years

Browse other years

Compare side by side

Identification clues

2008 archived details

Published colors
Gloss Black, Hotrod Blue, Pink
Frame
Lower Profile 6061 T6 Alloy
Original equipment
Juvenile Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildLower Profile 6061 T6 Alloy · Juvenile Mix · 20" wheels

Historical catalog variants

Archived sizes and colors

3 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

10"

Published colors

Gloss BlackHotrod BluePink
View 3 archived size/color combinations
SizeColor
10"Gloss Black
10"Hotrod Blue
10"Pink

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialLower Profile 6061 T6 Alloy
ForkSR Suntour M2000N, 30mm travel
Fork MaterialSingle

Drivetrain

Component GroupJuvenile Mix
ShiftersSRAM MRX
Rear DerailleurShimano TX31
CranksetAlloy, 40 teeth
Bottom BracketSealed cartridge
CassetteShimano
Rear Cogs6-speed, 14 - 28 teeth
ChainShimano UG51
PedalsNylon platform

Brakes

BrakesTektro Direct Pull w/Linear Spring brakes, Tektro levers

Cockpit & Contact Points

HeadsetAheadset OS
HandlebarRiser
Handlebar ExtensionsNot included
StemAlloy
SaddleSelle Sport Jr. Size
SeatpostAlloy Micro Adjust, 27.2mm diameter

Wheels & Tires

HubsAlloy nutted
RimsAlloy, 32-hole
SpokesStainless steel, 14ga. (2.0mm)
Front Tire20 x 2.10" Kenda Kinetic
Wheel Size20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes40T · 14–28T · 6-speed
Lowest1.43:1 Highest2.86:1 Total range200%
Estimated speed At 90 RPM Lowest gear7.7 mph Highest gear15.4 mph

Uses front tire 20×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano UG51
Front tire · Original
20 x 2.10" Kenda Kinetic

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
20 x 2.10" Kenda Kinetic
Drivetrain
6-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: SR Suntour M2000N, 30mm travel · Single

Archived: Fork: SR Suntour M2000N, 30mm travel

Archived: Group: Juvenile Mix · Shifters: SRAM MRX · Rear derailleur: Shimano TX31 · Crankset: Alloy, 40 teeth · Bottom bracket: Sealed cartridge · Cassette: Shimano · Rear cogs: 6-speed, 14 - 28 teeth · Chain: Shimano UG51

Archived: Brakes: Tektro Direct Pull w/Linear Spring brakes, Tektro levers

Archived: Wheel size: 20" wheels · Rims: Alloy, 32-hole · Hubs: Alloy nutted · Front tire: 20 x 2.10" Kenda Kinetic

Controls and contact points

Archived: Headset: Aheadset OS · Handlebar: Riser · Stem: Alloy · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Selle Sport Jr. Size · Pedals: Nylon platform
