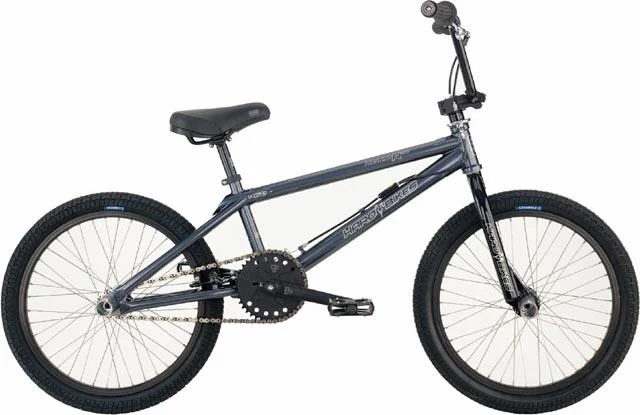

2004 Haro Nyquist Pro
Original specifications: 20" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #30808- Model year
- 2004
- Category
- BMX
- Original MSRP
- $600.00
- Sizes
- Pro
- Colors
- Basalt, Midnight
- Geometry
- Legacy reference
- In this record
- 23 specifications · archived image · original MSRP · geometry
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2004 archived details
- Published colors
- Basalt, Midnight
- Frame
- Chromoly
- Original equipment
- N/A
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly · 20" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Haro Straight Shooter |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Crankset | Premium Lite Tubular Crmo, 39 teeth |
|---|---|
| Bottom Bracket | Sealed cartridge |
| BB Shell Width | 68mm English |
| Rear Cogs | 1-speed, 14 teeth |
| Chain | KMC Z710 |
| Pedals | Premium Products |
Brakes
| Brakes | DiaTech AD-990 U-Brake rear brakes, Dia-Compe Tech 77 rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated FSA |
|---|---|
| Handlebar | 7.75 Street Bar |
| Stem | Haro Small Block SL |
| Saddle | Haro Landing Strip |
| Seatpost | Chromoly, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: Haro alloy, 14mm, Rear: Haro alloy, 14mm dual thread |
|---|---|
| Rims | Alex AL-DM18, 40-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 2.25" Haro Catapult |
| Rear Tire | 20 x 2.00" Haro Catapult |
| Wheel Size | 20" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 5 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 525.8 mm |
| Head-tube angle | 74.5° |
| Seat-tube angle | 70° |
| Chainstay / rear center | 365 mm |
| Wheelbase | 929.6 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
25.4mm diameter
40-hole
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Front: 20 x 2.25" Haro Catapult, Rear: 20 x 2.00" Haro Catapult
- Drivetrain
- 1-speed
- Seatpost diameter
- 25.4 mm
- Bottom bracket / shell
- Sealed cartridge · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Haro Straight Shooter · Chromoly, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Crankset: Premium Lite Tubular Crmo, 39 teeth · Bottom bracket: Sealed cartridge · Rear cogs: 1-speed, 14 teeth · Chain: KMC Z710
Brakes
Inspect the brakes →Archived: Brakes: DiaTech AD-990 U-Brake rear brakes, Dia-Compe Tech 77 rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 20" wheels · Rims: Alex AL-DM18, 40-hole · Hubs: Front: Haro alloy, 14mm, Rear: Haro alloy, 14mm dual thread · Front tire: Front: 20 x 2.25" Haro Catapult, Rear: 20 x 2.00" Haro Catapult
Controls and contact points
Archived: Headset: 1 1/8" integrated FSA · Handlebar: 7.75 Street Bar · Stem: Haro Small Block SL · Seatpost: Chromoly, 25.4mm diameter · Saddle: Haro Landing Strip · Pedals: Premium Products
