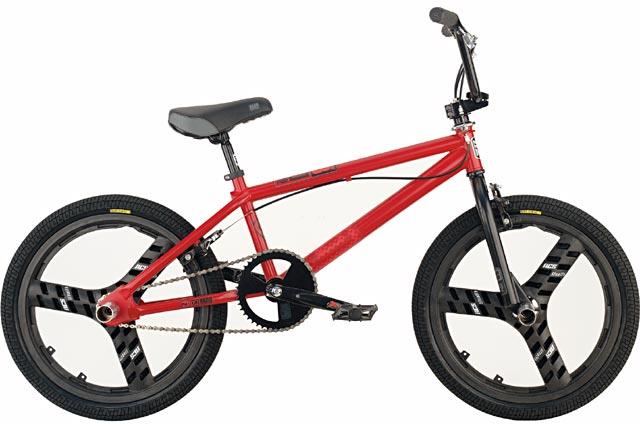

2004 Haro F3M

Original specifications: 20" wheels · legacy reference geometry.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #30801
Model year
2004
Category
BMX
Original MSRP
$270.00
Sizes
Pro
Colors
Chrome, SG Blood Red
Geometry
Legacy reference
In this record
20 specifications · archived image · original MSRP · geometry
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2004 archived details

Published colors
Chrome, SG Blood Red
Frame
Chromoly seat tube/hi-tensile steel
Original equipment
N/A

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildChromoly seat tube/hi-tensile steel · 20" wheels

Manufacturer catalog

Published sizes and colors

1 size · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

Pro

Published colors

ChromeSG Blood Red

Frameset

Frame ConstructionTIG-welded
Frame MaterialChromoly seat tube/hi-tensile steel
ForkHaro Straight Shooter
Fork MaterialChromoly, unicrown crown

Drivetrain

CranksetHFC Forged chromoly 3-piece, 44 teeth
Bottom BracketSealed
BB Shell WidthAmerican
Rear Cogs1-speed, 16 teeth
ChainKMC Z410
PedalsFusion DX style platform, aluminum

Brakes

BrakesTektro U-brake brakes, Tektro aluminum levers

Cockpit & Contact Points

Headset1 1/8" threadless Tien Hsin Power Pro
HandlebarHaro Slim Bar 2.3
StemFusion
SaddleHaro Landing Strip
SeatpostSteel, 25.4mm diameter

Wheels & Tires

HubsACS Stealth
RimsACS Stealth
Front Tire20 x 2.00" Haro MS 4
Wheel Size20" wheels

Geometry

Legacy reference · 5 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 5 measurements
MeasurementLegacy reference
Top tube514.4 mm
Head-tube angle74°
Seat-tube angle70°
Chainstay / rear center365 mm
Wheelbase923.5 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build44T · 16T · 1-speed
Ratio2.75:1
Estimated speed At 90 RPM Gear14.7 mph

Uses front tire 20×2; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
20 x 2.00" Haro MS 4 Replacement search: 20x2 bicycle tire Before ordering: Check rim type and tire clearance.
Seatpost · Original
Steel

25.4mm diameter

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
20 x 2.00" Haro MS 4
Drivetrain
1-speed
Seatpost diameter
25.4 mm
Bottom bracket / shell
Sealed · American
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Haro Straight Shooter · Chromoly, unicrown crown

Archived: Crankset: HFC Forged chromoly 3-piece, 44 teeth · Bottom bracket: Sealed · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z410

Archived: Brakes: Tektro U-brake brakes, Tektro aluminum levers

Archived: Wheel size: 20" wheels · Rims: ACS Stealth · Hubs: ACS Stealth · Front tire: 20 x 2.00" Haro MS 4

Controls and contact points

Archived: Headset: 1 1/8" threadless Tien Hsin Power Pro · Handlebar: Haro Slim Bar 2.3 · Stem: Fusion · Seatpost: Steel, 25.4mm diameter · Saddle: Haro Landing Strip · Pedals: Fusion DX style platform, aluminum
