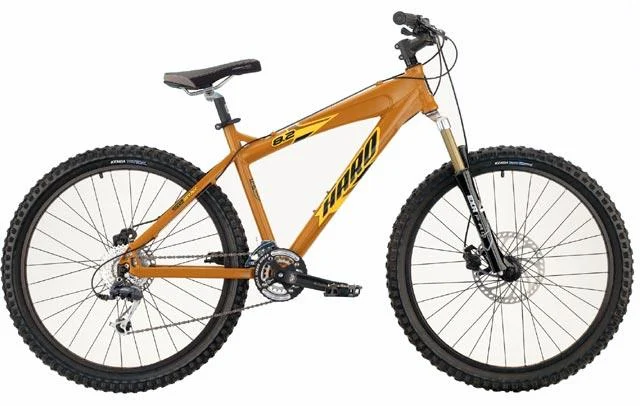

2004 Haro Escape 8.2

Original specifications: Shimano Deore LX · 9-speed · mechanical rear derailleur · 26" wheels · 33.7 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #92481
Model year
2004
Category
Mountain
Original MSRP
$850.00
Sizes
XS, S, M, L
Colors
Black/anthracite, Clay
Weight
33.7 lb
Geometry
Legacy reference
In this record
26 specifications · archived image · original MSRP · geometry
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2004 archived details

Published colors
Black/anthracite, Clay
Frame
7005 aluminum
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build7005 aluminum · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSML

Published colors

Black/anthraciteClay

Frameset

Frame ConstructionTIG-welded
Frame Material7005 aluminum
ForkMarzocchi EXR Comp, 105mm travel
Fork MaterialAluminum, single crown

Drivetrain

Component GroupMountain Mix
ShiftersShimano Deore RapidFire SL
Front DerailleurShimano Alivio
Rear DerailleurShimano Deore LX SGS
CranksetFSA Alpha Drive, 22/32/44 teeth
Bottom BracketFSA Isis
Rear Cogs9-speed, 11 - 34 teeth
ChainShimano CN-HG53, 1/2 x 3/32"
PedalsNylon body, steel cage w/clips & straps

Brakes

BrakesHayes HMX-1 Mechanical Disc brakes, Tektro aluminum levers

Cockpit & Contact Points

Headset1 1/8" threadless WTB Inner Peace ST
HandlebarTruVativ Hussefelt
Handlebar ExtensionsNot included
StemAluminum Ahead type
SaddleHaro
SeatpostAluminum micro-adjust, 30.9mm diameter

Wheels & Tires

HubsFormula disc
RimsSun Rims Hill Rod, 32-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 2.35" Kenda Blue Groove
Wheel Size26" wheels

Geometry

Legacy reference · 6 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 6 measurements
MeasurementLegacy reference
Top tube584.2 mm
Head-tube angle70.5°
Seat-tube angle72°
Chainstay / rear center424.2 mm
Wheelbase1066.8 mm
Fork offset / rake38.1 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–34T · 9-speed
Lowest0.65:1 Highest4.00:1 Total range618%
Estimated speed At 90 RPM Lowest gear4.6 mph Highest gear28.6 mph

Uses front tire 26×2.35; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano CN-HG53

1/2 x 3/32"

Front tire · Original
26 x 2.35" Kenda Blue Groove
More parts (6)Fewer parts
Bottom bracket · Original
FSA ISIS
Crankset · Original
FSA Alpha Drive

22/32/44 teeth

Front derailleur · Original
Shimano Alivio
Rear derailleur · Original
Shimano Deore LX SGS
Shifters · Original
Shimano Deore RapidFire SL
Headset · Original
1 1/8" threadless WTB Inner Peace ST

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.35" Kenda Blue Groove
Drivetrain
9-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
FSA ISIS
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Marzocchi EXR Comp, 105mm travel · Aluminum, single crown

Archived: Fork: Marzocchi EXR Comp, 105mm travel

Archived: Group: Mountain Mix · Shifters: Shimano Deore RapidFire SL · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Deore LX SGS · Crankset: FSA Alpha Drive, 22/32/44 teeth · Bottom bracket: FSA ISIS · Rear cogs: 9-speed, 11 - 34 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"

Archived: Brakes: Hayes HMX-1 Mechanical Disc brakes, Tektro aluminum levers

Archived: Wheel size: 26" wheels · Rims: Sun Rims Hill Rod, 32-hole · Hubs: Formula disc · Front tire: 26 x 2.35" Kenda Blue Groove

Controls and contact points

Archived: Headset: 1 1/8" threadless WTB Inner Peace ST · Handlebar: TruVativ Hussefelt · Stem: Aluminum Ahead type · Seatpost: Aluminum micro-adjust, 30.9mm diameter · Saddle: Haro · Pedals: Nylon body, steel cage w/clips & straps
