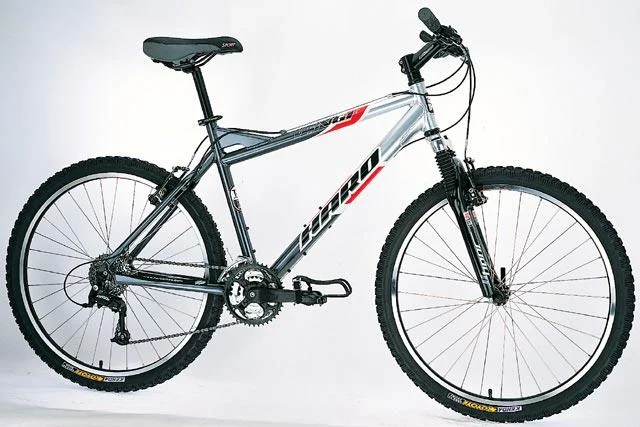

2003 Haro V3

Original specifications: Shimano Deore · 8-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #38580
Model year
2003
Category
Mountain
Original MSRP
$410.00
Sizes
13.5", 15.5", 17.5", 19.5", 21.5"
Colors
Anthracite/X-Yellow, Satin Silver/Matte Red
Geometry
Legacy reference
In this record
26 specifications · archived image · original MSRP · geometry
Model history 5 other years

Browse other years

Compare side by side

Identification clues

2003 archived details

Published colors
Anthracite/X-Yellow, Satin Silver/Matte Red
Frame
6061 T6 aluminum
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original build6061 T6 aluminum · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

13.5"15.5"17.5"19.5"21.5"

Published colors

Anthracite/X-YellowSatin Silver/Matte Red

Frameset

Frame ConstructionTIG-welded
Frame Material6061 T6 aluminum
ForkRock Shox Judy TT, 80mm travel
Fork MaterialAluminum/magnesium, single crown

Drivetrain

Component GroupMountain Mix
ShiftersShimano EF-35
Front DerailleurShimano Acera top-swing
Rear DerailleurShimano Deore SGS
CranksetTruVativ X-Forge, 22/32/42 teeth
Bottom BracketTruVativ cartridge
Rear Cogs8-speed, 11 - 32 teeth
ChainShimano CN-IG51, 1/2 x 3/32"
PedalsAluminum cage w/clips & straps

Brakes

BrakesProMax linear-pull brakes, Shimano EF-35 levers

Cockpit & Contact Points

Headset1 1/8" threadless WTB Momentum Comp STP
HandlebarAluminum
Handlebar ExtensionsAluminum
StemAluminum threadless
SaddleHaro Selle Sport Dual Density
SeatpostAluminum micro-adjust, 27.2mm diameter

Wheels & Tires

HubsFormula aluminum, Q/R
RimsAlex DM-18, 32-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 2.10" WTB VelociRaptor
Wheel Size26" wheels

Geometry

Legacy reference · 6 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 6 measurements
MeasurementLegacy reference
Top tube594.4 mm
Head-tube angle71.5°
Seat-tube angle73°
Chainstay / rear center424.2 mm
Wheelbase1061.7 mm
Fork offset / rake38.1 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/32/22T · 11–32T · 8-speed
Lowest0.69:1 Highest3.82:1 Total range555%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear26.8 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-IG51

1/2 x 3/32"

Retailer offers
Seatpost · Original
Aluminum micro-adjust

27.2mm diameter

Retailer offers
Front tire · Original
26 x 2.10" WTB VelociRaptor
More parts (5)Fewer parts
Brake pads · Original
ProMax linear-pull brakes

Shimano EF-35 levers

Front derailleur · Original
Shimano Acera top-swing
Rear derailleur · Original
Shimano Deore SGS
Headset · Original
1 1/8" threadless WTB Momentum Comp STP
Rims · Original
Alex DM-18

32-hole

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" WTB VelociRaptor
Drivetrain
8-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
TruVativ cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Rock Shox Judy TT, 80mm travel · Aluminum/magnesium, single crown

Archived: Fork: Rock Shox Judy TT, 80mm travel

Archived: Group: Mountain Mix · Shifters: Shimano EF-35 · Front derailleur: Shimano Acera top-swing · Rear derailleur: Shimano Deore SGS · Crankset: TruVativ X-Forge, 22/32/42 teeth · Bottom bracket: TruVativ cartridge · Rear cogs: 8-speed, 11 - 32 teeth · Chain: Shimano CN-IG51, 1/2 x 3/32"

Archived: Brakes: ProMax linear-pull brakes, Shimano EF-35 levers

Archived: Wheel size: 26" wheels · Rims: Alex DM-18, 32-hole · Hubs: Formula aluminum, Q/R · Front tire: 26 x 2.10" WTB VelociRaptor

Controls and contact points

Archived: Headset: 1 1/8" threadless WTB Momentum Comp STP · Handlebar: Aluminum · Stem: Aluminum threadless · Seatpost: Aluminum micro-adjust, 27.2mm diameter · Saddle: Haro Selle Sport Dual Density · Pedals: Aluminum cage w/clips & straps
