Velopedia Bicycle Archive

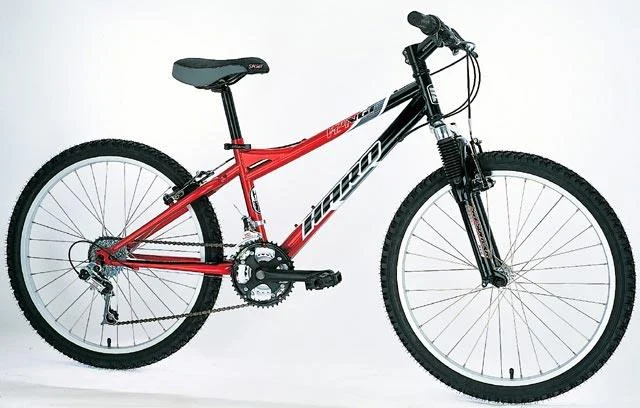

2003 Haro V24

Original specifications: Shimano Acera · 7-speed · mechanical rear derailleur · 24" wheels · legacy reference geometry.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #38583
Model year
2003
Category
Kids
Original MSRP
$240.00
Sizes
11.5"
Colors
Silver/Ocean Spray, White/Red
Geometry
Legacy reference
In this record
26 specifications · archived image · original MSRP · geometry
Model history 5 other years

Browse other years

Compare side by side

Identification clues

2003 archived details

Published colors
Silver/Ocean Spray, White/Red
Frame
Chromoly down tube/hi-tensile steel
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildChromoly down tube/hi-tensile steel · Mountain Mix · 24" wheels

Manufacturer catalog

Published sizes and colors

1 size · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

11.5"

Published colors

Silver/Ocean SprayWhite/Red

Frameset

Frame ConstructionTIG-welded
Frame MaterialChromoly down tube/hi-tensile steel
ForkSuntour XCC-D, 2.0" travel
Fork MaterialAluminum, single crown

Drivetrain

Component GroupMountain Mix
ShiftersSRAM MRX IBS
Front DerailleurShimano Tourney TY-10
Rear DerailleurShimano Acera
CranksetSuntour XCC-150, 24/34/42 teeth
Bottom BracketTien Hsin
Rear Cogs7-speed, 13 - 28 teeth
ChainShimano CN-HG50, 1/2 x 3/32"
PedalsAluminum cage

Brakes

BrakesProMax linear-pull brakes, SRAM MRX IBS levers

Cockpit & Contact Points

Headset1 1/8" threadless WTB Momentum Comp STP
HandlebarAluminum
Handlebar ExtensionsNot included
StemAluminum threadless
SaddleHaro Selle Sport Jr. Dual Density
SeatpostAluminum micro-adjust, 29.0mm diameter

Wheels & Tires

HubsAluminum, Q/R
RimsAluminum, 32-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire24 x 1.95" Kenda K-849
Wheel Size24" wheels

Geometry

Legacy reference · 5 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 5 measurements
MeasurementLegacy reference
Top tube515.6 mm
Head-tube angle70°
Seat-tube angle74°
Chainstay / rear center424.2 mm
Wheelbase1000.8 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/34/24T · 13–28T · 7-speed
Lowest0.86:1 Highest3.23:1 Total range377%
Estimated speed At 90 RPM Lowest gear5.5 mph Highest gear20.6 mph

Uses front tire 24×1.95; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-HG50

1/2 x 3/32"

Front tire · Original
24 x 1.95" Kenda K-849 Replacement search: 24x1.95 bicycle tire Before ordering: Check rim type and tire clearance.
Brake pads · Original
ProMax linear-pull brakes

SRAM MRX IBS levers

More parts (4)Fewer parts
Front derailleur · Original
Shimano Tourney TY-10
Rear derailleur · Original
Shimano Acera
Seatpost · Original
Aluminum micro-adjust

29.0mm diameter

Headset · Original
1 1/8" threadless WTB Momentum Comp STP

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
24 x 1.95" Kenda K-849
Drivetrain
7-speed
Seatpost diameter
29 mm
Bottom bracket / shell
Tien Hsin
Campaign
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Suntour XCC-D, 2.0" travel · Aluminum, single crown

Archived: Fork: Suntour XCC-D, 2.0" travel

Archived: Group: Mountain Mix · Shifters: SRAM MRX IBS · Front derailleur: Shimano Tourney TY-10 · Rear derailleur: Shimano Acera · Crankset: Suntour XCC-150, 24/34/42 teeth · Bottom bracket: Tien Hsin · Rear cogs: 7-speed, 13 - 28 teeth · Chain: Shimano CN-HG50, 1/2 x 3/32"

Archived: Brakes: ProMax linear-pull brakes, SRAM MRX IBS levers

Archived: Wheel size: 24" wheels · Rims: Aluminum, 32-hole · Hubs: Aluminum, Q/R · Front tire: 24 x 1.95" Kenda K-849

Controls and contact points

Archived: Headset: 1 1/8" threadless WTB Momentum Comp STP · Handlebar: Aluminum · Stem: Aluminum threadless · Seatpost: Aluminum micro-adjust, 29.0mm diameter · Saddle: Haro Selle Sport Jr. Dual Density · Pedals: Aluminum cage
