2003 Haro ICS 5.0
Original specifications: Shimano Deore XT · 9-speed · mechanical rear derailleur · 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #38577- Model year
- 2003
- Category
- Mountain
- Original MSRP
- $1,130.00
- Sizes
- 13.5", 15.5", 17.5", 19.5"
- Colors
- Absolut Red, Silver/CyanTeam
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry

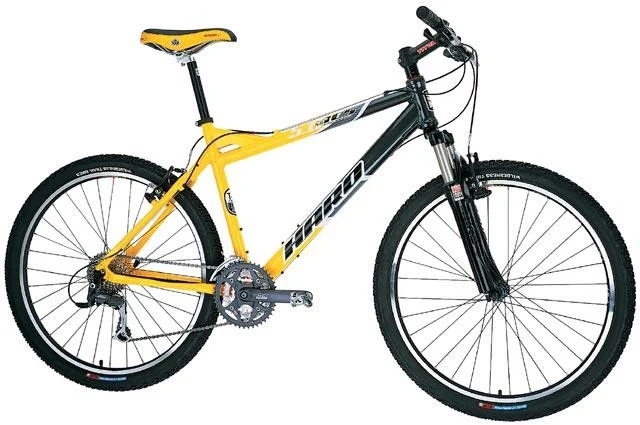

Model history 1 other year
Browse other years
Compare side by side
Identification clues
2003 archived details
- Published colors
- Absolut Red, Silver/CyanTeam
- Frame
- 7005 aluminum, double-butted
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum, double-butted · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, double-butted |
| Fork | Rock Shox Duke XC U-Turn, 80mm travel |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore LX RapidFire SL |
| Front Derailleur | Shimano Deore XT |
| Rear Derailleur | Shimano Deore XT |
| Crankset | Shimano Deore XT, 22/32/44 teeth |
| Bottom Bracket | Shimano BB-ES51 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano CN-HG53, 1/2 x 3/32" |
| Pedals | Shimano PD-M505 SPD |
Brakes
| Brakes | Shimano Deore brakes, Shimano Deore LX RapidFire SL levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated WTB Inner Peace SC |
|---|---|
| Handlebar | Titec Enduro |
| Handlebar Extensions | Not included |
| Stem | Titec Big AL |
| Saddle | WTB Rocket V Race |
| Seatpost | Aluminum micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano Deore LX |
|---|---|
| Rims | WTB SpeedMaster, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.00" Maxxis Larsen TT |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 609.6 mm |
| Head-tube angle | 71.5° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 414 mm |
| Wheelbase | 1071.9 mm |
| Fork offset / rake | 38.1 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
27.2mm diameter
More parts (10)Fewer parts
22/32/44 teeth
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00" Maxxis Larsen TT
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-ES51
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Rock Shox Duke XC U-Turn, 80mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Rock Shox Duke XC U-Turn, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore LX RapidFire SL · Front derailleur: Shimano Deore XT · Rear derailleur: Shimano Deore XT · Crankset: Shimano Deore XT, 22/32/44 teeth · Bottom bracket: Shimano BB-ES51 · Rear cogs: 9-speed, 11 - 34 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Deore brakes, Shimano Deore LX RapidFire SL levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: WTB SpeedMaster, 32-hole · Hubs: Shimano Deore LX · Front tire: 26 x 2.00" Maxxis Larsen TT
Controls and contact points
Archived: Headset: 1 1/8" integrated WTB Inner Peace SC · Handlebar: Titec Enduro · Stem: Titec Big AL · Seatpost: Aluminum micro-adjust, 27.2mm diameter · Saddle: WTB Rocket V Race · Pedals: Shimano PD-M505 SPD
