Velopedia Bicycle Archive

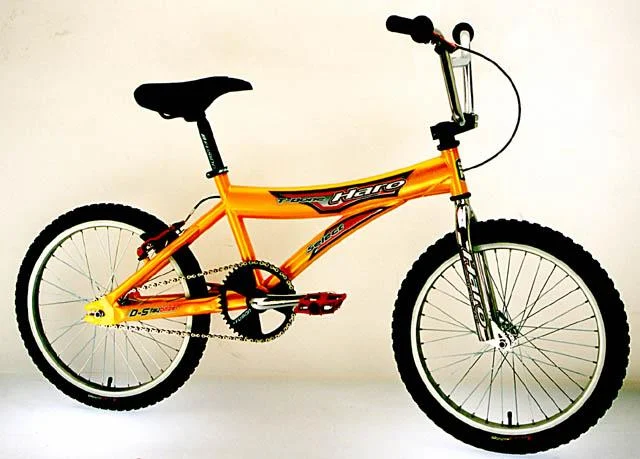

2001 Haro T-Bone Select
Original specifications: 20" wheels · 28.8 lb published weight · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #36230- Model year
- 2001
- Category
- BMX
- Original MSRP
- $169.99
- Sizes
- Pro
- Colors
- Black, Ruby Red
- Weight
- 28.8 lb
- Geometry
- Legacy reference
- In this record
- 23 specifications · archived image · original MSRP · geometry
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2001 archived details
- Published colors
- Black, Ruby Red
- Frame
- Chromoly
- Original equipment
- N/A
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly · 20" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Haro BMX |
| Fork Material | Hi-tensile steel, unicrown crown |
Drivetrain
| Crankset | Haro Megacrank, 44 teeth |
|---|---|
| Bottom Bracket | Fusion sealed |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z410 |
| Pedals | Fusion DX style platform, resin |
Brakes
| Brakes | Aluminum direct-pull rear brakes, aluminum rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Dia-Compe SE |
|---|---|
| Handlebar | Haro Slim Bar |
| Handlebar Extensions | Not included |
| Stem | Fusion |
| Saddle | Haro Slantnose |
| Seatpost | Fusion steel pillar, 28.6 diameter |
Wheels & Tires
| Hubs | Aluminum |
|---|---|
| Rims | Alex Y303, 36-hole |
| Spokes | Stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 2.25" Haro Holeshot A-6 |
| Rear Tire | 20 x 1.85" Haro Holeshot A-6 |
| Wheel Size | 20" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 5 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 515.9 mm |
| Head-tube angle | 73.5° |
| Seat-tube angle | 70° |
| Chainstay / rear center | 382 mm |
| Wheelbase | 938 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
36-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Front: 20 x 2.25" Haro Holeshot A-6, Rear: 20 x 1.85" Haro Holeshot A-6
- Drivetrain
- 1-speed
- Bottom bracket / shell
- Fusion sealed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Haro BMX · Hi-tensile steel, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Crankset: Haro Megacrank, 44 teeth · Bottom bracket: Fusion sealed · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z410
Brakes
Inspect the brakes →Archived: Brakes: Aluminum direct-pull rear brakes, aluminum rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 20" wheels · Rims: Alex Y303, 36-hole · Hubs: Aluminum · Front tire: Front: 20 x 2.25" Haro Holeshot A-6, Rear: 20 x 1.85" Haro Holeshot A-6
Controls and contact points
Archived: Headset: 1 1/8" threadless Dia-Compe SE · Handlebar: Haro Slim Bar · Stem: Fusion · Seatpost: Fusion steel pillar, 28.6 diameter · Saddle: Haro Slantnose · Pedals: Fusion DX style platform, resin
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
