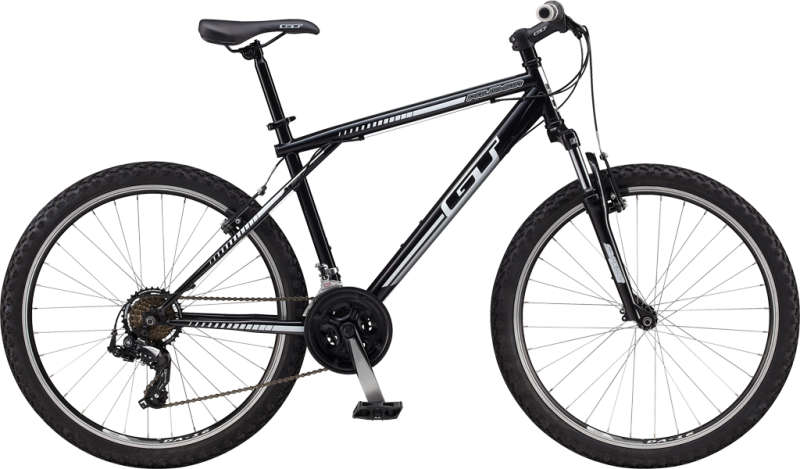

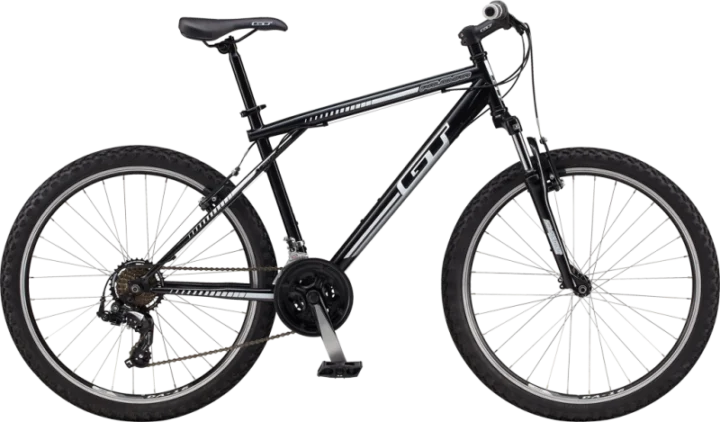

2012 GT Palomar

Archived: Frame: Hi-Tensile Steel · Fork: SR Suntour M-3010 AL 65mm

• Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.

Archived: Fork: SR Suntour M-3010 AL 65mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: Shimano EF40 EZ Fire · Front derailleur: Shimano Tourney · Rear derailleur: Shimano TX58 · Crankset: Pro Wheel 24/34/42 · Bottom bracket: Cartridge · Cassette: Shimano MegaRange 7spd 14-34t · Chain: KMC Z-51

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Linear pull

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Archived: Rims: Alloy double wall · Front tire: GT All Terrain 2.1

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" threadless · Handlebar: MTB Riser Bar · Stem: Alloy Ahead · Seatpost: Alloy · Saddle: GT MTB · Pedals: Resin ATB

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
