Velopedia Bicycle Archive

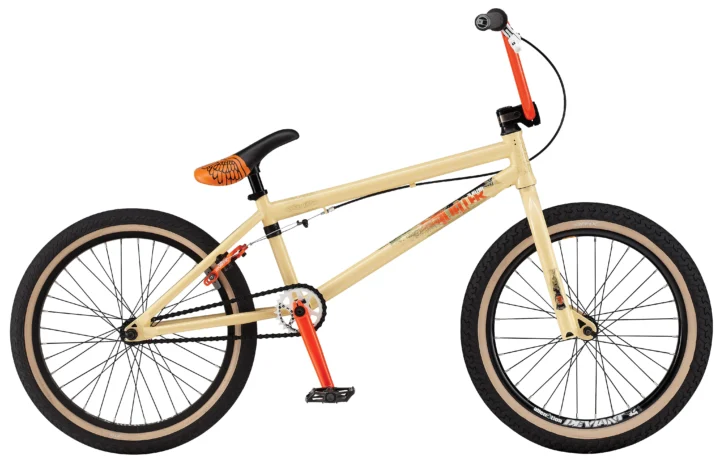

2011 GT Fueler

Original specifications: BMX Mix drivetrain · 20" wheels.

Share owner experience

At a glance

Archive #25116

Model year: 2011
Category: BMX
Colors: Polish slate, Butter
In this record: 24 specifications · 2 archived images

Model history 12 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors: Polish slate, Butter
Frame: CroMo
Original equipment: BMX Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildCroMo · BMX Mix · 20" wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published colors

Polish SlateButter

View 2 archived size/color combinations

Size	Color
—	Polish Slate
—	Butter

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	Steel
Frame Material	CroMo
Fork	Cromo
Fork Material	Steel

Drivetrain

Component Group	BMX Mix
Crankset	Heat treated Cr-Mo, 25t teeth
Bottom Bracket	Sealed Bearing
Cassette	Cassette cog
Rear Cogs	9 teeth
Chain	KMC Halflink Chain
Pedals	GT Dirt/Street platform

Cockpit & Contact Points

Headset	1 1/8" TH No. 8-D
Handlebar	Xposure
Handlebar Extensions	Not included
Stem	Affix CNC
Saddle	AFFIX Unified
Seatpost	Integrated

Wheels & Tires

Hubs	GT Mohawk
Rims	Front: Alienation Deviant, Rear: Alienation Black Sheep, 32-hole/36-hole
Spokes	14ga. (2.0mm)
Spoke Nipples	Brass
Front Tire	20 x 2.3" Affix Telum Dirt
Rear Tire	20 x 2.1" Affix Telum Street
Wheel Size	20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build25T · 9T

Ratio2.78:1

Estimated speed At 90 RPM Gear15.0 mph

Rear tire: 20×2.1.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Front: 20 x 2.3" Affix Telum Dirt, Rear: 20 x 2.1" Affix Telum Street
Drivetrain: BMX Mix
Bottom bracket / shell: Sealed Bearing

Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Steel · Fork: Cromo · Steel

Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Group: BMX Mix · Crankset: Heat treated Cr-Mo, 25t teeth · Bottom bracket: Sealed Bearing · Cassette: Cassette cog · Rear cogs: 9 teeth · Chain: KMC Halflink Chain

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 20" wheels · Rims: Front: Alienation Deviant, Rear: Alienation Black Sheep, 32-hole/36-hole · Hubs: GT Mohawk · Front tire: Front: 20 x 2.3" Affix Telum Dirt, Rear: 20 x 2.1" Affix Telum Street

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1 1/8" TH No. 8-D · Handlebar: Xposure · Stem: AFFIX CNC · Seatpost: Integrated · Saddle: AFFIX Unified · Pedals: GT Dirt/Street platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
