Velopedia Bicycle Archive

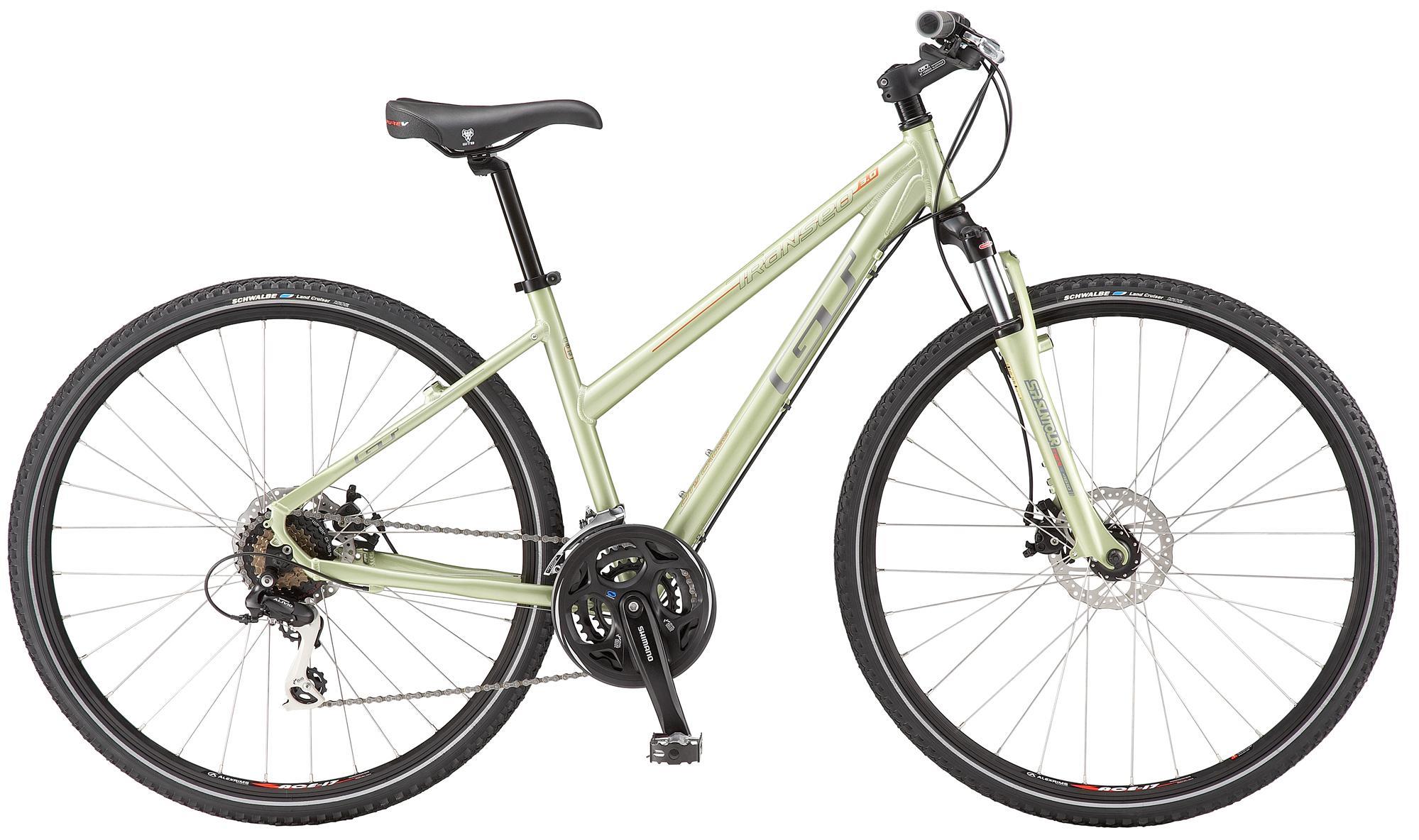

2010 GT Tanseo 3.0 Disc Women's

Original specifications: Shimano Alivio · 8-speed rear derailleur · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #20960
Model year
2010
Category
Hybrid
Original MSRP
$499.99
Sizes
S M, L
Colors
Light Green
In this record
27 specifications · archived image · original MSRP
Original build7000 series butted aluminum w/hydroformed TT · Hybrid Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

S ML

Published colors

Light Green
View 2 archived size/color combinations
SizeColor
S MLight Green
LLight Green

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame Material7000 series butted aluminum w/hydroformed TT
ForkSR Suntour NEX-4610, 50mm travel
Fork MaterialSingle

Drivetrain

Component GroupHybrid Mix
ShiftersShimano SL-M360 RapidFire
Front DerailleurShimano C102, clamp on
Rear DerailleurShimano Alivio
CranksetShimano Acera, 28/38/48 teeth
Bottom BracketShimano Octalink
CassetteShimano Hyperglide
Rear Cogs8-speed, 11 - 32 teeth
ChainKMC HG40
PedalsAlloy

Brakes

BrakesTektro Aquila Mechanical Disc w/ 6" Rotor brakes, Alloy levers

Cockpit & Contact Points

Headset1 1/8" sealed
HandlebarGT Alloy Riser Bar w/ 25.4 Clamp
Handlebar ExtensionsNot included
StemGT Exclusive Alloy
SaddleWTB GT exclusive w/ waterproof cover
SeatpostGT Design Alloy

Wheels & Tires

HubsFront: Alloy Disc QR, Rear: Alloy Disc Cassette QR
RimsAlex ACE-17, 32-hole
SpokesStainless, 14ga. (2.0mm)
Spoke NipplesBrass
Front Tire700 x 40c Schwalbe Landcruiser
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build48/38/28T · 11–32T · 8-speed
Lowest0.88:1 Highest4.36:1 Total range499%
Estimated speed At 90 RPM Lowest gear6.5 mph Highest gear32.3 mph

Uses front tire 700C×40; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
700 x 40c Schwalbe Landcruiser
Bottom bracket · Original
Shimano Octalink
More parts (5)Fewer parts
Saddle · Original
WTB GT exclusive w/ waterproof cover
Crankset · Original
Shimano Acera

28/38/48 teeth

Rear derailleur · Original
Shimano Alivio
Shifters · Original
Shimano SL-M360 RapidFire
Rims · Original
Alex ACE-17

32-hole

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 40c Schwalbe Landcruiser
Drivetrain
8-speed
Bottom bracket / shell
Shimano Octalink
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: SR Suntour NEX-4610, 50mm travel · Single

Archived: Fork: SR Suntour NEX-4610, 50mm travel

Archived: Group: Hybrid Mix · Shifters: Shimano SL-M360 RapidFire · Front derailleur: Shimano C102, clamp on · Rear derailleur: Shimano Alivio · Crankset: Shimano Acera, 28/38/48 teeth · Bottom bracket: Shimano Octalink · Cassette: Shimano Hyperglide · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC HG40

Archived: Brakes: Tektro Aquila Mechanical Disc w/ 6" Rotor brakes, Alloy levers

Archived: Wheel size: 700c wheels · Rims: Alex ACE-17, 32-hole · Hubs: Front: Alloy Disc QR, Rear: Alloy Disc Cassette QR · Front tire: 700 x 40c Schwalbe Landcruiser

Controls and contact points

Archived: Headset: 1 1/8" sealed · Handlebar: GT Alloy Riser Bar w/ 25.4 Clamp · Stem: GT Exclusive Alloy · Seatpost: GT Design Alloy · Saddle: WTB GT exclusive w/ waterproof cover · Pedals: Alloy
