Lowest0.80:1
Highest4.18:1
Total range523%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

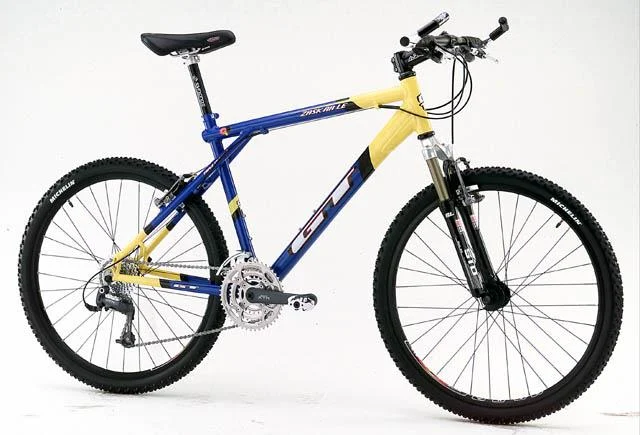

1997 GT Zaskar LE
Original specifications: Shimano XTR 950 drivetrain · 26" wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #66508- Model year
- 1997
- Category
- Mountain
- Original MSRP
- $3,350.00
- Sizes
- 14.5", 16", 18", 19", 20"
- Colors
- Blue
- Geometry
- Legacy reference
- In this record
- 27 specifications · archived image · original MSRP · geometry
Model history 6 other years
Browse other years
Compare side by side
Identification clues
1997 archived details
- Published colors
- Blue
- Frame
- 6061 T6 aluminum, butted
- Original equipment
- Shimano XTR 950
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 T6 aluminum, butted · Shimano XTR 950 · 26" wheels
Frameset
| Frame Construction | Welded |
|---|---|
| Frame Material | 6061 T6 aluminum, butted |
| Fork | Rock Shox Judy SL |
| Fork Material | Magnesium, triple-clamp crown |
Drivetrain
| Component Group | Shimano XTR 950 |
|---|---|
| Shifters | Shimano XTR RapidFire SL |
| Front Derailleur | Shimano XTR top-swing, bottom-pull |
| Rear Derailleur | Shimano XTR SGS |
| Crankset | Shimano XTR M950-IG, 24/34/46 teeth |
| Bottom Bracket | Shimano BB-M950, 112.5 mm spindle |
| BB Shell Width | 73mm English |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | Shimano, 1/2 x 3/32" |
| Pedals | Shimano PD-M747 SPD clipless |
Brakes
| Brakes | Shimano XTR V-Brake brakes, Shimano XTR levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Dia-Compe Kontak Aheadset DL-2 |
|---|---|
| Handlebar | Kore thermoplastic |
| Handlebar Extensions | GT Cut Weld |
| Stem | Kore Elite |
| Saddle | WTB SST, titanium rails, w/kevlar sides |
| Seatpost | Kore Elite II, 27.2 mm diameter |
Wheels & Tires
| Hubs | GT CNC |
|---|---|
| Rims | Mavic 217 SUP, 32-hole |
| Spokes | DT Revolution stainless steel, 2.0mm double butted |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.10" Michelin Wild Gripper Lite-S kevlar |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 575 mm |
| Head-tube angle | 70.5° |
| Seat-tube angle | 73.5° |
| Chainstay / rear center | 425 mm |
| Wheelbase | 1072 mm |
| Fork offset / rake | 40.6 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Kore Elite II
27.2 mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Shimano
1/2 x 3/32"
Replacement search: 8-speed bicycle chain Before ordering: Check chain width and length.
26 x 2.10" Michelin Wild Gripper Lite-S kevlar
Michelin Wild Gripper Lite S kevlar on eBaySponsored links
More parts (9)Fewer parts
Shimano XTR V-Brake brakes
Shimano XTR levers
Shimano BB-M950
112.5 mm spindle
Shimano PD-M747 SPD clipless
WTB SST
titanium rails, w/kevlar sides
Shimano XTR M950-IG
24/34/46 teeth
Shimano XTR top-swing
bottom-pull
Shimano XTR SGS
Shimano XTR RapidFire SL
Mavic 217 SUP
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Michelin Wild Gripper Lite-S kevlar
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-M950, 112.5 mm spindle · 73mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Welded · Fork: Rock Shox Judy SL · Magnesium, triple-clamp crown
Suspension
Evaluate the suspension →Archived: Fork: Rock Shox Judy SL
Drivetrain
Check drivetrain wear →Archived: Group: Shimano XTR 950 · Shifters: Shimano XTR RapidFire SL · Front derailleur: Shimano XTR top-swing, bottom-pull · Rear derailleur: Shimano XTR SGS · Crankset: Shimano XTR M950-IG, 24/34/46 teeth · Bottom bracket: Shimano BB-M950, 112.5 mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Shimano, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano XTR V-Brake brakes, Shimano XTR levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Mavic 217 SUP, 32-hole · Hubs: GT CNC · Front tire: 26 x 2.10" Michelin Wild Gripper Lite-S kevlar
Controls and contact points
Archived: Headset: 1 1/8" threadless Dia-Compe Kontak Aheadset DL-2 · Handlebar: Kore thermoplastic · Stem: Kore Elite · Seatpost: Kore Elite II, 27.2 mm diameter · Saddle: WTB SST, titanium rails, w/kevlar sides · Pedals: Shimano PD-M747 SPD clipless
