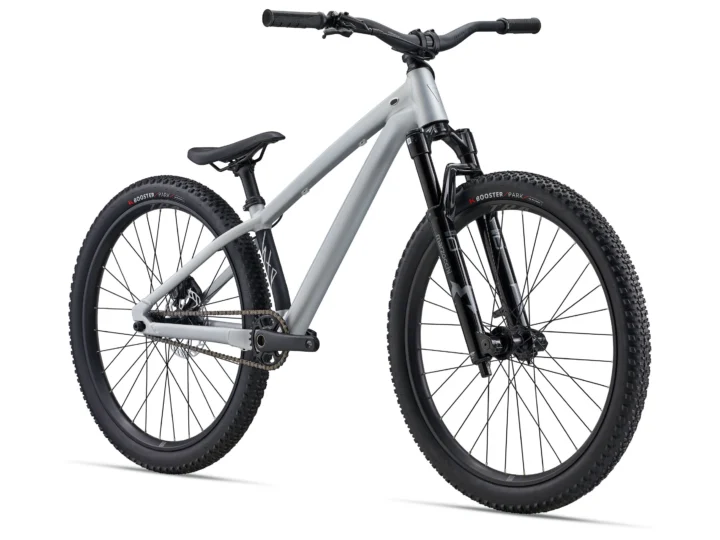

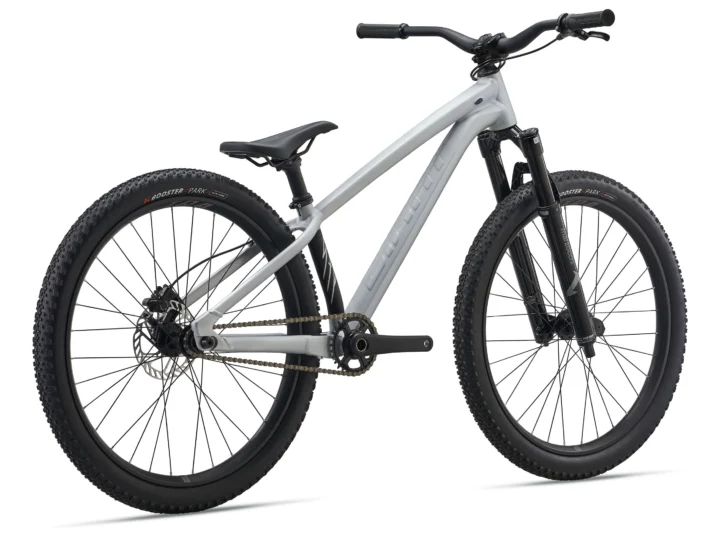

2026 Giant STP 26

Original specifications: geometry for 1 published size.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001283
Model year
2026
Category
Mountain
Original MSRP
$1,950.00
Sizes
OSFM
Colors
Quicksilver
Geometry
1 manufacturer size
In this record
17 specifications · 6 archived images · original MSRP · geometry
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2026 archived details

Published colors
Quicksilver
Frame
Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAluminum

Manufacturer catalog

Published sizes and colors

1 size · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

OSFM

Published colors

Quicksilver

Frameset

Frame ConstructionALUXX-grade aluminum, 10x135mm horizontal sliding dropouts
Frame MaterialAluminum

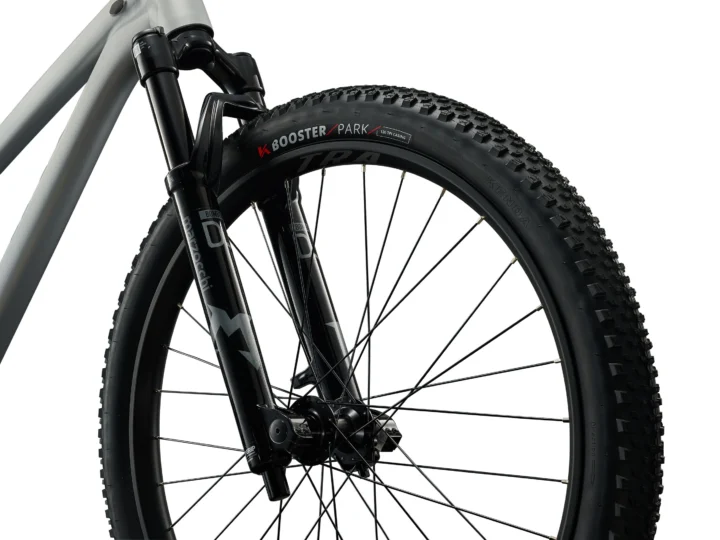

ForkMarzocchi Bomber DJ, 36mm stanchions, GRIP damper, 20x110mm, 100mm travel

Drivetrain

CranksetProwheel forged, alloy, 30t, 165mm
Bottom Bracket73mm, threaded
Cassette13t, stainless steel
ChainKMC Z1 wide

Brakes

Brakes[F] mechanical disc, [R] Shimano MT500, hydraulic TR-55 [F]180mm, [R]160mm rotors

Cockpit & Contact Points

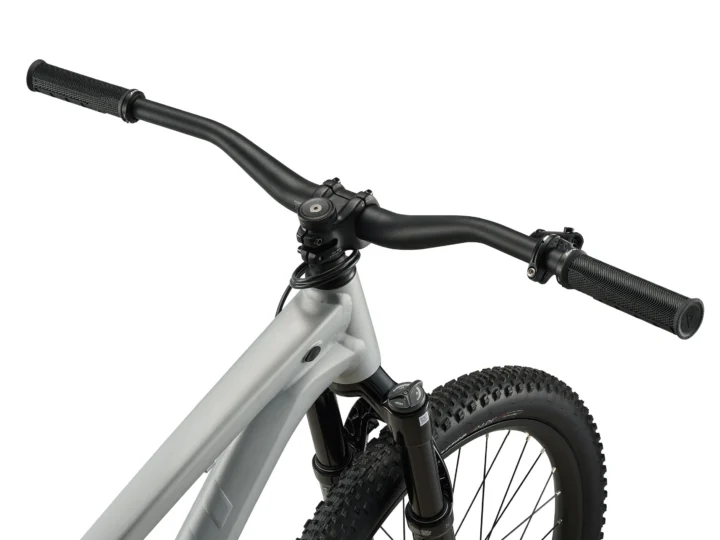

HandlebarGiant Contact TR35, alloy, 760mm, 35mm rise
StemGiant Contact 35 DJ, 0-degree, 35mm

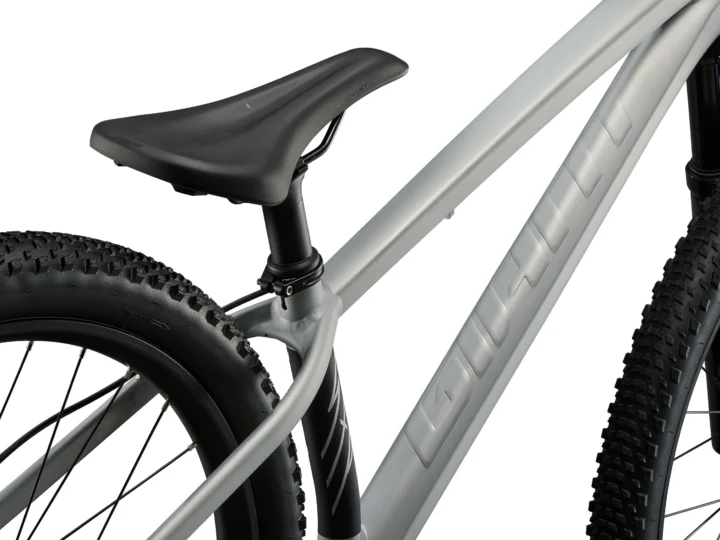

SaddleGiant Ergo Contact Trail
Seatpostalloy, two-bolt, 30.9x300mm

Wheels & Tires

HubsGiant Disc, 32h, [F] 20x110 [R] 10x135 thru-axle, alloy, disc
RimsGiant TRA 2, 26", alloy
Spokesstainless, 14g
Front TireKenda Booster, 26x2.25"
Rear TireKenda Booster, 26x2.25"

Geometry

1 size · 16 measurements

Frame measurements by size.

All geometry measurements1 size · 16 measurements
MeasurementOne Size
Seat tube310 mm
Top tube594 mm
Head tube120 mm
Head-tube angle68.5°
Seat-tube angle72°
Chainstay / rear center385 mm
Wheelbase1047 mm
Bottom-bracket drop25 mm
Reach410 mm
Stack566 mm
Standover height672 mm
Fork offset / rake37 mm
Trail95 mm
Crank length165 mm
Stem length35 mm
Handlebar width760 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes30T · 13T
Ratio2.31:1
Estimated speed At 90 RPM Gear16.4 mph

Rear tire: 26×2.25.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Seatpost · Original
alloy

two-bolt, 30.9x300mm

Retailer offers
Chain · Original
KMC Z1 wide
Front tire · Original
Kenda Booster

26x2.25"

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Service essentialsQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda Booster, 26x2.25"Check: Verify the fitted tire’s size marking and rim type.
Rear tire
Kenda Booster, 26x2.25"Check: Verify the rear size; it may differ from the front.
Seatpost diameter
30.9 mmCheck: Read the post’s diameter marking; seat-clamp size differs.
Bottom bracket / shell
73mm, threadedCheck: Verify shell type and width, crank interface, and spindle length or spacers.

Not confirmed in this record: Drivetrain. Check the fitted parts for these details.

Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
0 of 20 checked Progress stays in this browser for this record.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Giant STP 26 · Mountain · Published sizes: OSFM

Archived: Frame: ALUXX-grade aluminum, 10x135mm horizontal sliding dropouts · Fork: Marzocchi Bomber DJ, 36mm stanchions, GRIP damper, 20x110mm, 100mm travel

Archived: Fork: Marzocchi Bomber DJ, 36mm stanchions, GRIP damper, 20x110mm, 100mm travel

Archived: Crankset: Prowheel forged, alloy, 30t, 165mm · Bottom bracket: 73mm, threaded · Cassette: 13t, stainless steel · Chain: KMC Z1 wide

Archived: Brakes: [F] mechanical disc, [R] Shimano MT500, hydraulic TR-55 [F]180mm, [R]160mm rotors

Archived: Rims: Giant TRA 2, 26", alloy · Hubs: Giant Disc, 32h, [F] 20x110 [R] 10x135 thru-axle, alloy, disc · Front tire: Kenda Booster, 26x2.25" · Rear tire: Kenda Booster, 26x2.25"

Controls and contact points

Archived: Handlebar: Giant Contact TR35, alloy, 760mm, 35mm rise · Stem: Giant Contact 35 DJ, 0-degree, 35mm · Seatpost: alloy, two-bolt, 30.9x300mm · Saddle: Giant Ergo Contact Trail
