Velopedia Bicycle Archive

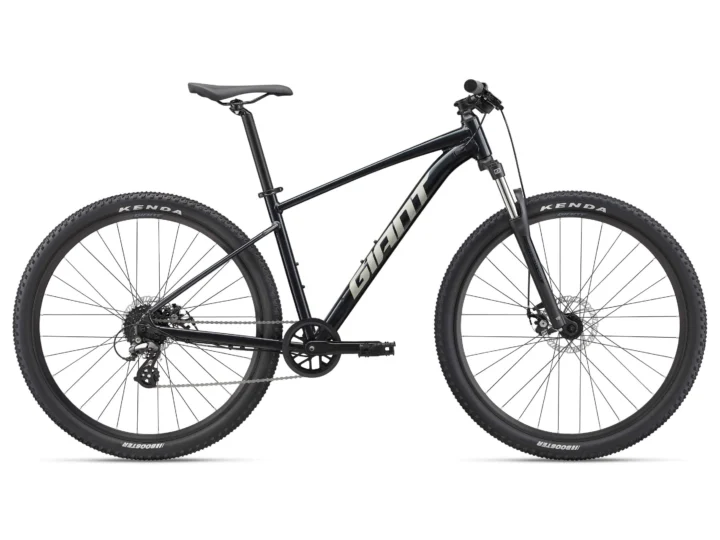

2022 Giant Talon 4
Original specifications: 14.66 kg (32 lb 5oz) - Size (XL) published weight · geometry for 7 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900002070- Model year
- 2022
- Category
- Mountain
- Original MSRP
- $630.00
- Sizes
- 27.5: XS, S, M, L, 29: S, XL
- Colors
- Metallic Black, Metal
- Weight
- 14.66 kg (32 lb 5oz) - Size (XL)
- Geometry
- 7 manufacturer sizes
- In this record
- 21 specifications · 2 archived images · original MSRP · geometry
Model history 3 other years
Browse other years
Compare side by side
Identification clues
2022 archived details
- Published colors
- Metallic Black, Metal
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum
Frameset
| Frame Construction | ALUXX-Grade Aluminum, disc |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCE, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) |
| Fork Material | Steel |
Drivetrain
| Shifters | microSHIFT SL-M718, 1x8 |
|---|---|
| Rear Derailleur | microSHIFT RD-M619 |
| Crankset | ProWheel A10XPP, 30t (27.5) or 32t (29) XS: 165mm (27.5) S: 170mm (27.5) / 170mm (29) M: 170mm (27.5) / 175mm (29) L: 175mm (27.5) / 175mm (29) XL: 175mm (29) |
| Bottom Bracket | cartridge |
| Cassette | microSHIFT CS-H083, 12-46 |
| Chain | KMC 8.3 |
| Pedals | MTB caged |
Brakes
| Brakes | TKB-172, mechanical [F]160mm, [R]160mm rotors |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect Trail, 31.8mm XS: 730mm (27.5) S: 780mm (27.5) / 780mm (29) M: 780mm (27.5) / 780mm (29) L: 780mm (27.5) / 780mm (29) XL: 780mm (29) |
|---|---|
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (27.5) / 60mm (29) L: 70mm (27.5) / 70mm (29) XL: 80mm (29) |
| Saddle | Giant custom |
| Seatpost | Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29) |
Wheels & Tires
| Hubs | alloy, ball bearing |
|---|---|
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Spokes | stainless, 14g |
| Front Tire | Kenda Booster 27.5 or 29x2.2", wire bead |
| Rear Tire | Kenda Booster 27.5 or 29x2.2", wire bead |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements7 sizes · 17 measurements
| Measurement | XS (27.5") | S (27.5") | S (29") | M (27.5") | M (29") | L (29") | XL (29") |
|---|---|---|---|---|---|---|---|
| Seat tube | 350 mm | 385 mm | 390 mm | 430 mm | 440 mm | 490 mm | 535 mm |
| Top tube | 544 mm | 569 mm | 577 mm | 597 mm | 599 mm | 620 mm | 639 mm |
| Head tube | 95 mm | 115 mm | 95 mm | 130 mm | 105 mm | 125 mm | 140 mm |
| Head-tube angle | 67.5° | 67.5° | 68.5° | 67.5° | 68.5° | 68.5° | 68.5° |
| Seat-tube angle | 74° | 74° | 74° | 74° | 74° | 74° | 74° |
| Chainstay / rear center | 440 mm | 440 mm | 455 mm | 440 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1079 mm | 1106 mm | 1126 mm | 1137 mm | 1150 mm | 1172 mm | 1192 mm |
| Bottom-bracket drop | 45 mm | 45 mm | 55 mm | 45 mm | 55 mm | 55 mm | 55 mm |
| Reach | 385 mm | 405 mm | 404 mm | 425 mm | 424 mm | 439 mm | 454 mm |
| Stack | 533 mm | 571 mm | 602 mm | 598 mm | 611 mm | 630 mm | 644 mm |
| Standover height | 686 mm | 711 mm | 732 mm | 748 mm | 766 mm | 805 mm | 839 mm |
| Fork offset / rake | 42 mm | 42 mm | 51 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 103 mm | 103 mm | 94 mm | 103 mm | 94 mm | 94 mm | 94 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 175 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 40 mm | 50 mm | 50 mm | 60 mm | 60 mm | 70 mm | 80 mm |
| Handlebar width | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Wheel size | 27.5" | 27.5" | 29" | 27.5" | 29" | 29" | 29" |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Lowest0.70:1
Highest2.67:1
Total range383%
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
