Velopedia Bicycle Archive

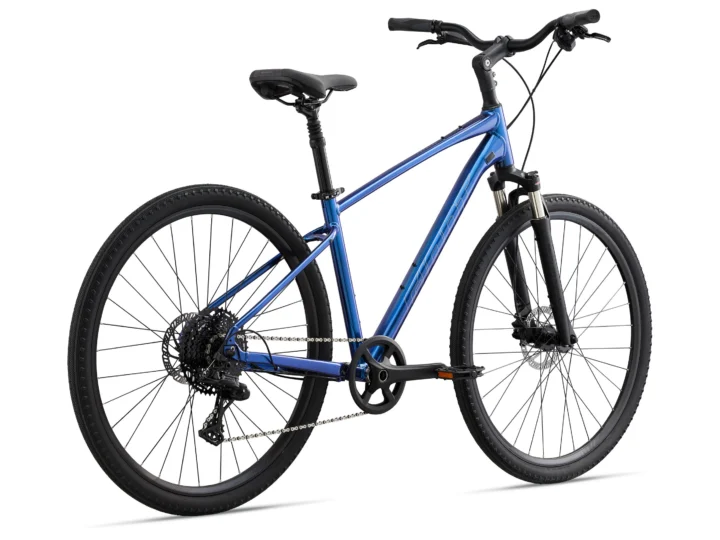

2022 Giant Cypress 1
Original manufacturer specifications including 14.02 kg (30 lb 13oz) - Size (XL) published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2022
- Category
- City & Commuter
- Original MSRP
- $920.00
- Sizes
- S, M, L, XL
- Colors
- Chameleon Neptune
- Weight
- 14.02 kg (30 lb 13oz) - Size (XL)
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900002031
Frameset
| Frame Construction | ALUXX-Grade Aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | NCX-D LO 700c air, 63mm travel |
| Rear Shock | N/A |
Drivetrain
| Shifters | microSHIFT Advent, 1x10 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | microSHIFT Advent |
| Crankset | ProWheel RPL, 40t S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | sealed cartridge |
| Cassette | microSHIFT Advent, 11x48 |
| Chain | KMC X10 |
| Pedals | fitness platform |
Brakes
| Brakes | Tektro hydraulic [F]160mm, [R]160mm rotors |
|---|
Cockpit & Contact Points
| Handlebar | alloy, mid-rise, 31.8mm S:64cm, M:64cm, L:68cm, XL:68cm |
|---|---|
| Stem | alloy, quill, 31.8mm, adjustable S:90mm, M:90mm, L:110mm, XL:110mm |
| Saddle | Selle Royal Vivo Comfort, reflective |
| Seatpost | alloy suspension, 30.9mm S:300mm, M:300mm, L:350mm, XL:350mm |
Wheels & Tires
| Hubs | alloy, 32h |
|---|---|
| Rims | Giant double-wall aluminum |
| Spokes | stainless, 14g |
| Front Tire | Innova Multi Purpose Hybrid, anti puncture, 700x45c |
| Rear Tire | Innova Multi Purpose Hybrid, anti puncture, 700x45c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 385 mm | 435 mm | 485 mm | 535 mm |
| Top tube | 570 mm | 585 mm | 600 mm | 615 mm |
| Head tube | 130 mm | 145 mm | 160 mm | 175 mm |
| Head-tube angle | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat-tube angle | 73° | 73° | 72.5° | 72.5° |
| Chainstay / rear center | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1089 mm | 1105 mm | 1121 mm | 1137 mm |
| Bottom-bracket drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Reach | 381 mm | 392 mm | 397 mm | 407 mm |
| Stack | 617 mm | 631 mm | 645 mm | 659 mm |
| Standover height | 718 mm | 746 mm | 783 mm | 820 mm |
| Fork offset / rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 83.6 mm | 83.8 mm | 83.8 mm | 83.8 mm |
| Crank length | 170 mm | 175 mm | 175 mm | 175 mm |
| Stem length | 80 mm | 80 mm | 90 mm | 90 mm |
| Handlebar width | 640 mm | 680 mm | 680 mm | 680 mm |
| Wheel size | 700C | 700C | 700C | 700C |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: The head angle of 70.5° sits toward the steeper end. The seat angle of 73° sits toward the more relaxed end. Its stack of 617 mm sits toward the taller end.
Compared with 19 distinct city & commuter geometries in the Small-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: The head angle of 70.5° sits toward the steeper end. The seat angle of 73° sits toward the more relaxed end. Its reach of 392 mm sits toward the shorter end.
Compared with 18 distinct city & commuter geometries in the Medium-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 397 mm sits toward the shorter end. The head angle of 70.5° sits toward the steeper end. The seat angle of 72.5° sits toward the more relaxed end.
Compared with 17 distinct city & commuter geometries in the Large-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 407 mm sits toward the shorter end. The head angle of 70.5° sits toward the steeper end. Its wheelbase of 1137 mm sits toward the shorter end.
Compared with 12 distinct city & commuter geometries in the XL-equivalent size cohort from model years 2020–2024 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X10
Exact archived model
microSHIFT Advent, 11x48
Interpreted as microSHIFT ADVENT · 10-speed Named component · published drivetrain speed — verify exact version
Selle Royal Vivo Comfort, reflective
Named archived component — verify exact version
More qualified parts (3)
microSHIFT Advent
Interpreted as microSHIFT ADVENT · 10-speed Named component · published drivetrain speed — verify exact version
microSHIFT Advent, 1x10
Interpreted as microSHIFT ADVENT · 10-speed Component family — verify exact version
30.9 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
- DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2022 Giant Cypress 1 · City/Commuter · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-Grade Aluminum · Fork: NCX-D LO 700c air, 63mm travel
Suspension
Evaluate the suspension →Archived: Fork: NCX-D LO 700c air, 63mm travel
Drivetrain
Check drivetrain wear →Archived: Shifters: microSHIFT Advent, 1x10 · Rear derailleur: microSHIFT Advent · Crankset: ProWheel RPL, 40t S:170mm, M:170mm, L:175mm, XL:175mm · Bottom bracket: sealed cartridge · Cassette: microSHIFT Advent, 11x48 · Chain: KMC X10
Brakes
Inspect the brakes →Archived: Brakes: Tektro hydraulic [F]160mm, [R]160mm rotors
Wheels and tires
Check wheels and tires →Archived: Rims: Giant double-wall aluminum · Hubs: alloy, 32h · Front tire: Innova Multi Purpose Hybrid, anti puncture, 700x45c · Rear tire: Innova Multi Purpose Hybrid, anti puncture, 700x45c
Controls and contact points
Archived: Handlebar: alloy, mid-rise, 31.8mm S:64cm, M:64cm, L:68cm, XL:68cm · Stem: alloy, quill, 31.8mm, adjustable S:90mm, M:90mm, L:110mm, XL:110mm · Seatpost: alloy suspension, 30.9mm S:300mm, M:300mm, L:350mm, XL:350mm · Saddle: Selle Royal Vivo Comfort, reflective · Pedals: fitness platform
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery
Recently checked marketplace data
Market Snapshot
Velopedia did not find a close used eBay listing in the latest snapshot. New and used listings remain separate.
Evidence standard
Fixed-price and Best Offer item prices only
Shipping and tax excluded
Active asks, not completed sales
No close current matches found. Velopedia did not find an eBay listing confident enough to include in the latest snapshot.
Listings shown have not passed their eBay-supplied end time. Velopedia rechecks matched bicycles on a protected weekly cycle; availability can still change between checks. Price calculations use active fixed-price and Best Offer item prices before shipping and tax. Auction bids, auction-only prices, classified ads, lower-confidence Review candidates and ended listings are excluded. These observations are not completed-sale prices, a certified appraisal or a guarantee of value.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
