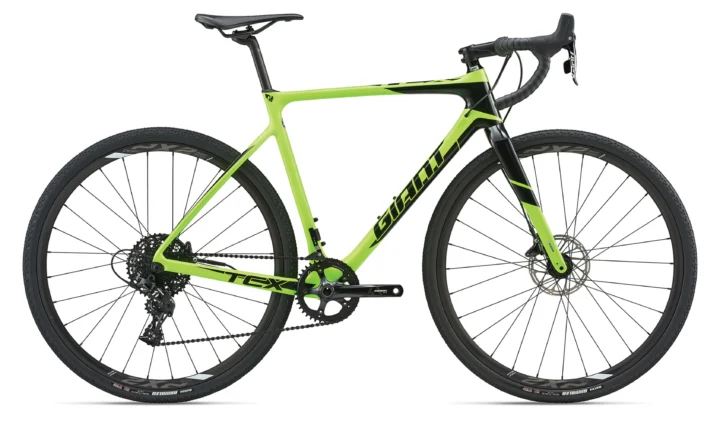

2018 Giant TCX Advanced SX
Original manufacturer specifications including geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2018
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,120.00
- Sizes
- S, M, M/L, L, XL
- Colors
- Neon Green/Black, Matte Grey/Neon Orange/Black
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900002082
Model history 1 other year
Frameset
| Frame Construction | Advanced-grade composite |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Advanced-grade composite, Hybrid OverDrive steerer |
| Fork Material | Carbon Fiber |
| Rear Shock | N / A |
Drivetrain
| Shifters | SRAM Apex 1 |
|---|---|
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Apex 1X |
| Crankset | SRAM S350 1X, X-Sync Chainring, 40t |
| Bottom Bracket | SRAM GXP |
| Cassette | SRAM PG-1130 11x42, 11-Speed |
| Chain | KMC X11EL-1BPBP |
| Pedals | N/A |
Brakes
| Brakes | SRAM Apex 1X HRD, hydraulic disc, 160mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect XR Ergo-Control, 31.8mm |
|---|---|
| Stem | Giant Connect |
| Saddle | Giant Contact Neutral |
| Seatpost | Giant D-Fuse, composite |
Wheels & Tires
| Hubs | Giant Performance Tracker Disc, Sealed Bearings, 12mm axles, 28h |
|---|---|
| Rims | Giant PX-2 Disc, Tubeless |
| Spokes | Sapim Race, 14/15g |
| Front Tire | Maxxis Rambler, Tubeless, 700x40 |
| Rear Tire | Maxxis Rambler, Tubeless, 700x40 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seat tube | 500 mm | 525 mm | 545 mm | 555 mm | 565 mm |
| Top tube | 530 mm | 545 mm | 560 mm | 575 mm | 590 mm |
| Head tube | 130 mm | 145 mm | 160 mm | 175 mm | 190 mm |
| Head-tube angle | 71° | 71.5° | 72° | 72.5° | 72.5° |
| Seat-tube angle | 73.5° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1014 mm | 1019 mm | 1030 mm | 1040 mm | 1055 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Reach | 370 mm | 375 mm | 385 mm | 395 mm | 406 mm |
| Stack | 540 mm | 556 mm | 572 mm | 589 mm | 603 mm |
| Standover height | 758 mm | 803 mm | 821 mm | 832 mm | 843 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 65 mm | 62 mm | 59 mm | 59 mm |
| Crank length | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Stem length | 90 mm | 110 mm | 110 mm | 110 mm | 120 mm |
| Handlebar width | 400 mm | 420 mm | 420 mm | 440 mm | 440 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. Its stack of 540 mm sits somewhat lower than typical. The head angle of 71° sits somewhat steeper than typical.
Compared with 27 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2015–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. Its stack of 556 mm sits toward the lower end. Its wheelbase of 1019 mm sits toward the shorter end.
Compared with 26 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2015–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry M/L geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. The head angle of 72° sits toward the steeper end. The chainstay of 430 mm sits somewhat shorter than typical.
Compared with 26 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2015–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M/L geometry L geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. Its stack of 589 mm sits toward the lower end. The head angle of 72.5° sits toward the steeper end.
Compared with 18 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2015–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its bottom-bracket drop of 60 mm sits toward the shallower-drop end. Its stack of 603 mm sits toward the lower end. The head angle of 72.5° sits toward the steeper end.
Compared with 18 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2015–2022 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
KMC X11EL-1BPBP
Exact archived model
SRAM PG-1130 11x42, 11-Speed
Exact archived model
Maxxis Rambler, Tubeless, 700x40
Named tire and published size
More qualified parts (4)
SRAM GXP
Named archived component — verify dimensions
SRAM S350 1X, X-Sync Chainring, 40t
Named archived component — verify exact version
SRAM Apex 1X
Interpreted as SRAM Apex · 11-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
SRAM Apex 1
Interpreted as SRAM Apex · 11-speed Named component · published drivetrain speed — verify exact version
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 11-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2018 Giant TCX Advanced SX · Cyclocross/Gravel · Published sizes: S, M, M/L, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced-grade composite · Fork: Advanced-grade composite, Hybrid OverDrive steerer · Carbon Fiber
Suspension
Evaluate the suspension →Archived: Fork: Advanced-grade composite, Hybrid OverDrive steerer · Rear shock: N / A
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Apex 1 · Rear derailleur: SRAM Apex 1X · Crankset: SRAM S350 1X, X-Sync Chainring, 40t · Bottom bracket: SRAM GXP · Cassette: SRAM PG-1130 11x42, 11-Speed · Chain: KMC X11EL-1BPBP
Brakes
Inspect the brakes →Archived: Brakes: SRAM Apex 1X HRD, hydraulic disc, 160mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant PX-2 Disc, Tubeless · Hubs: Giant Performance Tracker Disc, Sealed Bearings, 12mm axles, 28h · Front tire: Maxxis Rambler, Tubeless, 700x40 · Rear tire: Maxxis Rambler, Tubeless, 700x40
Controls and contact points
Archived: Handlebar: Giant Connect XR Ergo-Control, 31.8mm · Stem: Giant Connect · Seatpost: Giant D-Fuse, composite · Saddle: Giant Contact Neutral
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
