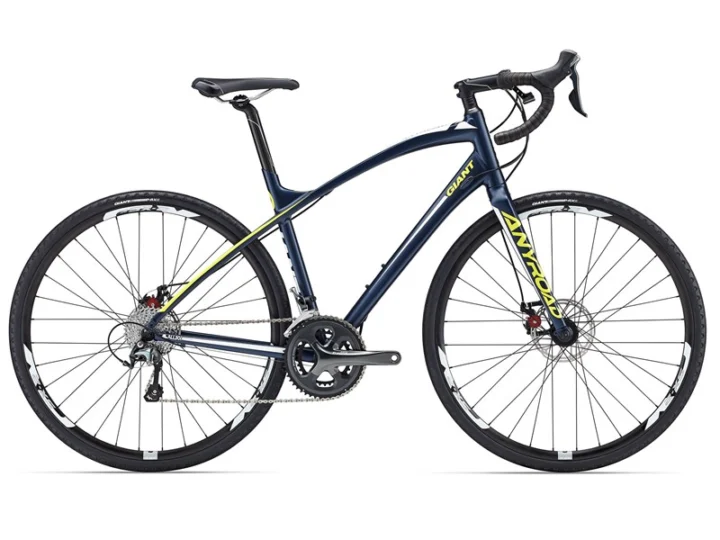

2016 Giant AnyRoad 1
Original manufacturer specifications including geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2016
- Category
- Road
- Sizes
- XS, S, M, L, XL
- Colors
- Dark Blue/Yellow
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 23 preserved details · archived image · preserved geometry
- Archive ID
- 900002343
Model history 3 other years
Frameset
| Frame Construction | ALUXX-grade aluminum |
|---|---|
| Frame Material | Aluminum |
| Fork | Composite, with alloy steerer |
| Fork Material | Carbon Fiber |
| Rear Shock | N/A |
Drivetrain
| Shifters | Shimano Tiagra |
|---|---|
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano Tiagra |
| Crankset | Shimano Tiagra, 34/50 |
| Bottom Bracket | Threaded, Sealed |
| Cassette | Shimano Tiagra 11x34, 10-speed |
| Chain | KMC X10 |
| Pedals | N/A |
Brakes
| Brakes | SRAM BB5 Road, Mechanical disc, [F] 160mm [R] 140mm |
|---|
Cockpit & Contact Points
| Handlebar | Giant Connect XR Ergo-control, 31.8mm |
|---|---|
| Stem | Giant Connect |
| Saddle | Giant Connect, forward |
| Seatpost | Giant Connect, Composite, 30.9mm |
Wheels & Tires
| Hubs | Giant Sport Tracker Disc, 32h |
|---|---|
| Rims | Giant SX-2 Disc |
| Spokes | Stainless Steel, 14g |
| Front Tire | Giant P-RX 2, 700x32 |
| Rear Tire | Giant P-RX 2, 700x32 |
Size-specific frame data
Geometry
Published geometry, partial coordinatesExplore this exact published size using head angle, wheelbase and rear center. Stack and reach were not published, so fit and frame-position analysis remain disabled.
| Measurement | XS/17 | S/18 | M/18.5 | L/20.5 | XL/22 |
|---|---|---|---|---|---|
| Top tube | 502.92 mm | 525.78 mm | 541.02 mm | 568.96 mm | 589.28 mm |
| Head tube | 139.7 mm | 160.02 mm | 185.42 mm | 215.9 mm | 236.22 mm |
| Head-tube angle | 70.5° | 71° | 72° | 72° | 72° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73° | 73° |
| Chainstay / rear center | 429.26 mm | 429.26 mm | 429.26 mm | 429.26 mm | 429.26 mm |
| Wheelbase | 1003.3 mm | 1016 mm | 1016 mm | 1038.86 mm | 1061.72 mm |
| Standover height | 711.2 mm | 718.82 mm | 734.06 mm | 769.62 mm | 795.02 mm |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS/17 geometry
Archive context: The chainstay of 429.3 mm sits somewhat longer than typical. Its wheelbase of 1003.3 mm sits somewhat longer than typical. The seat angle of 74.5° sits somewhat more relaxed than typical.
Compared with 14 distinct road geometries in the XS-equivalent size cohort from model years 2015–2018 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Explore this size’s published geometry S/18 geometry
Archive context: Its wheelbase of 1016 mm sits toward the longer end. The chainstay of 429.3 mm sits toward the longer rear-center end. The seat angle of 74° sits somewhat more relaxed than typical.
Compared with 20 distinct road geometries in the Small-equivalent size cohort from model years 2015–2018 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Explore this size’s published geometry M/18.5 geometry
Archive context: Its wheelbase of 1016 mm sits toward the longer end. The chainstay of 429.3 mm sits toward the longer rear-center end. The head angle of 72° sits somewhat slacker than typical.
Compared with 20 distinct road geometries in the Medium-equivalent size cohort from model years 2015–2018 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Explore this size’s published geometry L/20.5 geometry
Archive context: The head angle of 72° sits toward the slacker end. Its wheelbase of 1038.9 mm sits toward the longer end. The chainstay of 429.3 mm sits somewhat longer than typical.
Compared with 13 distinct road geometries in the Large-equivalent size cohort from model years 2015–2018 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Explore this size’s published geometry XL/22 geometry
Archive context: Its wheelbase of 1061.7 mm sits toward the longer end. The head angle of 72° sits toward the slacker end. The chainstay of 429.3 mm sits somewhat longer than typical.
Compared with 12 distinct road geometries in the XL-equivalent size cohort from model years 2015–2020 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Explore this size’s published geometry Parts & serviceability
Find replacement parts
KMC X10
Exact archived model
Shimano Tiagra 11x34, 10-speed
Interpreted as Shimano Tiagra · 10-speed Component family — verify exact version
Shimano Tiagra, 34/50
Named archived component — verify exact version
More qualified parts (4)
Shimano Tiagra
Interpreted as Shimano Tiagra · 10-speed Named component · published drivetrain speed — verify exact version
Shimano Tiagra
Interpreted as Shimano Tiagra · 10-speed Named component · published drivetrain speed — verify exact version
Shimano Tiagra
Interpreted as Shimano Tiagra · 10-speed Named component · published drivetrain speed — verify exact version
30.9 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesMake sure both cables move freely and the calipers release cleanly. Check pad thickness, rotor wear and rotor alignment.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 10-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2016 Giant AnyRoad 1 · Road · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX-grade aluminum · Fork: Composite, with alloy steerer · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Tiagra · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano Tiagra · Crankset: Shimano Tiagra, 34/50 · Bottom bracket: Threaded, Sealed · Cassette: Shimano Tiagra 11x34, 10-speed · Chain: KMC X10
Brakes
Inspect the brakes →Archived: Brakes: SRAM BB5 Road, Mechanical disc, [F] 160mm [R] 140mm
Wheels and tires
Check wheels and tires →Archived: Rims: Giant SX-2 Disc · Hubs: Giant Sport Tracker Disc, 32h · Front tire: Giant P-RX 2, 700x32 · Rear tire: Giant P-RX 2, 700x32
Controls and contact points
Archived: Handlebar: Giant Connect XR Ergo-control, 31.8mm · Stem: Giant Connect · Seatpost: Giant Connect, Composite, 30.9mm · Saddle: Giant Connect, forward
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
