Velopedia Bicycle Archive
At a glance
Archive #3028398- Model year
- 2012
- Category
- Hybrid
- Original MSRP
- $1,020.00
- Sizes
- XS, S, M, L
- Colors
- Satin White/Green
- In this record
- 17 specifications · 2 archived images · original MSRP
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2012 archived details
- Published colors
- Satin White/Green
- Frame
- ALUXX SL Grade aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildALUXX SL Grade aluminum
Frameset
| Frame Material | ALUXX SL Grade aluminum |
|---|---|
| Fork | Advanced Grade Composite |
Drivetrain
| Shifters | Shimano R440 9spd trigger |
|---|---|
| Front Derailleur | Shimano R-453 |
| Rear Derailleur | Shimano Tiagra 9spd |
| Crankset | Shimano R453 30/39/50t |
| Bottom Bracket | Shimano Sora |
| Cassette | SRAM PG-950 9spd 11-26t |
| Chain | KMC HG-73 |
| Pedals | caged with clips |
Brakes
| Brakes | Tektro R358 Alloy Dual Pivot |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact Flat 31.8mm |
|---|---|
| Stem | Giant Connect 31.8mm |
| Saddle | Giant Performance Road Womens |
| Seatpost | Giant Connect Composite 30.9mm |
Wheels & Tires
| Hubs | Giant 32h Giant 32h |
|---|---|
| Front Tire | Giant PR-3 700x25c |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts

Race Face Ride XC Seatpost Black, 30.9x375mm
Replacement option
More parts (5)Fewer parts
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Giant PR-3 700x25c
- Drivetrain
- 9-speed
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- Shimano Sora
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: ALUXX SL Grade aluminum · Fork: Advanced Grade Composite
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano R440 9spd trigger · Front derailleur: Shimano R-453 · Rear derailleur: Shimano Tiagra 9spd · Crankset: Shimano R453 30/39/50t · Bottom bracket: Shimano Sora · Cassette: SRAM PG-950 9spd 11-26t · Chain: KMC HG-73
Brakes
Inspect the brakes →Archived: Brakes: Tektro R358 Alloy Dual Pivot
Wheels and tires
Check wheels and tires →Archived: Hubs: Giant 32h Giant 32h · Front tire: Giant PR-3 700x25c
Controls and contact points
Archived: Handlebar: Giant Contact Flat 31.8mm · Stem: Giant Connect 31.8mm · Seatpost: Giant Connect Composite 30.9mm · Saddle: Giant Performance Road Womens · Pedals: caged with clips
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

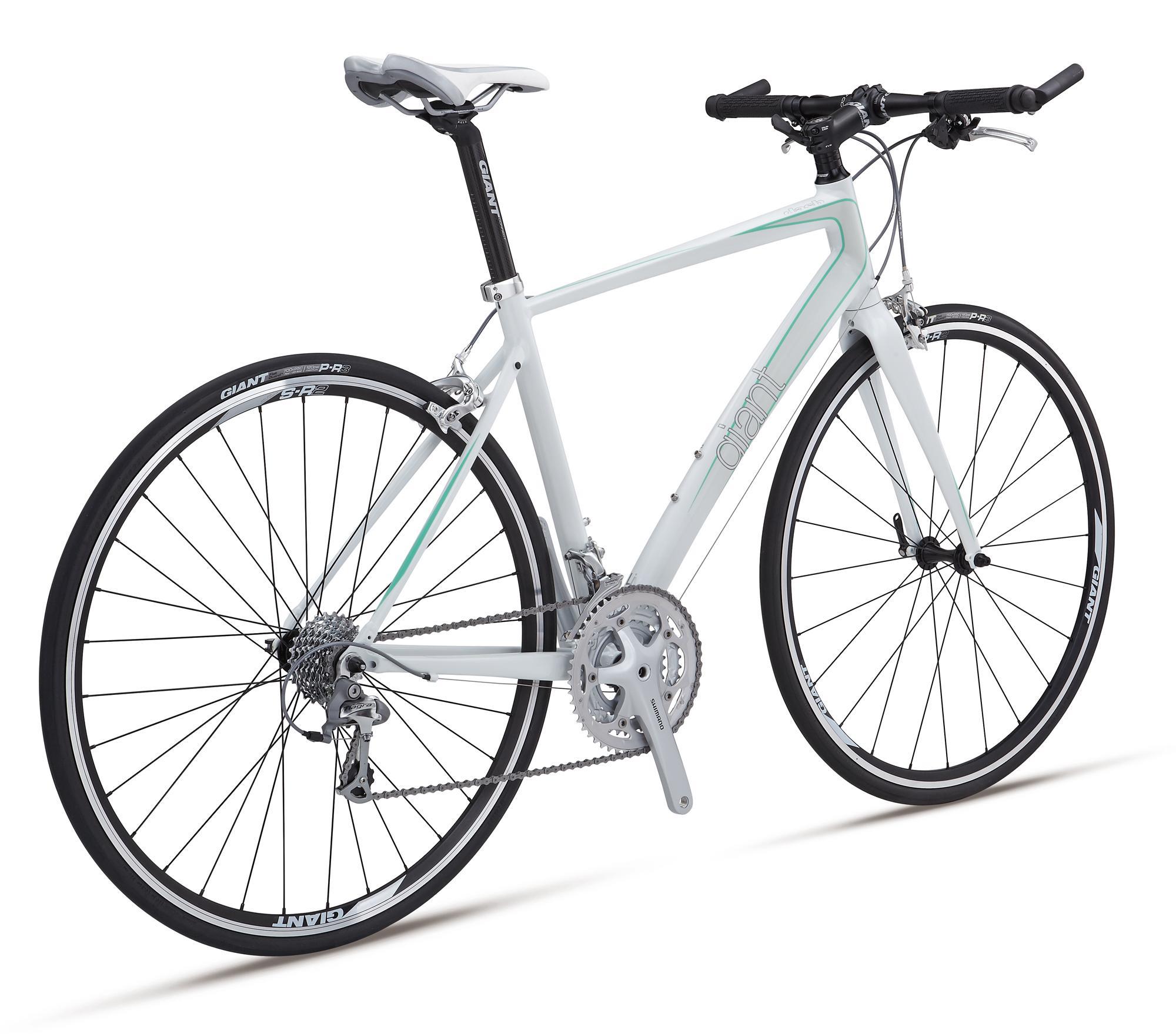

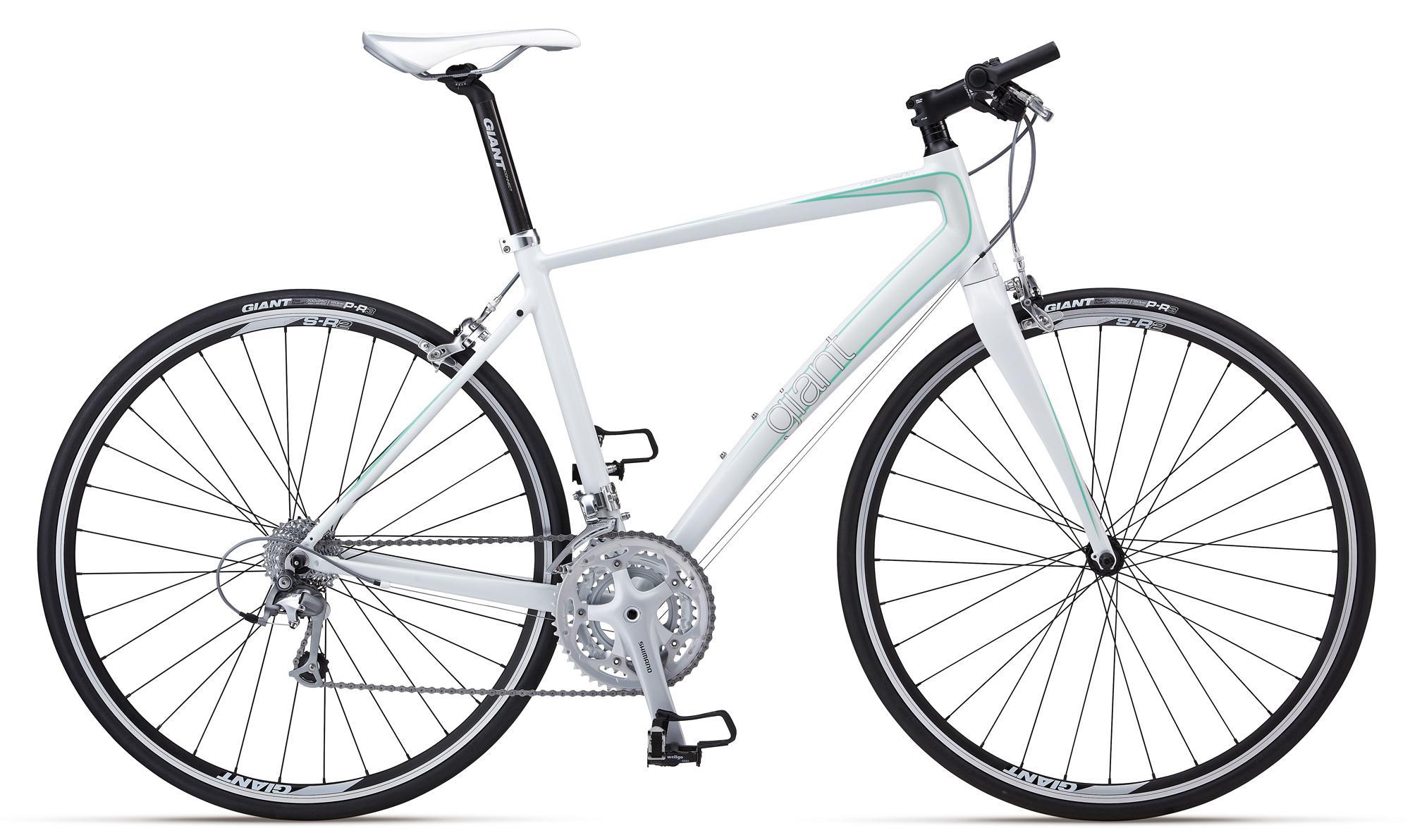

Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
