2011 Giant Trance X1

Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.

Original MSRP
$3,775.00
Sizes
Small, medium, large, xlarge
Colors
Anthracite/Black
Archive ID
22506

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame MaterialAlloy
ForkFox 32 F125RL FIT, 125mm
Fork MaterialSingle
Rear ShockFox Float RP23 Boostvalve, 5" Maestro

Drivetrain

Component GroupShimano
ShiftersShimano Deore XT M775 Rapidfire
Front DerailleurShimano SLX
Rear DerailleurShimano Deore XT Shadow
CranksetShimano Deore XT, 24/32/42 teeth
Bottom BracketShimano Press Fit
CassetteShimano HG81
Rear Cogs10-speed, 11 - 36 teeth
ChainShimano HG74
PedalsNot included

Brakes

BrakesShimano Deore XT M775 brakes, Shimano Deore XT M775 levers

Cockpit & Contact Points

HandlebarGiant Contact TR low-rise 31.8
Handlebar ExtensionsNot included
StemGiant Contact
SaddleFi'zi:k Gobi XM
SeatpostGiant Contact, 30.9mm diameter

Wheels & Tires

HubsShimano Deore XT
RimsShimano Deore XT
SpokesShimano Deore XT
Front Tire26 x 2.1" Kenda Nevegal
Wheel Size26" wheels

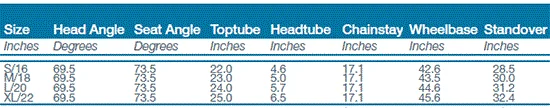

Gallery
