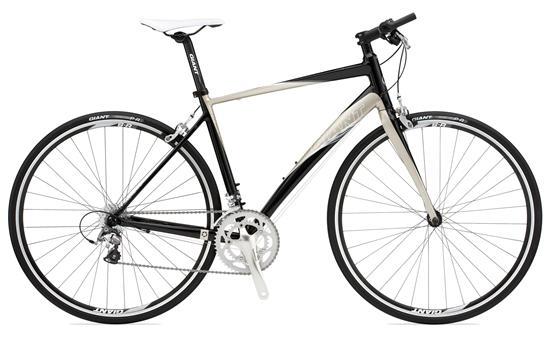

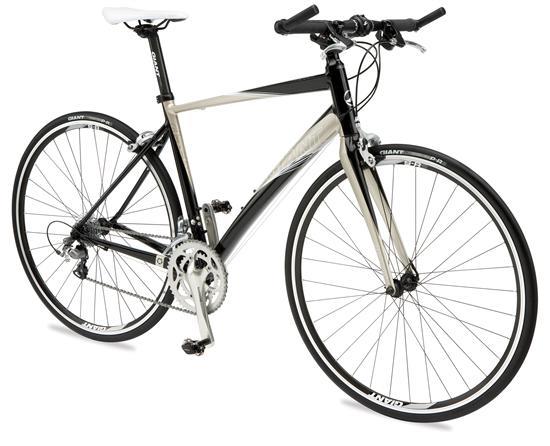

2011 Giant Dash 1

Original specifications: Shimano drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22520
Model year
2011
Category
Road
Original MSRP
$1,100.00
Sizes
XS, S, M, L
Colors
Black/Champagne
In this record
26 specifications · 2 archived images · original MSRP
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Black/Champagne
Frame
Alloy
Original equipment
Shimano

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original buildAlloy · Shimano · 700c wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XSSML

Published colors

Black/Champagne
View 4 archived size/color combinations
SizeColor
XSBlack/Champagne
SBlack/Champagne
MBlack/Champagne
LBlack/Champagne

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialAlloy
ForkAdvanced-Grade Composite
Fork MaterialAlloy, aero crown

Drivetrain

Component GroupShimano
ShiftersShimano R440
Front DerailleurShimano R440
Rear DerailleurShimano 105 5700
CranksetShimano Tiagra, 34/50 teeth
Bottom BracketShimano External
CassetteShimano HG50
Rear Cogs9-speed, 12 - 25 teeth
ChainShimano HG73
PedalsNot included

Brakes

BrakesShimano Dual Pivot, Long Reach brakes, Tektro alloy levers

Cockpit & Contact Points

HandlebarGiant Connect flat
Handlebar ExtensionsNot included
StemGiant Connect
SaddleSelle royal seta W
SeatpostGiant Connect SL Composite, 30.9mm diameter

Wheels & Tires

HubsFormula
RimsGiant P-R2, 24-hole/28-hole
SpokesSapim Race, 14/15ga. (2.0/1.8mm)
Front Tire700 x 25c Giant P-R3 Flat Guard
Rear Tire700 x 25c Giant P-R3 Specific
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes50/34T · 12–25T · 9-speed
Lowest1.36:1 Highest4.17:1 Total range306%
Estimated speed At 90 RPM Lowest gear9.6 mph Highest gear29.5 mph

Rear tire: 700C×25.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Seatpost · Original
Giant Connect SL Composite

30.9mm diameter

Retailer offers
Chain · Original
Shimano HG73
Cassette · Original
Shimano HG50
More parts (4)Fewer parts
Front tire · Original
700 x 25c Giant P-R3 Flat Guard Replacement search: 700cx25 bicycle tire Before ordering: Check rim type and tire clearance.
Saddle · Original
Selle royal seta W
Crankset · Original
Shimano Tiagra

34/50 teeth

Rear derailleur · Original
Shimano 105 5700 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 700 x 25c Giant P-R3 Flat Guard, Rear: 700 x 25c Giant P-R3 Specific
Drivetrain
9-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Shimano External
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Advanced-Grade Composite · Alloy, aero crown

Archived: Group: Shimano · Shifters: Shimano R440 · Front derailleur: Shimano R440 · Rear derailleur: Shimano 105 5700 · Crankset: Shimano Tiagra, 34/50 teeth · Bottom bracket: Shimano External · Cassette: Shimano HG50 · Rear cogs: 9-speed, 12 - 25 teeth · Chain: Shimano HG73

Archived: Brakes: Shimano Dual Pivot, Long Reach brakes, Tektro alloy levers

Archived: Wheel size: 700c wheels · Rims: Giant P-R2, 24-hole/28-hole · Hubs: Formula · Front tire: Front: 700 x 25c Giant P-R3 Flat Guard, Rear: 700 x 25c Giant P-R3 Specific

Controls and contact points

Archived: Handlebar: Giant Connect flat · Stem: Giant Connect · Seatpost: Giant Connect SL Composite, 30.9mm diameter · Saddle: Selle royal seta W · Pedals: Not included
