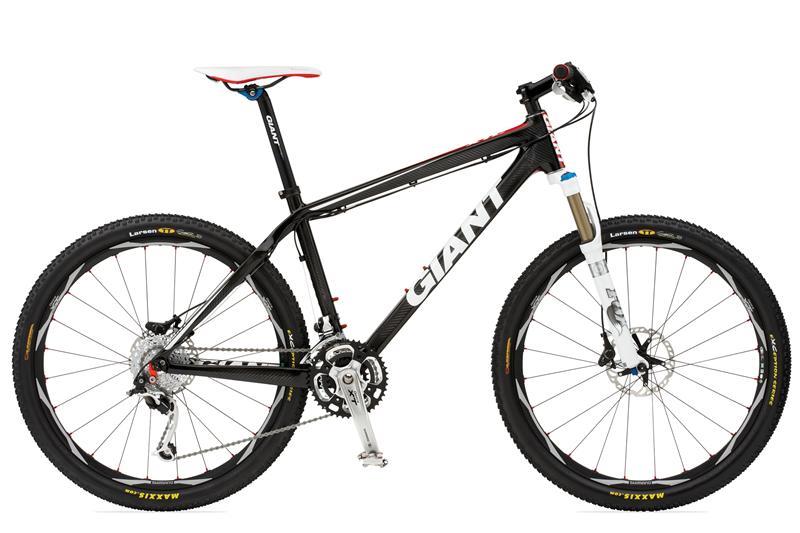

2010 Giant XTC Advanced

Mountain bike, front suspension bicycle from the Velopedia specification archive.

Original MSRP
$3,200.00
Sizes
XS, S, M, L, XL
Colors
Composite/Red
Archive ID
19537

Frameset

Frame ConstructionCarbon
Frame MaterialGiant Advanced composite
ForkFox 32 F100 RL, 100mm travel
Fork MaterialSingle
Rear ShockN/A

Drivetrain

Component GroupShimano XT
ShiftersShimano XT Rapidfire
Front DerailleurShimano XT, clamp on
Rear DerailleurShimano XT Shadow Top Normal
CranksetShimano XT, 22/32/44 teeth
Bottom BracketShimano XT external
CassetteSRAM PC-970
Rear Cogs9-speed, 11 - 34 teeth
ChainShimano HG73
PedalsN/A

Brakes

BrakesShimano XT 160mm brakes, Shimano XT levers

Cockpit & Contact Points

Headset1 1/8"
HandlebarGiant Contact flat 31.8mm
Handlebar ExtensionsNot included
StemGiant Connect SL
SaddleFi'zi:k Tundra w/Manganese rails
SeatpostGiant Connect SL, 30.9mm diameter

Wheels & Tires

HubsFront: Shimano XT WH-M775 Centerlock Disc, Rear: Shimano XT WH-M775 Centerlcok Disc
RimsShimano XT WH-M775, 24-hole
SpokesShimano stainless, 2.0/1.5/2.0 straight pull
Front Tire26 x 2.0" Maxxis Larsen TT
Wheel Size26" wheels
