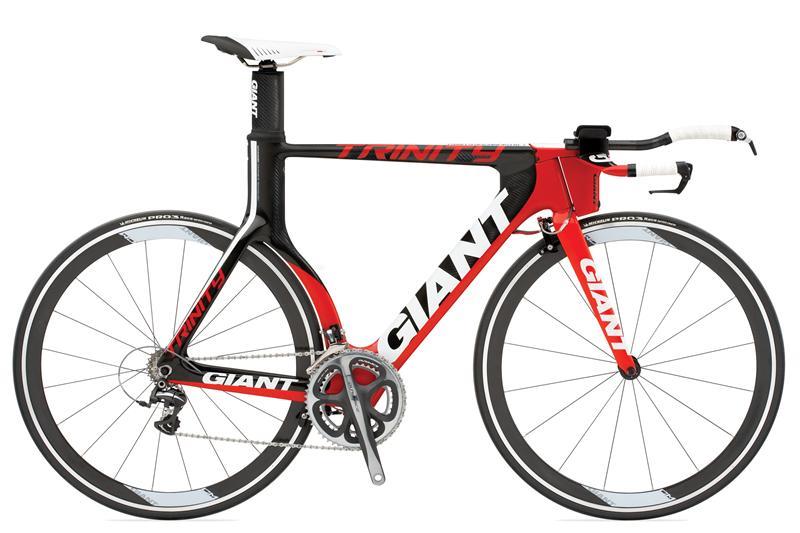

2010 Giant Trinity Advanced SL 1

Original specifications: Shimano Dura-Ace 7900 drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #19414
Model year
2010
Category
Road
Original MSRP
$5,900.00
Sizes
XS, S, M, L
Colors
Red/Composite
In this record
26 specifications · archived image · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
Red/Composite
Frame
Giant Advanced SL aero composite
Original equipment
Shimano Dura-Ace 7900

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildGiant Advanced SL aero composite · Shimano Dura-Ace 7900 · 700c wheels

Historical catalog variants

Archived sizes and colors

4 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XSSML

Published colors

Red/Composite
View 4 archived size/color combinations
SizeColor
XSRed/Composite
SRed/Composite
MRed/Composite
LRed/Composite

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionCarbon
Frame MaterialGiant Advanced SL aero composite
ForkGiant Advanced SL composite
Fork MaterialCarbon fiber/aluminum steerer

Drivetrain

Component GroupShimano Dura-Ace 7900
ShiftersShimano Dura-Ace TT
Front DerailleurShimano Dura-Ace 7900, braze-on
Rear DerailleurShimano Dura-Ace 7900
CranksetShimano Dura-Ace 7900, 39/53 teeth
Bottom BracketShimano Dura-Ace Internal Press fit
CassetteShimano Dura Ace
Rear Cogs10-speed, 11 - 23 teeth
ChainShimano Dura-Ace 7900
PedalsNot included

Brakes

BrakesGiant Trinity Specific brakes, Shimano Dura-Ace 7900 levers

Cockpit & Contact Points

HeadsetIntegrated
HandlebarGiant Trinity Advanced SL Composite ICS
Handlebar ExtensionsGiant Trinity Advanced SL Composite ICS
StemGiant Trinity Advanced SL 3-position
SaddleFi'zi:k Arione Tri 2 k:ium
SeatpostGiant Vector SL Composite Trinity 78-74.71

Wheels & Tires

HubsGiant/Formula Sealed Bearing
RimsGiant Carbon Matrix SL Aero 42mm, 16-hole/20-hole
SpokesSapim Race stainless, 14/15ga. (2.0/1.8mm) butted and bladed
Front Tire700 x 23c Michelin Pro3 Race
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes53/39T · 11–23T · 10-speed
Lowest1.70:1 Highest4.82:1 Total range284%
Estimated speed At 90 RPM Lowest gear11.9 mph Highest gear33.9 mph

Uses front tire 700C×23; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 23c Michelin Pro3 Race
Chain · Original
Shimano Dura-Ace 7900
Bottom bracket · Original
Shimano Dura-Ace Internal Press fit
More parts (5)Fewer parts
Saddle · Original
Fi'zi:k Arione Tri 2 k:ium
Crankset · Original
Shimano Dura-Ace 7900

39/53 teeth

Front derailleur · Original
Shimano Dura-Ace 7900

braze-on

Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Rear derailleur · Original
Shimano Dura-Ace 7900 Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shifters · Original
Shimano Dura-Ace TT Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 23c Michelin Pro3 Race
Drivetrain
10-speed
Bottom bracket / shell
Shimano Dura-Ace Internal Press fit
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon · Fork: Giant Advanced SL composite · Carbon fiber/aluminum steerer

Archived: Group: Shimano Dura-Ace 7900 · Shifters: Shimano Dura-Ace TT · Front derailleur: Shimano Dura-Ace 7900, braze-on · Rear derailleur: Shimano Dura-Ace 7900 · Crankset: Shimano Dura-Ace 7900, 39/53 teeth · Bottom bracket: Shimano Dura-Ace Internal Press fit · Cassette: Shimano Dura Ace · Rear cogs: 10-speed, 11 - 23 teeth · Chain: Shimano Dura-Ace 7900

Archived: Brakes: Giant Trinity Specific brakes, Shimano Dura-Ace 7900 levers

Archived: Wheel size: 700c wheels · Rims: Giant Carbon Matrix SL Aero 42mm, 16-hole/20-hole · Hubs: Giant/Formula Sealed Bearing · Front tire: 700 x 23c Michelin Pro3 Race

Controls and contact points

Archived: Headset: Integrated · Handlebar: Giant Trinity Advanced SL Composite ICS · Stem: Giant Trinity Advanced SL 3-position · Seatpost: Giant Vector SL Composite Trinity 78-74.71 · Saddle: Fi'zi:k Arione Tri 2 k:ium · Pedals: Not included
