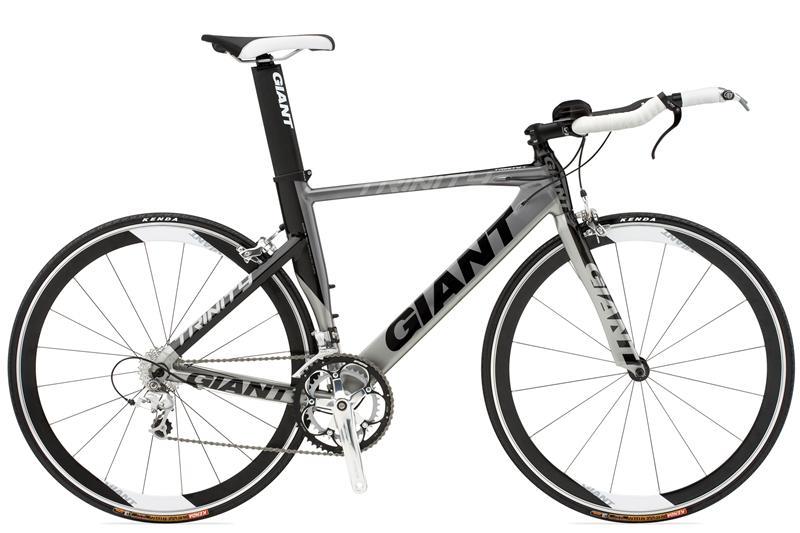

2010 Giant Trinity 1
Road race & triathlon bicycle from the Velopedia historical specification archive.
- Original MSRP
- $1,300.00
- Sizes
- XS, S, M, L
- Colors
- Black/Dark Silver/Light Silver
- Archive ID
- 19417
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum, Aero |
| Fork | Giant Advanced composite |
| Fork Material | Carbon fiber/aluminum steerer |
| Rear Shock | N/A |
Drivetrain
| Component Group | Triathlon Mix |
|---|---|
| Shifters | Shimano 9-spd TT |
| Front Derailleur | Shimano Sora, braze-on |
| Rear Derailleur | Shimano Sora |
| Crankset | FSA Vero ISIS, 39/53 teeth |
| Bottom Bracket | FSA Poerdrive, external |
| Cassette | SRAM PG-950 |
| Rear Cogs | 10-speed, 11 - 26 teeth |
| Chain | Shimano HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Tektro R710 brakes, Giant Trinity- aluminum levers |
|---|
Cockpit & Contact Points
| Headset | Integrated |
|---|---|
| Handlebar | Giant Connect SL 31.8 base bar |
| Handlebar Extensions | Vision Tech Trimax |
| Stem | Giant Connect |
| Saddle | Giant Unity Performance TRI, men's |
| Seatpost | Giant Alloy Aero 3-position |
Wheels & Tires
| Hubs | Formula Sealed Bearing |
|---|---|
| Rims | Giant Alloy SL Aero 42mm, 16-hole/20-hole |
| Spokes | Sapim Race stainless, 14/15ga. (2.0/1.8mm) butted and bladed |
| Front Tire | 700 x 23c Kenda Kriterium |
| Wheel Size | 700c wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
