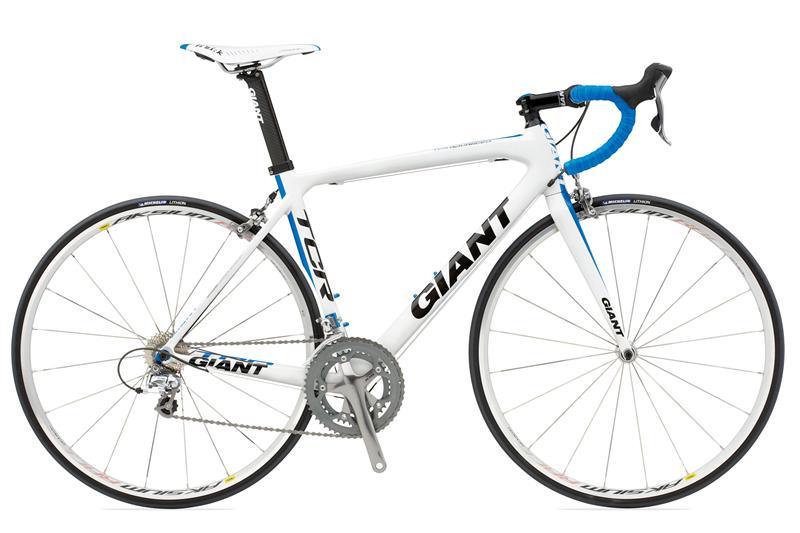

2010 Giant TCR Advanced 3
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $2,300.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors
- White/Team Blue
- Archive ID
- 19411
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | Giant Advanced composite |
| Fork | Giant Advanced composite |
| Fork Material | Carbon fiber/aluminum steerer |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano 105 |
|---|---|
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105, braze-on |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano 105, 39/53 teeth |
| Bottom Bracket | Shimano Dura-Ace Internal Press fit |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 25 teeth |
| Chain | Shimano 105 |
| Pedals | Not included |
Brakes
| Brakes | Shimano 105 brakes, Shimano 105 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8"- 1 1/4" Tapered Threadless |
|---|---|
| Handlebar | Giant Contact 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect SL |
| Saddle | Fi'zi:k Arione w/manganese rails |
| Seatpost | Giant Vector composite |
Wheels & Tires
| Hubs | Mavic Aksium Race |
|---|---|
| Rims | Mavic Aksium Race, 20-hole |
| Spokes | Mavic stainless steel, straight pull, bladed |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 23c Michelin Lithion 2 |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
