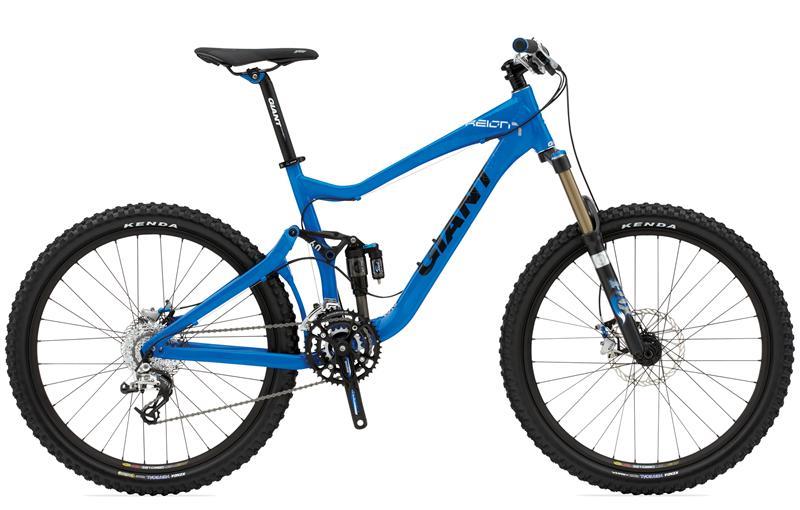

2010 Giant Reign 1
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,500.00
- Sizes
- XS, S, M, L, XL
- Colors
- Blue
- Archive ID
- 19526
Frameset
| Frame Material | ALUXX SL aluminum |
|---|---|
| Fork | Fox 32 Float RL w/15QR Thru Axle, 150mm travel |
| Rear Shock | Fox DHX 4.0 Air, 6" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X-7 Trigger w/Matchmaker |
| Front Derailleur | Shimano SLX, clamp-on |
| Rear Derailleur | SRAM X.9 |
| Crankset | Race Face Evolve XC, 22/32/44 teeth |
| Bottom Bracket | Race Face X-Type |
| Cassette | SRAM PG-980 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Avid Elixer R w/185mm rotor front/Avid Elixer R w/160mm rotor rear brakes, Avid Elixer R levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated cartridge |
|---|---|
| Handlebar | Giant Connect SL low-rise 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect SL |
| Saddle | Fi'zi:k Nisene Wing Flex w/ Manganese rails |
| Seatpost | Giant Connect SL, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Giant Tracker sealed disc w/15mm axle, Rear: Shimano Deore |
|---|---|
| Rims | Mavic EN-321, 32-hole |
| Spokes | Stainless steel, 14/15ga. (2.0/1.8mm) butted |
| Front Tire | 26 x 2.35 Kenda Nevegal folding |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
