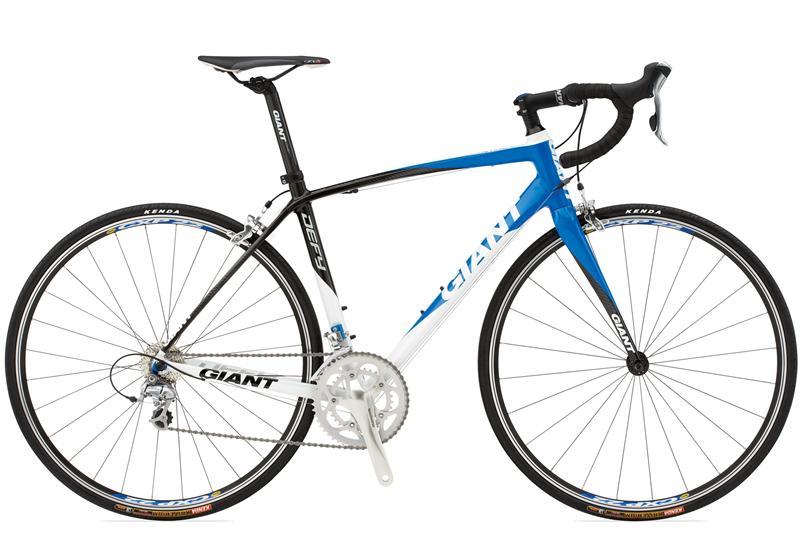

2010 Giant Defy Alliance 1
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $1,400.00
- Sizes
- XS, S, M, M/L, L, XL
- Colors
- Blue/Composite/White
- Archive ID
- 19423
Frameset
| Frame Construction | Bonded/monocoque |
|---|---|
| Frame Material | Giant Alliance Composite/AL |
| Fork | Giant Advanced composite |
| Fork Material | Carbon fiber/aluminum steerer |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Tiagra |
|---|---|
| Shifters | Shimano 105 |
| Front Derailleur | Shimano Tiagra, braze-on |
| Rear Derailleur | Shimano Tiagra |
| Crankset | FSA Gossamer Mega Exo, 34/50 teeth |
| Bottom Bracket | FSA Mega EXO, external |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 12 - 27 teeth |
| Chain | Shimano HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Tektro TK-R710 brakes, Shimano Tiagra levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8"- 1 1/4" Tapered Threadless |
|---|---|
| Handlebar | Giant Connect SL 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect |
| Saddle | Selle Royal Seta M |
| Seatpost | Giant Connect SL, 30.9mm diameter |
Wheels & Tires
| Hubs | Formula sealed |
|---|---|
| Rims | Mavic CXP 22, 24-hole/28-hole |
| Spokes | Sapim Race stainless steel, 14/15ga. (2.0/1.8mm) butted |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 25c Kenda Kriterium |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
