Velopedia Bicycle Archive

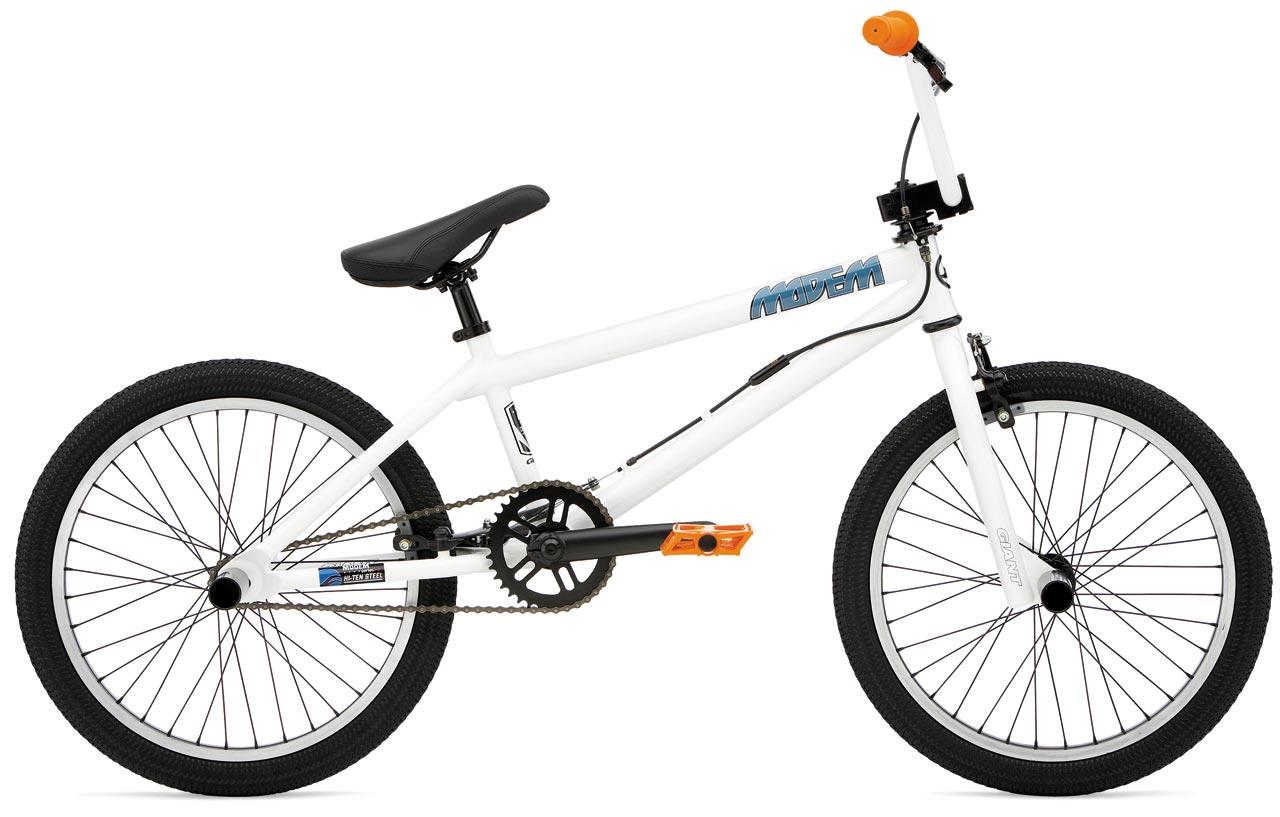

2009 Giant Modem
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $330.00
- Colors
- Black, White
- Archive ID
- 16830
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hi-tensile steel |
| Fork Material | Hi-tensile steel/chromoly steerer, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 3 Piece Tubular Chromoly, 36 teeth |
| Bottom Bracket | Retainer Ball |
| Rear Cogs | 1-speed, 13 teeth |
| Chain | KMC Z510 |
| Pedals | Alloy Platform |
Brakes
| Brakes | Tektro 907A U-brake brakes, Tektro alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" |
|---|---|
| Handlebar | Steel 8" rise |
| Handlebar Extensions | Not included |
| Stem | Front Load alloy |
| Saddle | Giant Ultralight |
| Seatpost | Chromoly micro-adjust, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: Alloy, 14mm axle, Rear: Alloy, 14mm alxe |
|---|---|
| Rims | Alloy, 36-hole |
| Spokes | Stainless |
| Front Tire | 20 x 2.10" Kenda Kiniption |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
