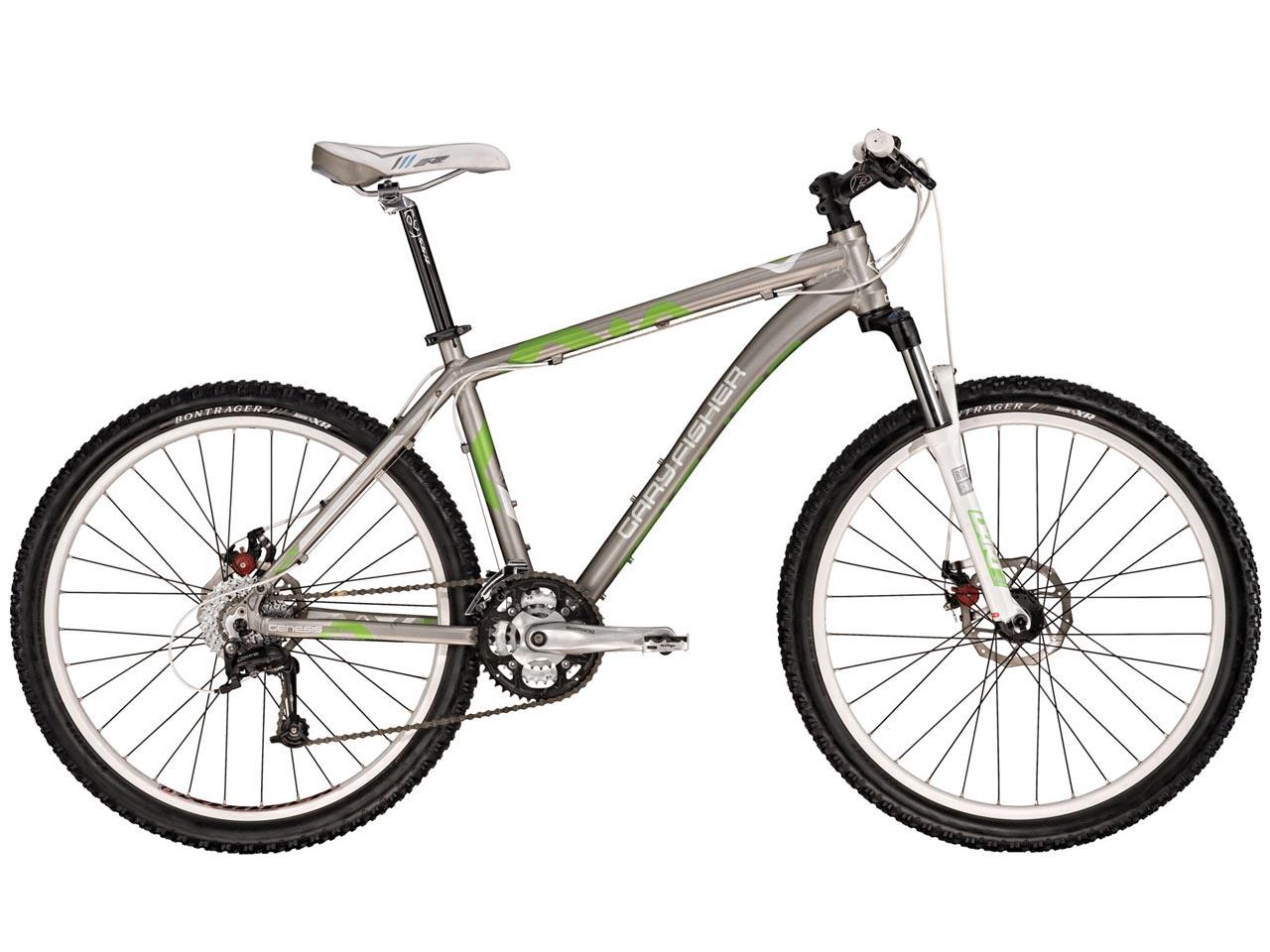

2010 Gary Fisher Marlin Disc GS
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $859.99
- Sizes
- XS (13"), SM (15.5"), MD (17.5")
- Colors
- Matte Platinum
- Archive ID
- 20561
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Gold Series 6061 T6 AL, butted & Hydroformed |
| Fork | RockShox Dart 3, 100mm travel |
| Fork Material | G2 46mm offset |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, clamp on 34.9mm |
| Rear Derailleur | Shimano Deore M592 Shadow |
| Crankset | Shimano M442, 22/32/44 teeth |
| Bottom Bracket | VP BC82 cartridge |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Pedals | Wellgo ATB |
Brakes
| Brakes | Avid BB5 w/160mm rotor |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" semi-ntegrated |
|---|---|
| Handlebar | Bontrager SSR Riser, 620mm x 25mm |
| Handlebar Extensions | Not included |
| Stem | Bontrager SSR, 10d rise |
| Saddle | Bontrager Race |
| Seatpost | Bontrager SSR, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano M475 disc |
|---|---|
| Rims | Bontrager Ranger Disc, 32-hole |
| Front Tire | Front: 26 x 2.25" Bontrager Jones XR, Rear: 26 x 2.20" Bontrager Jones XR |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
