Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

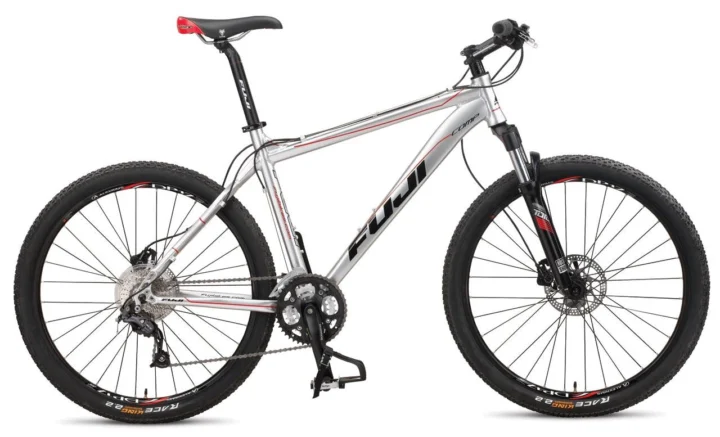

2006 Fuji Tahoe Comp
Original specifications: Shimano Deore · 9-speed · mechanical rear derailleur · 26" wheels · 28.7 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #94398- Model year
- 2006
- Category
- Mountain
- Original MSRP
- $750.00
- Sizes
- 15", 17", 19", 20.5", 22"
- Colors
- Plutonium
- Weight
- 28.7 lb
- In this record
- 24 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2006 archived details
- Published colors
- Plutonium
- Frame
- Fuji Altair 2
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFuji Altair 2 · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Fuji Altair 2 |
| Fork | Suntour XCM, 80mm travel |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore Dual Control |
| Front Derailleur | Shimano Deore, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore |
| Crankset | Truvativ Five-D, 22/32/44 teeth |
| Bottom Bracket | Sealed cartridge |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC HG-73, 1/2 x 3/32" |
| Pedals | Wellgo MTB w/clips and straps |
Brakes
| Brakes | Tektro Aquila mechanical disc brakes, Shimano Deore Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated VP |
|---|---|
| Handlebar | Aluminum riser |
| Stem | Aluminum threadless |
| Saddle | WTB Rocket V Comp |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Aluminum disc |
|---|---|
| Rims | Alex DP-17, 32-hole |
| Spokes | Stainless steel, straight gauge |
| Front Tire | 26 x 2.10" Continental Explorer |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC HG-73
1/2 x 3/32"
26 x 2.10" Continental Explorer
Continental Explorer on eBaySponsored links
Wellgo MTB w/clips and straps
More parts (4)Fewer parts
WTB Rocket V Comp
Shimano Deore
Shimano Deore Dual Control
Alex DP-17
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.10" Continental Explorer
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Suntour XCM, 80mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Suntour XCM, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore Dual Control · Front derailleur: Shimano Deore, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore · Crankset: Truvativ Five-D, 22/32/44 teeth · Bottom bracket: Sealed cartridge · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC HG-73, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro Aquila mechanical disc brakes, Shimano Deore Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex DP-17, 32-hole · Hubs: Aluminum disc · Front tire: 26 x 2.10" Continental Explorer
Controls and contact points
Archived: Headset: 1 1/8" integrated VP · Handlebar: Aluminum riser · Stem: Aluminum threadless · Seatpost: Aluminum micro-adjust · Saddle: WTB Rocket V Comp · Pedals: Wellgo MTB w/clips and straps
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
