Lowest0.69:1
Highest2.91:1
Total range423%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.35; rear size isn’t listed.
Velopedia Bicycle Archive

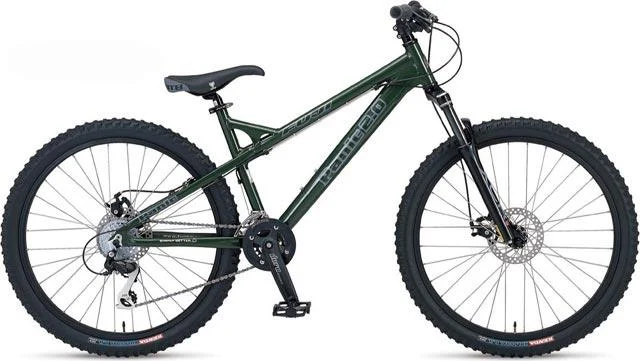

2006 Fuji Panic 2.0
Original specifications: Shimano Deore · 9-speed · mechanical rear derailleur · 26" wheels · 32.9 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #94437- Model year
- 2006
- Category
- Mountain
- Original MSRP
- $900.00
- Sizes
- 14", 16", 18"
- Colors
- Putty
- Weight
- 32.9 lb
- In this record
- 24 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2006 archived details
- Published colors
- Putty
- Frame
- Fuji Altair 1
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFuji Altair 1 · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Fuji Altair 1 |
| Fork | SR Suntour Duro D, 100mm travel |
| Fork Material | Aluminum/steel, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM Attack |
| Front Derailleur | Shimano Deore, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore |
| Crankset | Truvativ Hussefelt w/ bashguar, 22/32 teeth |
| Bottom Bracket | Truvativ Howitzer |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | KMC HG-73, 1/2 x 3/32" |
| Pedals | Welgo alloy platform |
Brakes
| Brakes | Tektro Aquila mechanical disc brakes, Tektro ML-570 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA |
|---|---|
| Handlebar | Truvativ LE |
| Stem | Truvativ Hussefelt |
| Saddle | WTB Pure V Sport |
| Seatpost | Fuji Alloy Micro-Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Fuji Sealed Bearing DISC |
|---|---|
| Rims | Alex DM-24, 32-hole |
| Spokes | Stainless steel, straight gauge |
| Front Tire | 26 x 2.35" Kenda Kolossal DH |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Fuji Alloy Micro-Adjust
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
KMC HG-73
1/2 x 3/32"
More parts (3)Fewer parts
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.35" Kenda Kolossal DH
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Truvativ Howitzer
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: SR Suntour Duro D, 100mm travel · Aluminum/steel, single crown
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour Duro D, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: SRAM Attack · Front derailleur: Shimano Deore, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore · Crankset: Truvativ Hussefelt w/ bashguar, 22/32 teeth · Bottom bracket: Truvativ Howitzer · Rear cogs: 9-speed, 11 - 32 teeth · Chain: KMC HG-73, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Tektro Aquila mechanical disc brakes, Tektro ML-570 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex DM-24, 32-hole · Hubs: Fuji Sealed Bearing DISC · Front tire: 26 x 2.35" Kenda Kolossal DH
Controls and contact points
Archived: Headset: 1 1/8" threadless FSA · Handlebar: Truvativ LE · Stem: Truvativ Hussefelt · Seatpost: Fuji Alloy Micro-Adjust, 27.2mm diameter · Saddle: WTB Pure V Sport · Pedals: Welgo alloy platform
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
