Lowest1.25:1
Highest4.33:1
Total range347%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×25; rear size isn’t listed.
Velopedia Bicycle Archive

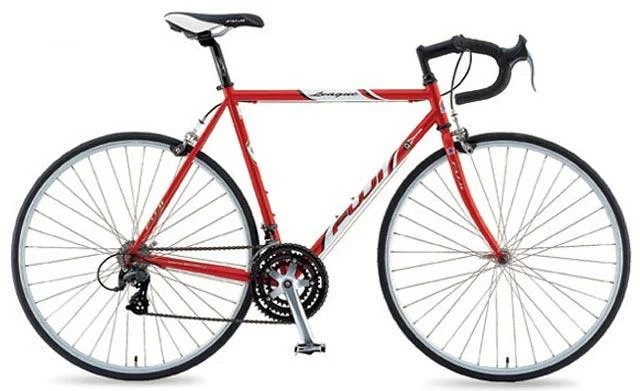

2005 Fuji League
Original specifications: Road Mix Triple drivetrain · 700c wheels · 24.7 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #93349- Model year
- 2005
- Category
- Road
- Sizes
- S, M, L, XL
- Colors
- Gloss Black
- Weight
- 24.7 lb
- In this record
- 25 specifications · archived image
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2005 archived details
- Published colors
- Gloss Black
- Frame
- Fuji Altair 1
- Original equipment
- Road Mix Triple
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildFuji Altair 1 · Road Mix Triple · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Fuji Altair 1 |
| Fork | Fuji |
| Fork Material | Chromoly, aero crown |
Drivetrain
| Component Group | Road Mix Triple |
|---|---|
| Shifters | Shimano SL-R440 Flat Bar |
| Front Derailleur | Shimano FD-2203, bottom-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano RD-2200 |
| Crankset | RPM Forged Aluminum, 30/42/52 teeth |
| Bottom Bracket | Sealed cartridge |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 12 - 24 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Wellgo road |
Brakes
| Brakes | Aluminum dual pivot brakes, aluminum front/aero road rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless |
|---|---|
| Handlebar | Aluminum |
| Stem | Fuji Adjustable Road |
| Saddle | Fuji Road Sport |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Front: aluminum, Q/R, Rear: aluminum cassette |
|---|---|
| Rims | Alex R-500 |
| Spokes | Stainless steel |
| Front Tire | 700 x 25c Kenda |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
1/2 x 3/32"
Replacement search: 8-speed bicycle chain Before ordering: Check chain width and length.
700 x 25c Kenda
Replacement search: 700cx25 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (2)Fewer parts
Alex R-500
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 25c Kenda
- Drivetrain
- 8-speed
- Bottom bracket / shell
- Sealed cartridge · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Fuji · Chromoly, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Road Mix Triple · Shifters: Shimano SL-R440 Flat Bar · Front derailleur: Shimano FD-2203, bottom-pull/clamp-on 31.8mm · Rear derailleur: Shimano RD-2200 · Crankset: RPM Forged Aluminum, 30/42/52 teeth · Bottom bracket: Sealed cartridge · Rear cogs: 8-speed, 12 - 24 teeth · Chain: 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Aluminum dual pivot brakes, aluminum front/aero road rear levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Alex R-500 · Hubs: Front: aluminum, Q/R, Rear: aluminum cassette · Front tire: 700 x 25c Kenda
Controls and contact points
Archived: Headset: 1 1/8" threadless · Handlebar: Aluminum · Stem: Fuji Adjustable Road · Seatpost: Aluminum micro-adjust · Saddle: Fuji Road Sport · Pedals: Wellgo road
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
