Lowest0.82:1
Highest3.69:1
Total range448%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2; rear size isn’t listed.
Velopedia Bicycle Archive

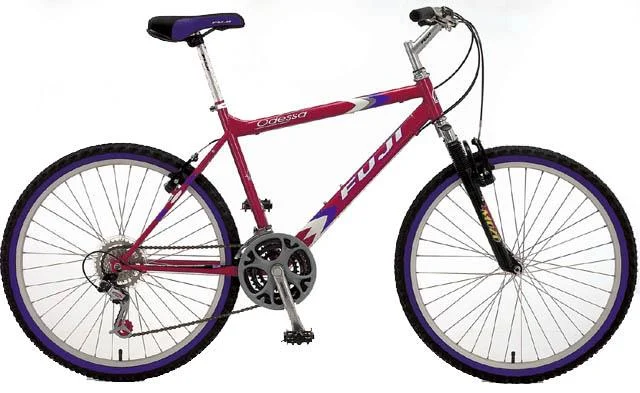

2001 Fuji Odessa
Original specifications: Mountain Mix drivetrain · 26" wheels · 31.5 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #90984- Model year
- 2001
- Category
- Mountain
- Original MSRP
- $240.00
- Sizes
- 13, 15, 17, 19, 20.5, 22, womens 17", womens 19"
- Colors
- Blue, Purple, Red
- Weight
- 31.5 lb
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2001 archived details
- Published colors
- Blue, Purple, Red
- Frame
- Custom PowerOval tubing
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCustom PowerOval tubing · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Custom PowerOval tubing |
| Fork | Suntour M6300, 3.0" travel |
| Fork Material | Aluminum, aero crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano EF-33-8 |
| Front Derailleur | Shimano Tourney, bottom-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Tourey Megarange |
| Crankset | Shimano Tourney, 28/38/48 teeth |
| Bottom Bracket | 124.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Chain | KMC UG-50, 1/2 x 1/8" |
| Pedals | Wellgo resin |
Brakes
| Brakes | Aluminum linear-pull brakes, Shimano EZ-fire levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Dia-Compe STS |
|---|---|
| Handlebar | Fuji aluminum ATB |
| Handlebar Extensions | Not included |
| Stem | Fuji aluminum ATB |
| Saddle | Fuji Duraflex Crator ATB saddle |
| Seatpost | Aluminum micro-adjust, 26.6mm diameter |
Wheels & Tires
| Hubs | Aluminum, Q/R |
|---|---|
| Rims | Weinmann CN-520, 36-hole |
| Spokes | Stainless steel, 14g |
| Front Tire | 26 x 2.00" |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 565 mm |
| Head-tube angle | 70° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 420 mm |
| Wheelbase | 1047 mm |
| Fork offset / rake | 38 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
26 x 2.00"
Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.
Aluminum linear-pull brakes
Shimano EZ-fire levers
Shimano Tourney
28/38/48 teeth
More parts (1)Fewer parts
Aluminum micro-adjust
26.6mm diameter
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00"
- Drivetrain
- 7-speed
- Seatpost diameter
- 26.6 mm
- Bottom bracket / shell
- 124.5mm spindle · 68mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Suntour M6300, 3.0" travel · Aluminum, aero crown
Suspension
Evaluate the suspension →Archived: Fork: Suntour M6300, 3.0" travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano EF-33-8 · Front derailleur: Shimano Tourney, bottom-pull/clamp-on 28.6mm · Rear derailleur: Shimano Tourey Megarange · Crankset: Shimano Tourney, 28/38/48 teeth · Bottom bracket: 124.5mm spindle · Rear cogs: 7-speed, 13 - 34 teeth · Chain: KMC UG-50, 1/2 x 1/8"
Brakes
Inspect the brakes →Archived: Brakes: Aluminum linear-pull brakes, Shimano EZ-fire levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Weinmann CN-520, 36-hole · Hubs: Aluminum, Q/R · Front tire: 26 x 2.00"
Controls and contact points
Archived: Headset: 1 1/8" threadless Dia-Compe STS · Handlebar: Fuji aluminum ATB · Stem: Fuji aluminum ATB · Seatpost: Aluminum micro-adjust, 26.6mm diameter · Saddle: Fuji Duraflex Crator ATB saddle · Pedals: Wellgo resin
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
