Lowest0.93:1
Highest4.18:1
Total range450%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×32; rear size isn’t listed.
Velopedia Bicycle Archive

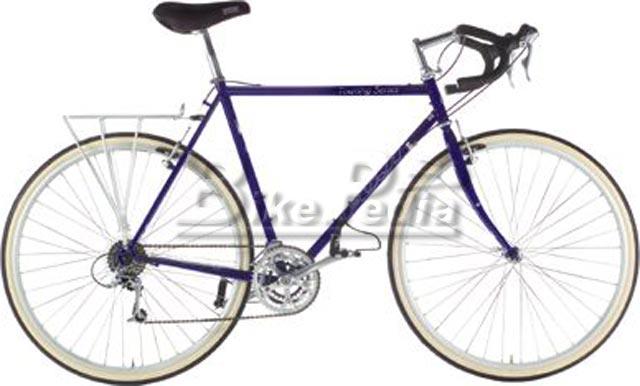

1998 Fuji Touring Series
Original specifications: Shimano RSX drivetrain · 700c wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #75307- Model year
- 1998
- Category
- Touring
- Original MSRP
- $699.99
- Sizes
- 17", 19", 21", 23", 25"
- Colors
- Colorado Blue
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 4 other years
Browse other years
Compare side by side
Identification clues
1998 archived details
- Published colors
- Colorado Blue
- Frame
- True Temper AVR, double-butted
- Original equipment
- Shimano RSX
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildTrue Temper AVR, double-butted · Shimano RSX · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | True Temper AVR, double-butted |
| Fork | Fuji |
| Fork Material | Chromoly, unicrown crown |
Drivetrain
| Component Group | Shimano RSX |
|---|---|
| Shifters | Shimano RSX STI Dual Control |
| Front Derailleur | Shimano RSX top-swing, bottom-pull/braze-on |
| Rear Derailleur | Shimano RSX GS |
| Crankset | Shimano RSX, 26/36/46 teeth |
| Bottom Bracket | Sealed cartridge |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 11 - 28 teeth |
| Chain | KMC SS-72, 1/2 x 3/32" |
| Pedals | Aluminum |
Brakes
| Brakes | Shimano STX M-System brakes, Shimano RSX levers |
|---|
Cockpit & Contact Points
| Headset | 1" aluminum |
|---|---|
| Handlebar | Aluminum |
| Stem | Chromoly |
| Saddle | Fuji DuraFlex |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Shimano RSX |
|---|---|
| Rims | Alex aluminum, 32-hole |
| Spokes | Stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 32c Michelin Tracer |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 5 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 565 mm |
| Head-tube angle | 71° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 440 mm |
| Wheelbase | 1055 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
