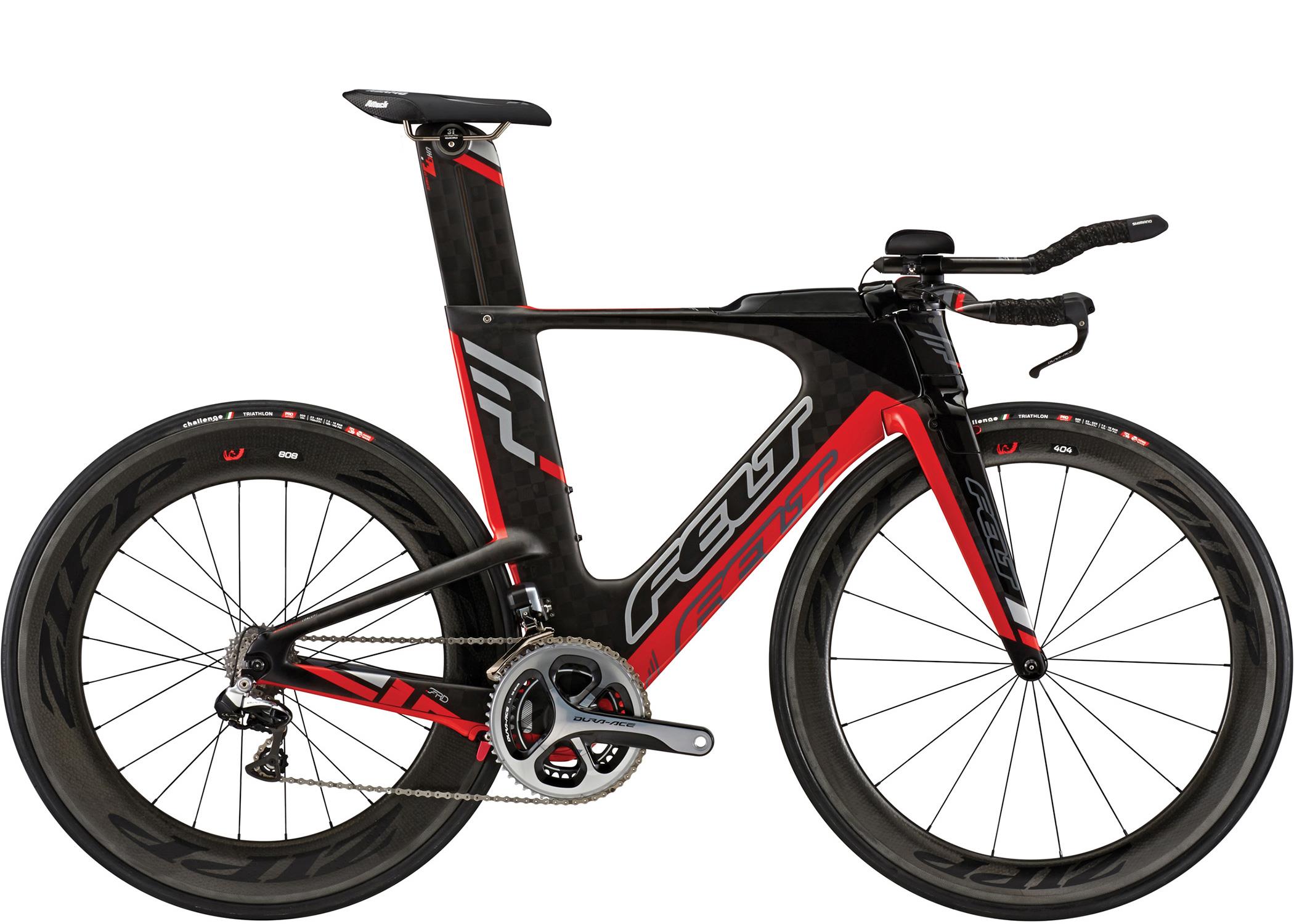

2015 Felt IA FRD

Archived: 2015 Felt IA FRD · Time Trial/Triathlon · Published sizes: 48, 51, 54, 56, 58cm

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Felt Integrated Aero Tri UHC Ultimate + TeXtreme® carbon fiber, MMC w/ InsideOut construction, BB30 & carbon horizontal dropouts w/ integrated chain tensioners, internal cable routing (mechanical compatible) · Fork: Felt Dagger UHC Ultimate + TeXtreme® carbon fiber monocoque construction, 1.25" carbon fiber steer, brake covers, blades, dropouts, crown · Carbon Fiber

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Shimano Dura Ace Di2 · Shifters: Shimano Tri Di2, 2 Button · Front derailleur: Shimano Dura-Ace Di2 braze-on · Rear derailleur: Shimano Dura-Ace Di2 · Crankset: Shimano Dura-Ace 52/36T 48 - 51cm = 165mm 54 - 56cm = 170mm 58cm = 172.5mm · Bottom bracket: FSA Ceramic BB30 w/ 24mm spindle reducers · Rear cogs: Shimano Dura-Ace, 11-25T · Chain: Shimano Dura-Ace 11-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Felt Aero Brake System w/ integrated cover

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Rims: Zipp 404 Firecrest carbon clincher (front); Zipp 808 Firecrest carbon clincher (rear) · Hubs: Zipp 404 Firecrest, Zipp 808 Firecrest, 11-speed · Front tire: Challenge Triathlon Pro Clinchers, 700 x 23c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA IS2 integrated, 1.125" ceramic sealed cartridge bearing w/ Felt compression device · Handlebar: Felt Dagger UHC Ultimate + Nano base bar w/ Felt ƒ-Bend carbon fiber 3-position extensions · Stem: Felt Dagger · Seatpost: Felt Vibration Reducing Aero Tri UHC Ultimate + TeXtreme® carbon fiber w/ 3T DiffLock™ Comfort Module internals, 300mm length · Saddle: ISM Attack Ti

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
