Velopedia Bicycle Archive

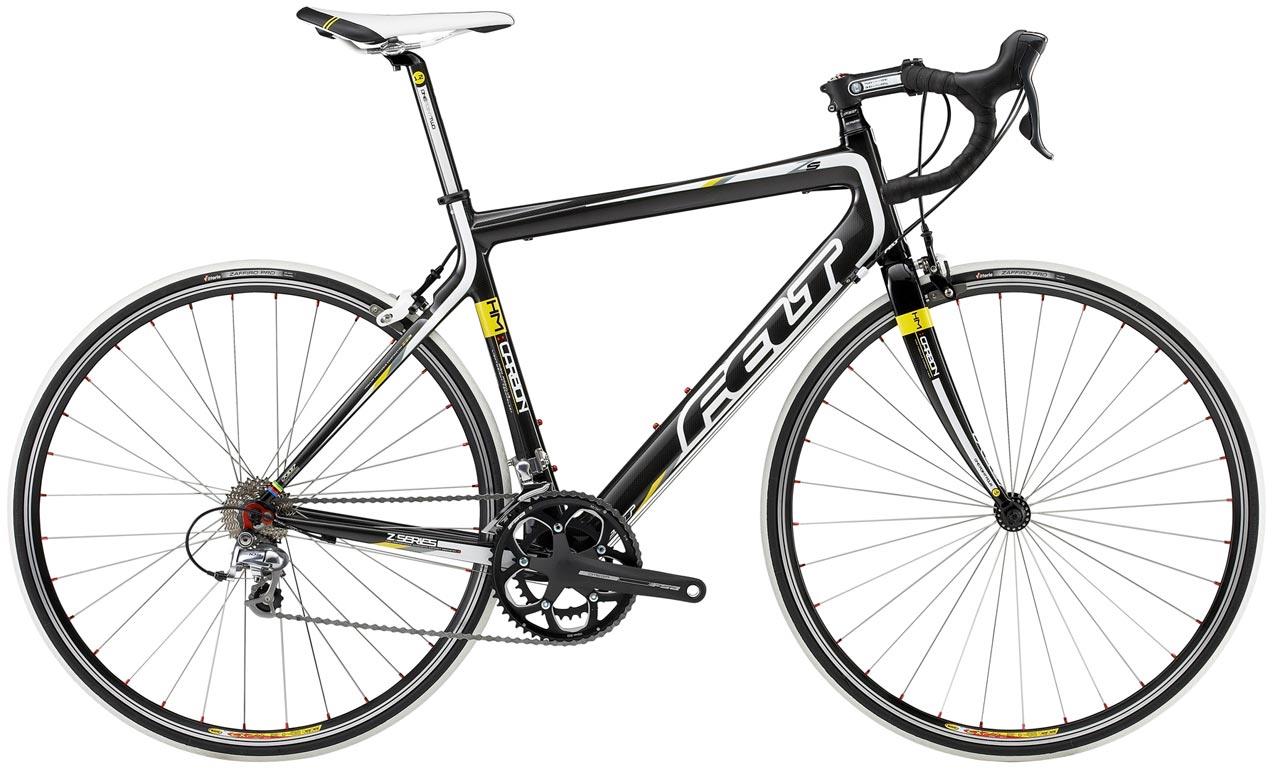

2010 Felt Z5
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $1,999.00
- Sizes
- 51, 54, 56, 58, 61cm
- Colors
- Gloss Clear
- Weight
- 18.5
- Archive ID
- 20772
Frameset
| Frame Construction | TIG-welded/bonded |
|---|---|
| Frame Material | FELT High Modulus Carbon |
| Fork | FELT 1.4 HM |
| Fork Material | Carbon w/carbon steerer |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano 105 Mix |
|---|---|
| Shifters | Shimano 105 STI |
| Front Derailleur | Shimano 105, braze-on |
| Rear Derailleur | Shimano 105 |
| Crankset | FSA Omega Compact, 34/50 teeth |
| Bottom Bracket | FSA Mega EXO |
| Cassette | Shimano |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Chain | Shimano 10 Speed |
| Pedals | N/A |
Brakes
| Brakes | Dual pivot brakes, Shimano 105 STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA |
|---|---|
| Handlebar | FELT 2.3 6061 ALU, ergo bend |
| Handlebar Extensions | Not included |
| Stem | FELT 2.1 Adjustable 6061 3D Forged |
| Saddle | FELT 2.2 Anatomic Road Saddle w/ hollow cromo rails |
| Seatpost | FELT 1.2 Carbon, 27.2mm diameter |
Wheels & Tires
| Hubs | Felt aluminum sealed |
|---|---|
| Rims | Mavic CXP 22N, 32-hole |
| Spokes | Stainless steel |
| Spoke Nipples | Alloy |
| Front Tire | 700 x 25c Vittoria Zaffiro Pro |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
