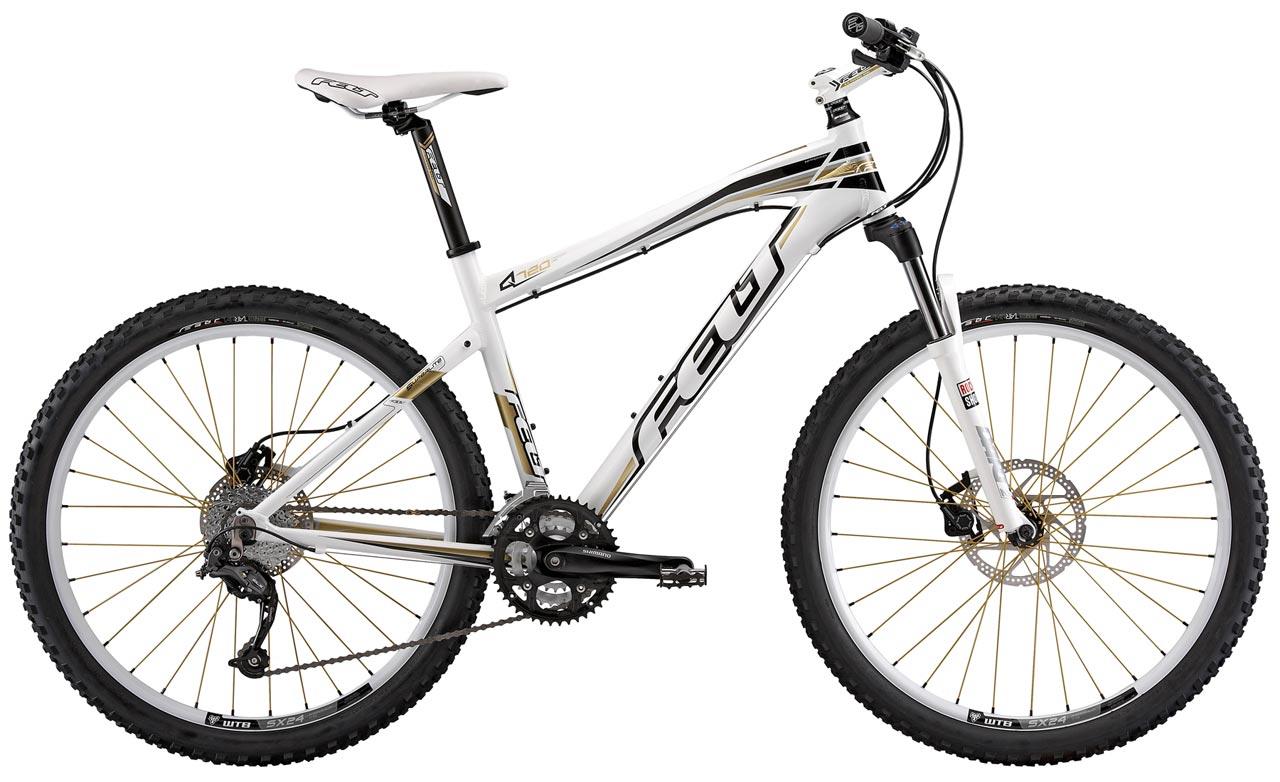

2010 Felt Q720

Original specifications: Shimano SLX · 9-speed rear derailleur · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #20826
Model year
2010
Category
Mountain
Original MSRP
$999.00
Sizes
13.5", 15.5", 17.5", 19.5", 21.5"
Colors
Super White
In this record
27 specifications · archived image · original MSRP
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
Super White
Frame
Felt 6061 Double Butted Aluminum, Fully Hydroformed Top and Down Tube
Original equipment
Shimano mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildFelt 6061 Double Butted Aluminum, Fully Hydroformed Top and Down Tube · Shimano mix · 26" wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

13.5"15.5"17.5"19.5"21.5"

Published colors

Super White
View 5 archived size/color combinations
SizeColor
13.5"Super White
15.5"Super White
17.5"Super White
19.5"Super White
21.5"Super White

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialFelt 6061 Double Butted Aluminum, Fully Hydroformed Top and Down Tube
ForkRockShox Dart 2 w/lockout, 100mm travel
Fork MaterialSingle

Drivetrain

Component GroupShimano mix
ShiftersShimano Deore Rapidfire
Front DerailleurShimano Deore
Rear DerailleurShimano SLX Shadow RD-M662
CranksetShimano FC-M442, 22/34/44 teeth
Bottom BracketShimano BB ES25 Octalink
CassetteSRAM PG-950
Rear Cogs9-speed, 11 - 32 teeth
ChainSRAM PC 951
PedalsMTB alloy

Brakes

BrakesShimano M486 w/180mm Rotor front/Shimano M486 w/160mm Rotor rear brakes, Shimano M486 hydraulic levers

Cockpit & Contact Points

Headset1 1/8" semi-ntegrated
HandlebarAluminum riser
Handlebar ExtensionsNot included
StemFelt melt forged 1 pc.
SaddleFelt RXC Comfort
SeatpostFELT Alloy Micro Adjust, 27.2mm diameter

Wheels & Tires

HubsShimano RM-65 Centerlock disc
RimsWTB SX-24, 32-hole
SpokesStainless, 14/15ga. (2.0/1.8mm)
Spoke NipplesBrass
Front Tire26 x 2.10" Felt THC XC
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/34/22T · 11–32T · 9-speed
Lowest0.69:1 Highest4.00:1 Total range582%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
SRAM PC 951
Cassette · Original
SRAM PG-950
More parts (8)Fewer parts
Front tire · Original
26 x 2.10" Felt THC XC Replacement search: 26x2.1 bicycle tire Before ordering: Check rim type and tire clearance.
Bottom bracket · Original
Shimano BB ES25 Octalink
Crankset · Original
Shimano FC-M442

22/34/44 teeth

Front derailleur · Original
Shimano Deore
Rear derailleur · Original
Shimano SLX Shadow RD-M662
Shifters · Original
Shimano Deore Rapidfire
Rims · Original
WTB SX-24

32-hole

Hubs · Original
Shimano RM-65 Centerlock disc

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" Felt THC XC
Drivetrain
9-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Shimano BB ES25 Octalink
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: RockShox Dart 2 w/lockout, 100mm travel · Single

Archived: Fork: RockShox Dart 2 w/lockout, 100mm travel

Archived: Group: Shimano mix · Shifters: Shimano Deore Rapidfire · Front derailleur: Shimano Deore · Rear derailleur: Shimano SLX Shadow RD-M662 · Crankset: Shimano FC-M442, 22/34/44 teeth · Bottom bracket: Shimano BB ES25 Octalink · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 11 - 32 teeth · Chain: SRAM PC 951

Archived: Brakes: Shimano M486 w/180mm Rotor front/Shimano M486 w/160mm Rotor rear brakes, Shimano M486 hydraulic levers

Archived: Wheel size: 26" wheels · Rims: WTB SX-24, 32-hole · Hubs: Shimano RM-65 Centerlock disc · Front tire: 26 x 2.10" Felt THC XC

Controls and contact points

Archived: Headset: 1 1/8" semi-ntegrated · Handlebar: Aluminum riser · Stem: Felt melt forged 1 pc. · Seatpost: FELT Alloy Micro Adjust, 27.2mm diameter · Saddle: Felt RXC Comfort · Pedals: MTB alloy
