At a glance
Archive #2022752- Model year
- 2012
- Category
- Cruiser
- Sizes
- One Size
- Colors
- Black Satin, Mint, Pink, Red Satin, White
- In this record
- 17 specifications · 5 archived images
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2012 archived details
- Published colors
- Black Satin, Mint, Pink, Red Satin, White
- Frame
- Classic Hi-Ten Steel
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildClassic Hi-Ten Steel
Frameset
| Frame Material | Classic Hi-Ten Steel |
|---|---|
| Fork | Unicrown Steel |
Drivetrain
| Shifters | Shimano Revo twist, 7spd |
|---|---|
| Rear Derailleur | Shimano TX-35 |
| Crankset | Classic Steel 1-pc |
| Bottom Bracket | 9-pc loose ball |
| Cassette | 22t |
| Chain | KMC 410 Rustproof |
| Pedals | Resin Barefoot |
Brakes
| Brakes | Linear pull |
|---|
Cockpit & Contact Points
| Headset | 1" Steel Threaded |
|---|---|
| Handlebar | Electra Bullhorn |
| Stem | Alloy Classic |
| Saddle | Electra Comfort w/ Elastomers |
| Seatpost | Classic Steel Pillar |
Wheels & Tires
| Hubs | Steel 36h KT Coaster 36h |
|---|---|
| Front Tire | Classic Knobby 2.125 |
No specifications match. Try a component name or clear your search.
Gearing
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Linear pull
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Classic Knobby 2.125
- Drivetrain
- 7-speed
- Bottom bracket / shell
- 9-pc loose ball
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Classic Hi-Ten Steel · Fork: Unicrown Steel
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Revo twist, 7spd · Rear derailleur: Shimano TX-35 · Crankset: Classic Steel 1-pc · Bottom bracket: 9-pc loose ball · Cassette: 22t · Chain: KMC 410 Rustproof
Brakes
Inspect the brakes →Archived: Brakes: Linear pull
Wheels and tires
Check wheels and tires →Archived: Hubs: Steel 36h KT Coaster 36h · Front tire: Classic Knobby 2.125
Controls and contact points
Archived: Headset: 1" Steel Threaded · Handlebar: Electra Bullhorn · Stem: Alloy Classic · Seatpost: Classic Steel Pillar · Saddle: Electra Comfort w/ Elastomers · Pedals: Resin Barefoot
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

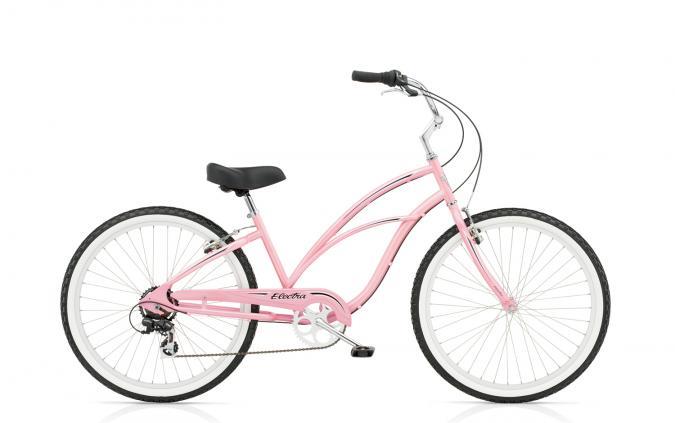

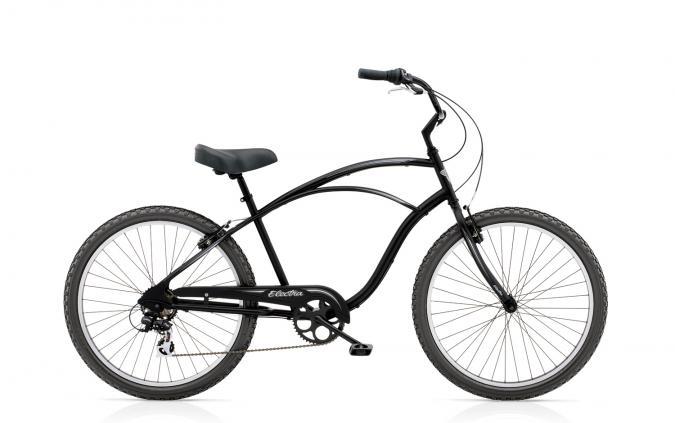

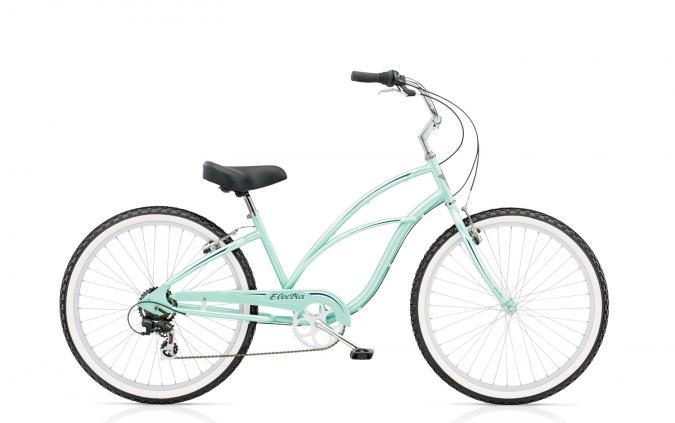

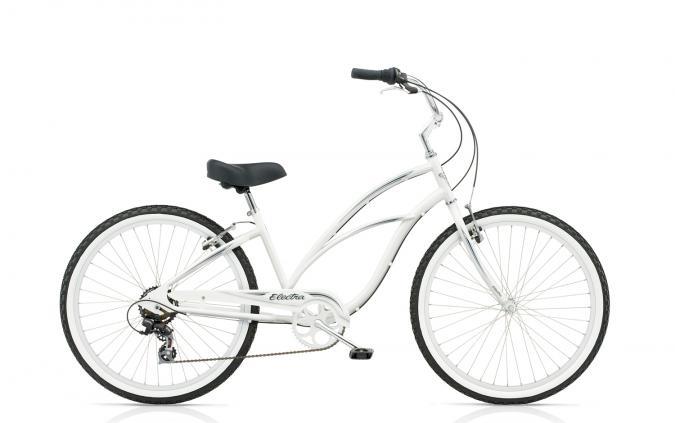

Gallery5 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
