Velopedia Bicycle Archive

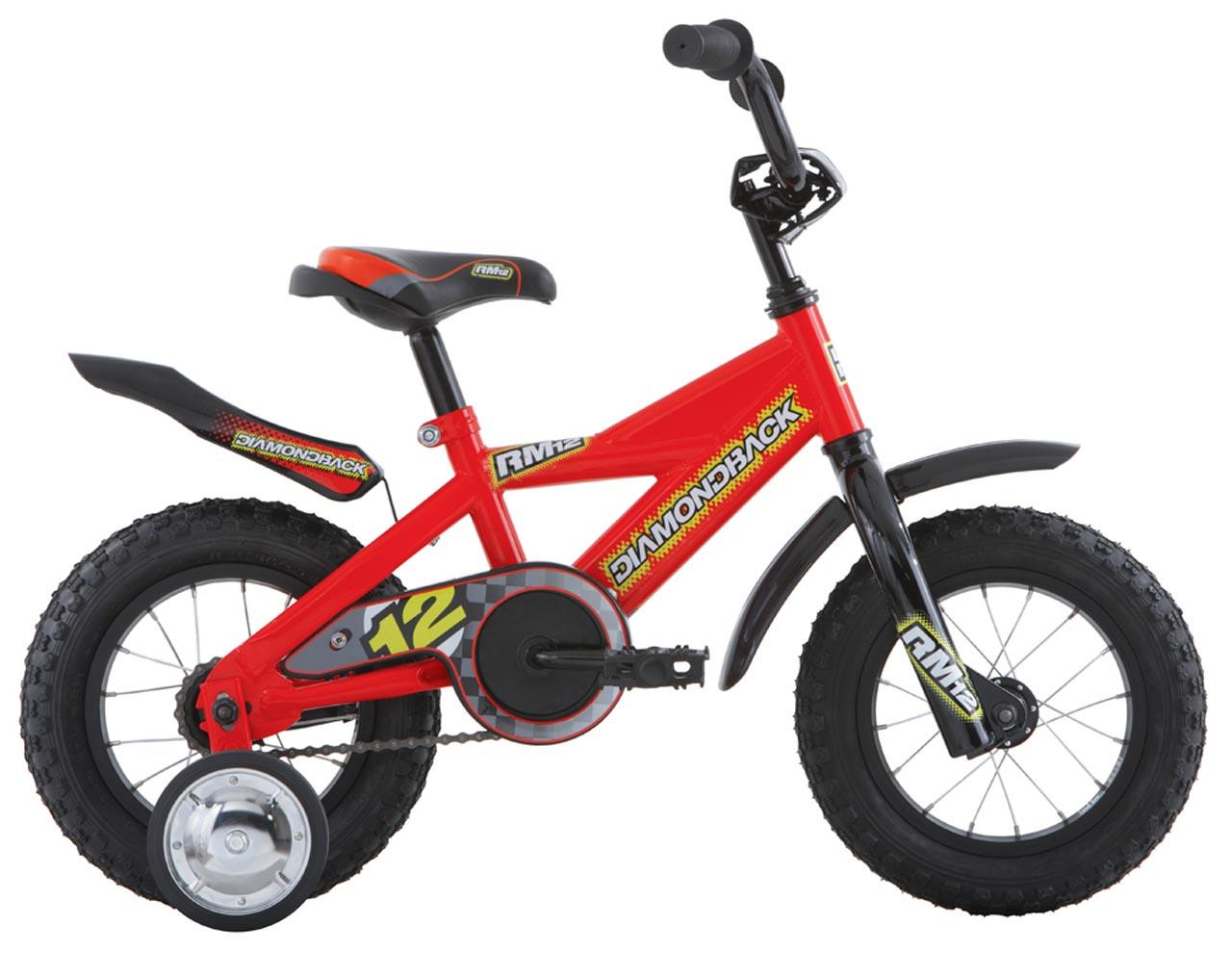

2009 Diamondback RM 12
Juvenile bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Colors
- Gloss Red
- Archive ID
- 18976
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | High-Tensile steel |
|---|
| Fork Material | High-tensile steel, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | Juvenile Mix |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | 1-piece, 28 teeth |
|---|
| Bottom Bracket | Loose ball |
|---|
| Cassette | Cog |
|---|
| Rear Cogs | 1-speed, 18 teeth |
|---|
| Pedals | Resin platform |
|---|
Cockpit & Contact Points
| Headset | 1" Threaded |
|---|
| Handlebar | Hi-Ten 2-piece |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Steel quill |
|---|
| Saddle | DB Jr Padded |
|---|
| Seatpost | Steel pillar, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Nutted, Rear: Nutted Coaster |
|---|
| Rims | Alex R-1000, 16-hole |
|---|
| Spokes | 14ga. (2.0mm) |
|---|
| Front Tire | 12 x 2.125" Comp III style |
|---|
| Wheel Size | 12" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
