Velopedia Bicycle Archive

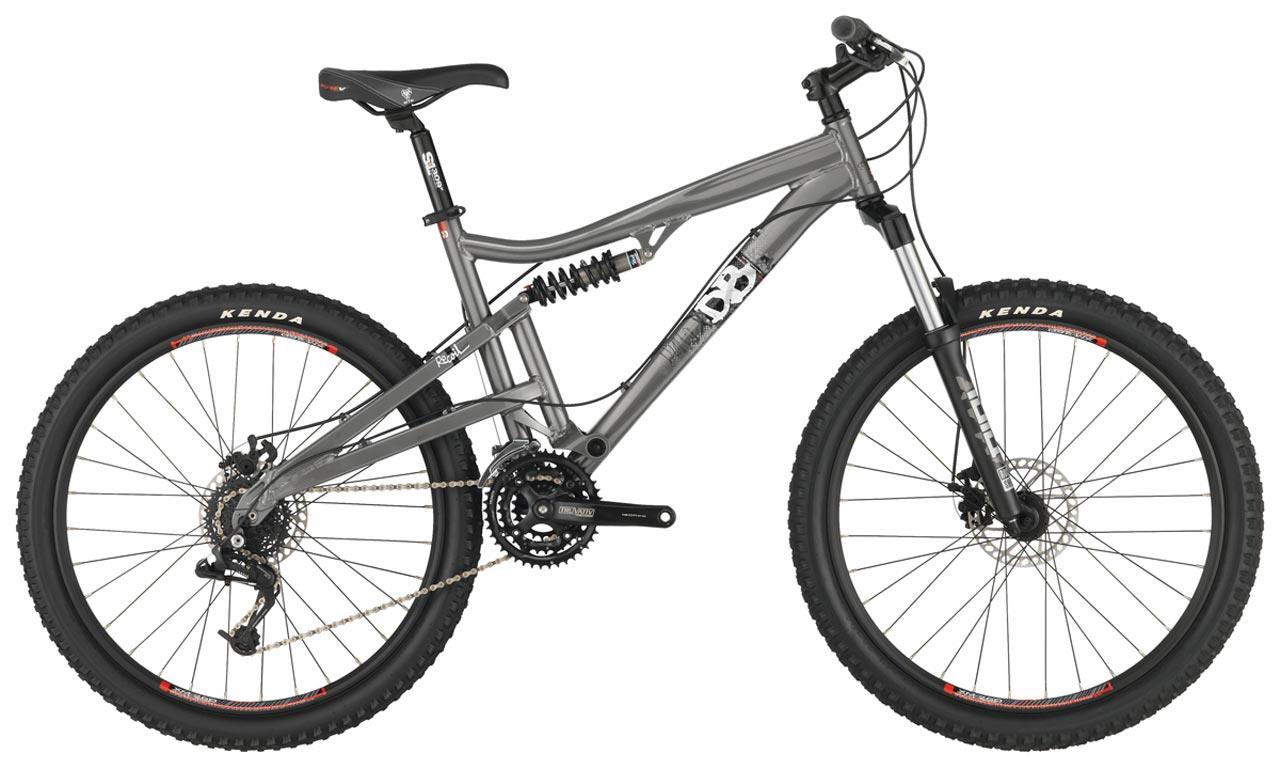

2009 Diamondback Recoil
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large
- Colors
- Mercury Gray
- Archive ID
- 18917
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | SR Suntour XCT, 75mm travel |
| Fork Material | Single |
| Rear Shock | Tuff Shock Coil, 4" travel |
Drivetrain
| Component Group | SRAM X.4/mix |
|---|---|
| Shifters | SRAM X.4 trigger |
| Front Derailleur | Shimano Altus |
| Rear Derailleur | SRAM X.4 |
| Crankset | SR Suntour XCC-T202, 24/34/42 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | SRAM PG-820 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z82 |
| Pedals | DB Platform |
Brakes
| Brakes | Promax 320 Disc brakes, Tektro alloy w/ adjustable reach levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Aheadset |
|---|---|
| Handlebar | DB SL318b OS Mid Rise |
| Handlebar Extensions | Not included |
| Stem | Avenir 100 31.8mm clamp |
| Saddle | WTB Pure V Sport |
| Seatpost | DB SL309p alloy, 30.9mm diameter |
Wheels & Tires
| Hubs | Alloy disc |
|---|---|
| Rims | Weinmann XM-260 Disc, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.10" Kenda Klaw XT |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
